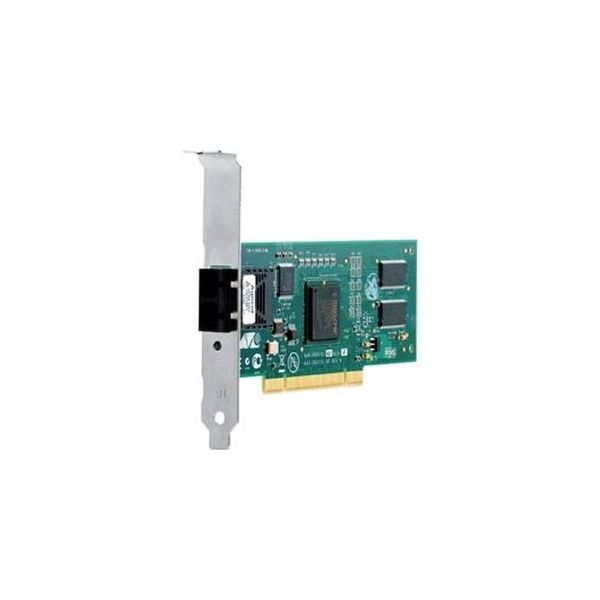

Allied Telesis AT-2911SX/SC-901 netwerkkaart Intern Fiber 1000 Mbit/s

Allied Telesis AT-2911SX/SC-901, Intern, Bedraad, PCI Express, Fiber, 1000 Mbit/s

Niet op voorraad

Fabrikant Allied Telesis
MPN AT-2911SX/SC-901
EAN 0767035196619
€ 152,00 excl. BTW

Allied Telesis AT-2911SX/SC-901 netwerkkaart Intern Fiber 1000 Mbit/s

Allied Telesis AT-2911 Series Network Interface Cards feature a PCI Express (PCIe x1) design, providing the maximum possible bandwidth and bus efficiency while providing the benefits of low power consumption.

High Reliability
The AT-2911 Series Gigabit interface comes with a comprehensive Microsoft Windows utility which performs detailed tests, diagnostics and analysis.

Advanced Manageability
The priority queuing offered by the AT-2911 Series can help users set up the network based on their own needs. The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a profound tool to analyze the interface card and check specific data.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Fibre channel-poorten
1
Vezel-optische connector
SC

Netwerk

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Netwerkstandaard*
IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Fiber ethernet cabling technologie
1000BASE‑ZX
Jumbo Frames ondersteuning
Ja
Quality of Service (QoS)
Ja

Design

Intern*
Ja
LED-indicatoren
Ja
Certificering
UL FCC/EN55022 A TUV EN55024 CE C-TICK VCCI

Energie

Spanning
3.3 V
Stroomverbruik (typisch)
9,2 W

Minimale systeemeisen

Ondersteunt Windows
Ja
Ondersteunt Linux
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-25 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent

Duurzaamheid

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
87 mm
Hoogte
56 mm
Gewicht
700 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Datastroombeheer
Ja
Beheerprotocollen
SNMP
Link/Act LED
Ja
