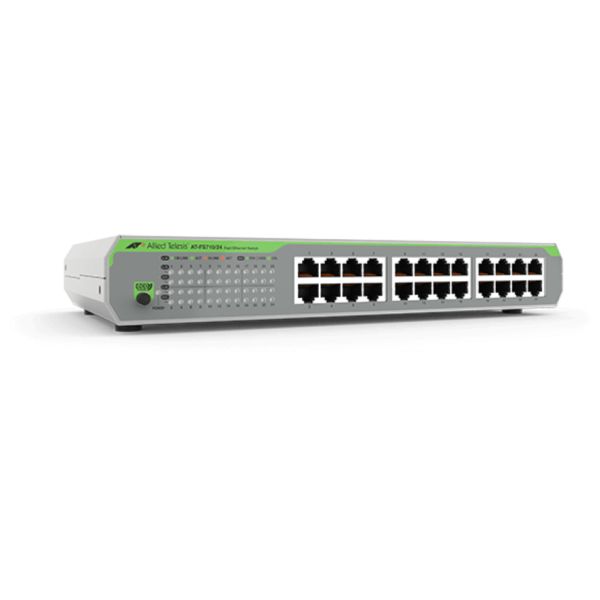

Allied Telesis FS710/24 Unmanaged Fast Ethernet (10/100) Grijs

Allied Telesis FS710/24, Unmanaged, Fast Ethernet (10/100), Full duplex, Rack-montage, Ophangsysteem voor aan de muur

Niet op voorraad

Fabrikant Allied Telesis
MPN AT-FS710/24-50
EAN 0767035211930
€ 195,00 excl. BTW

Allied Telesis FS710/24 Unmanaged Fast Ethernet (10/100) Grijs

Unmanaged Fast Ethernet Switch
The FS710/24 Unmanaged Fast Ethernet switch is an economical and eco-friendly solution, with 24 x 10/100TX ports and an internal PSU.

The FS710 Series switches provide silent operation, with easy set-up and simple connectivity for desktop and small to medium network environments.

High performance
Full auto-negotiating 10/100 ports allow FS710 switches to detect the speed and duplex modes of attached devices, and automatically configure for the best possible performance.

Quality and reliability
Allied Telesis is a world-wide leader in unmanaged Ethernet switches. Shipping more than 250,000 unmanaged switches every year, Allied Telesis offers proven reliability, and industry-recognized quality.

Flexibility
Available in 5, 8, 16 and 24-port models, the FS710 Series provide both internal and external power supply options. Wall, desk and rack-mounting options give users ultimate flexibility in selecting the model that meets their specific physical deployment requirements.

Fanless for silent operation
The FS710 Series are fanless and run silently, making them ideal for the desktop or workspace. Deploy in dusty industrial environments without affecting the expected lifetime.

Simplified installation
Auto-configuration of the FS710 Series minimizes user set-up. Auto-sensing ports enable seamless and simple connectivity between existing 10Mbps Ethernet and 100Mbps Fast Ethernet UTP devices, so installation takes just minutes. All ports support MDI/MDI-X simple connection to other hubs and switches.

Environmentally friendly
FS710 Series eco-friendly switches conform to the Allied Telesis commitment to environmentallyfriendly processes and products. They are designed to minimize power consumption through the use of a high-efficiency power supply and a low-power chipset.
With low power consumption and a reduction in power outside regular work hours, as well as other powersaving features included as standard, the Allied Telesis FS710 Series truly lives up to its eco-friendly reputation.
Not only does this help the planet by reducing the carbon footprint of each switch, it also lowers the Total Cost
of Ownership (TCO) for the user. The device costs less to run, and features improved reliability.
  • Fanless—silent operation
  • Power saving mode
  • EAPOL/BPDU forwarding
  • Flow control
  • Jumbo frames

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja

Data-uitwisseling

Switchingcapaciteit*
4,8 Gbit/s
Throughput
3,57 Mpps
MAC-adrestabel*
8000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
2000
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet buffergeheugen
0,256 MB

Beveiliging

BPDU filtering / bescherming
Ja

Design

Rack-montage*
Ja

Design

Kleur van het product
Grijs
Ophangsysteem voor aan de muur
Ja
Certificering
FCC 15 B / A, VCCI A, FCC A, EN55032 A, CISPR 32 A, RCM A UL60950-1, CSA C22.2 No.60950-1, EN60950-1(TUV), CE RoHS

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
5,3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-25 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Hoogte, in bedrijf
0 - 2000 m

Gewicht en omvang

Breedte
305 mm
Diepte
180 mm
Hoogte
44 mm
Gewicht
1,6 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
