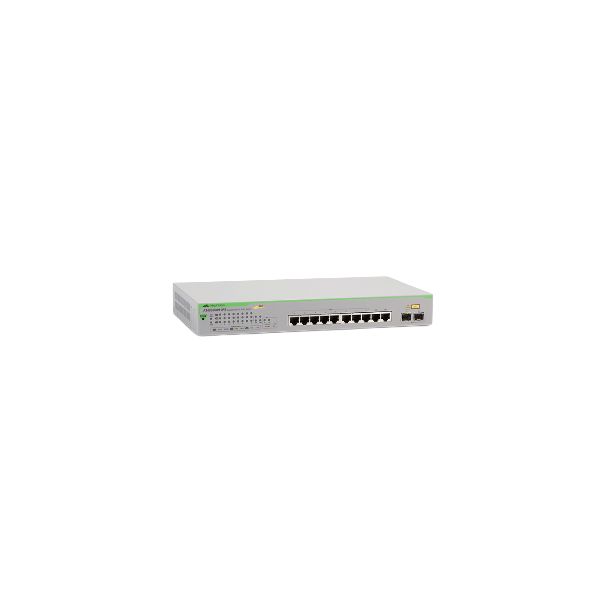

Allied Telesis GS950/10PS Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Groen, Grijs

Allied Telesis GS950/10PS, Managed, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)

Niet op voorraad

Fabrikant Allied Telesis
MPN AT-GS950/10PS
EAN 0767035219158
€ 289,00 excl. BTW

Allied Telesis GS950/10PS Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Groen, Grijs

The Allied Telesis GS950/10PS Gigabit Ethernet WebSmart switch features two Gigabit ports, two SFP combo ports, and eight PoE+ ports delivering up to 30 Watts per port to support video surveillance and security cameras, wireless access points, IP phones and other PoE powered devices. The PoE option eliminates the need for power rewiring and minimizes the clutter of power supplies and adapters in awkward places. Thanks to its compact size, the AT-GS950/10PS is ideal for wiring-constrained and smaller environments such as micro branch offices, classrooms, cafes, and smaller retail stores.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
MIB-ondersteuning
RFC 1213 MIB-II, RFC 1215 TRAP MIB, RFC 1493 Bridge MIB, RFC 2863, RFC 1643, RFC 2618 RMON, RFC 2674 IEEE 802.1Q, RFC 2096 IP

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
10
Aantal Combo SFP-poorten
2
Fibre channel-poorten
2
Vezel-optische connector
SFP
Console port
RJ-45
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring
Ja
Full duplex
Ja
Datastroombeheer
Ja
Rate limiting
Ja
VLAN=ondersteuning
Ja

Optische vezel

Fiber ethernet cabling technologie
100BASE-FX, 1000BASE‑LX, 1000BASE‑SX
Fiber type
Multimode

Data-uitwisseling

Switchingcapaciteit*
20 Gbit/s
Throughput
14,88 Mpps
MAC-adrestabel*
8000 entries

Beveiliging

DHCP-functies
DHCP client, DHCP server

Beveiliging

IGMP snooping
Ja
MAC adres filtering
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Design

Kleur van het product
Groen, Grijs
Certificering
RoHS Eu-RoHS China RoHS WEEE

Prestatie

Intern geheugen
64 MB
Flash memory
16 MB

Energie

AC-ingangsspanning
100 - 240 V
Stroomverbruik (typisch)
13,58 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Totaal Power over Ethernet (PoE)-budget
75 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-25 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Hoogte, in bedrijf
0 - 3048 m

Gewicht en omvang

Breedte
330 mm
Diepte
200 mm
Hoogte
44 mm
Gewicht
1,9 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
