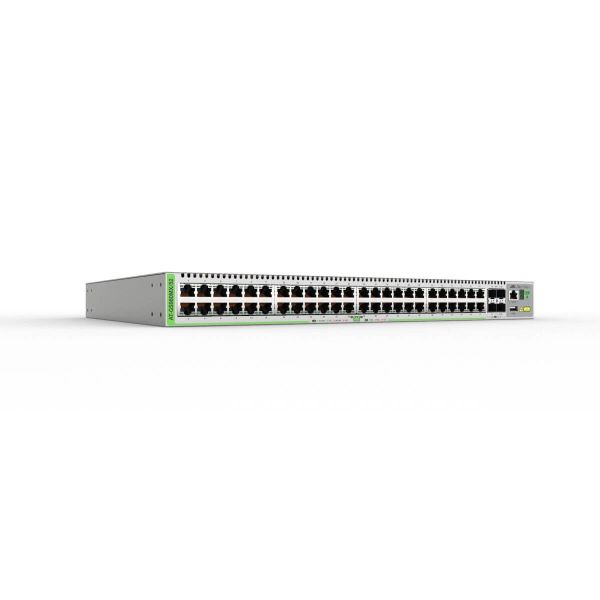

Allied Telesis GS980MX Managed L3 Gigabit Ethernet (10/100/1000) 1U Grijs

Allied Telesis GS980MX, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage, 1U

Nog slechts 5 beschikbaar

Fabrikant Allied Telesis
MPN AT-GS980MX/52-50
EAN 0767035216775
€ 1.727,00 excl. BTW

Allied Telesis GS980MX Managed L3 Gigabit Ethernet (10/100/1000) 1U Grijs

The GS980MX Series of stackable Layer 3 Lite switches feature high capacity, resiliency, and easy management. With Multi-Gigabit ports and Power over Ethernet, and available in both compact and high port density models, they provide an ideal choice for high-speed connectivity at the network edge.
  • AlliedWare Plus™ Enterprise-class operating system
  • Multi-Gigabit ports with PoE+/PoE++ for flexible endpoint connectivity
  • Continuous PoE maximizes endpoint connectivity
  • Active Fiber Monitoring™ (AFM) for secure fiber networks
  • EPSRing™ for fast-failover resilient ring networks

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Traffic-classificatie
Ja
Traffic shaping
Ja
Locatie-instellingen (CLI) configureren
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
48
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP+ modules*
4

Netwerk

Netwerkstandaard*
IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Port mirroring
Ja
Full duplex
Ja
IP routing
Ja
Op beleid gebaseerde routering
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Port-based VLAN, Private VLAN, Voice VLAN
Aantal VLANs
4094

Data-uitwisseling

Switchingcapaciteit*
176 Gbit/s
Verzending snelheid
130,9 Mpps
MAC-adrestabel*
16000 entries
Latentie (10-100 Mbps)
8,29 µs
Latentie (1 Gbps)
7,63 µs
Latentie (10 Gbps)
1,63 µs
Jumbo Frames ondersteuning
Ja

Beveiliging

DHCP-functies
DHCP client, DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
MAC adres filtering
Ja
SSH/SSL support
Ja
Bescherming lus
Ja
BPDU filtering / bescherming
Ja

Beveiliging

Authenticatie
MAC-gebaseerde authenticatie

Multicast-functies

Multicast-ondersteuning
Ja

Protocollen

Beheerprotocollen
SNMP

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Grijs

Prestatie

Type geheugen
DDR3-SDRAM
Intern geheugen
16384 MB
Flash memory
256 MB
Geluidsniveau
42 dB

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
Vermogensverbruik (max)
60 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-25 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 4000 m
Warmtedissipatie
205 BTU/h

Gewicht en omvang

Breedte
441 mm
Diepte
323 mm
Hoogte
44 mm
Gewicht
4,8 kg

Verpakking

Meegeleverde kabels
AC
Breedte verpakking
563 mm
Diepte verpakking
534 mm
Hoogte verpakking
128 mm
Gewicht verpakking
6,8 kg
