Allied Telesis MMCR18 netwerkchassis

Allied Telesis MMCR18, 0 - 50 °C, -20 - 70 °C, 5 - 80 procent, 5 - 80 procent, UL, CSA, TUV, IEC 825-1, CE compliant, FCC Class A, IC Class A

Niet op voorraad

Fabrikant Allied Telesis
MPN AT-MMCR18-60
EAN 0767035211121
€ 758,00 excl. BTW

Allied Telesis MMCR18 netwerkchassis

Media converter flexibility

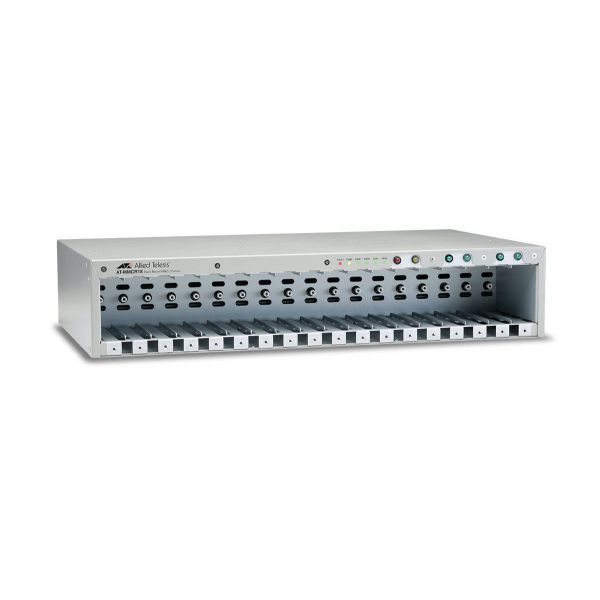

The Allied Telesis MMCR18 is a two rack unit high chassis, which enables network managers to use up to 18 MMC series media converters in a standard 19 inch rack. For redundancy, it can be powered with either one or two Power Supply Units (PSUs).

Power options
The MMCR18 Chassis can be powered with either an AC or DC power supply, eliminating the need for multiple power connections. Allied Telesis also offers an optional hot swappable PSU to eliminate network downtime. The unit saves space in the wiring closet, and minimizes the number of power connections required. Single-unit media converters can be removed from the MMCR18 and deployed individually to accommodate network modifications.

By incorporating a backplane with 18 different power entry modules integrated with the printed circuit board, power is equally distributed among all media converters—whether
using one or two PSUs.

Rack-mount design
Designed with a simple mounting system, each individual media converter is plugged into the back plane and secured with the included mounting rail.The rack-mount chassis includes
six status LEDs on the front panel indicating power, temperature, fan and fault status.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Technische details

Rack-montage
Ja
LED-indicatoren
Ja
Materiaal
Metaal
Aantal sloten
18

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 80 procent
Luchtvochtigheid bij opslag
5 - 80 procent

Certificaten

Veiligheid
UL, CSA, TUV, IEC 825-1, CE compliant
Certificering
FCC Class A, IC Class A

Gewicht en omvang

Breedte
440 mm
Diepte
255 mm
Hoogte
87 mm
Gewicht
4,3 kg
