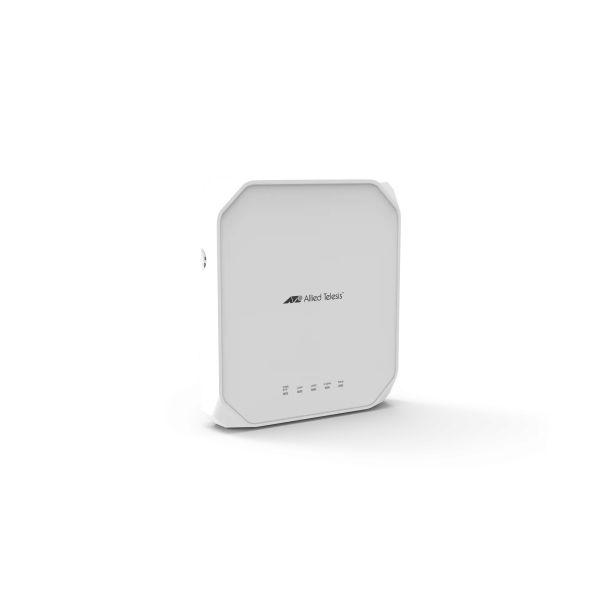

Allied Telesis TQM6602 GEN2 2401,9 Mbit/s Wit Power over Ethernet (PoE)

Allied Telesis TQM6602 GEN2, 2401,9 Mbit/s, 10,100,1000,2500,5000 Mbit/s, 2.4 GHz, IEEE 802.11ax, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u,..., 10/100/1000Base-T(X), Multi User MIMO

Niet op voorraad

Fabrikant Allied Telesis
MPN AT-TQM6602 GEN2-00
EAN 0767035224640
€ 829,00 excl. BTW

Allied Telesis TQM6602 GEN2 2401,9 Mbit/s Wit Power over Ethernet (PoE)

The Allied Telesis Small to Medium Enterprise TQm6602 GEN2 wireless AP features Wi-Fi 6 technology with 4 spatial streams (4x4) to deliver a raw capacity of 3.55 Gigabits. Multi-Gigabit uplink ports ensure maximum wireless network performance and eliminate bottlenecks.

  • 802.11ax (Wi-Fi 6) delivers four times the performance of the previous Wi-Fi standard, enabling immersive-experience applications and future capacity for connected IoT devices
  • Improved capacity and throughput from increased multi-client connectivity intelligence – powered by OFDMA and bi-directional Multi-User MIMO technology
  • Automatically optimized wireless coverage and connectivity for a superior user experience with Autonomous Wave Control™ (AWC)*
  • Plug-and-play network growth using wireless uplinks with AWC Smart Connect*
  • Provide high-speed backbone connectivity with 2 x Multi-Gigabit uplink ports (1/2.5/5G) to remove bottlenecks and maximize data throughput
  • Centralized management and monitoring of your Wi-Fi network with AWC in Vista Manager, or use the web-based GUI for easy standalone AP management
  • Manage and track user devices as they move around the building floor and between floors with the wireless Multi-Dimensional Exchange (MDX) which enables device tracking in real-time and full history for security or auditing purposes
  • Flexible deployment with Virtual APs with Multiple SSIDs
  • Easy user access management with Captive Portal

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Ja
6 GHz*
Nee
Maximale overdrachtssnelheid van gegevens*
2401,9 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,2500,5000 Mbit/s
Frequentieband
2.4 GHz
Netwerkstandaard
IEEE 802.11ax, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Bekabelingstechnologie
10/100/1000Base-T(X)
MIMO
Ja
MIMO-type
Multi User MIMO
Wifi Multimedia (WMM)/(WME)
Ja
Snelle roaming
Ja
VLAN=ondersteuning
Ja
Datastroombeheer
Ja
Draadloze isolatie
Ja
Bandbreedteaansturing
Ja
Airtime Fairness (ATF)
Ja
Quality of Service (QoS)
Ja

Beveiliging

Ondersteunde beveiligingsalgoritmen*
802.1x RADIUS, SSID, WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
MAC adres filtering
Ja
Service Set Identifier (SSID) functies
Hidden SSID
Auto Wireless Distribution System (WDS)
Ja
Remote Authentication Dial-In User Service (RADIUS)
Ja

Protocollen

DHCP client
Ja
Beheerprotocollen
SNMPv1, v2c, v3

Beheerfuncties

Web-gebaseerd management
Ja
Syslog
Ja
Upgraden van firmware mogelijk
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
2

Energie

Power over Ethernet (PoE)*
Ja
AC-ingangsspanning
100 - 240 V
Stroomverbruik (typisch)
13 W
Vermogensverbruik (max)
16,9 W

Design

Plaatsing*
Muur
Kleur van het product*
Wit
Bevestigingsmogelijkheid voor kabelslot
Ja
Kabelslot sleuf type
Kensington
LED-indicatoren
Ja

Antenne

Soort antenne*
Intern
Type antennerichting
Omni-directioneel
Antenne versterkingsniveau (max)
5,93 dBi

Gewicht en omvang

Breedte
200 mm
Diepte
45 mm
Hoogte
240 mm
Gewicht
1,2 kg

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-25 - 70 °C
Luchtvochtigheid bij opslag
5 - 95 procent
Hoogte, in bedrijf
0 - 3048 m

Duurzaamheid

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
Federal Communications Commission (FCC)
