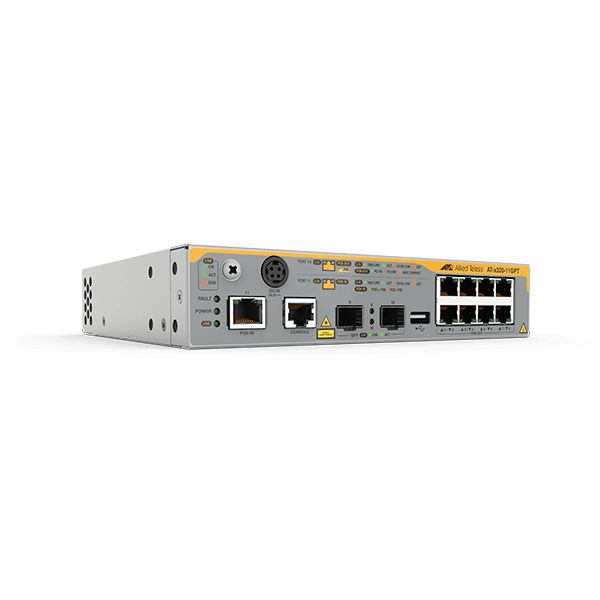

Allied Telesis AT-x320-11GPT-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grijs

Allied Telesis AT-x320-11GPT-50, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Niet op voorraad

Fabrikant Allied Telesis
MPN AT-X320-11GPT-50
EAN 0767035216065
€ 1.228,00 excl. BTW
4,5 · 4,0 · Gratis verzending vanaf €250
Omschrijving
De Allied Telesis x320 Series of Gigabit Layer 3 PoE pass-through en PoE++ (AT-x320-10GH) switches bieden een indrukwekkende reeks functies in een compact en fanless design. Flexibele Power over Ethernet mogelijkheden maken ze ideaal voor connectiviteit van IoT devices in slimme gebouwen en zakelijke omgevingen. De x320-11GPT heeft de mogelijkheid zelf gevoed te worden middels PoE (icm AT-x320-10GH) om vervolges met de functionaliteit PoE pass-through de randapparatuur te voorzien van stroom. Uiteraard kunnen deze switches beheerd worden met Autonomous Management Frameworkâ„¢ (AMF) en bied Continuous PoE (CPoE) de mogelijkheid om een switch opnieuw op te starten zonder dat de voeding naar de randapparatuur stopt. De AT-x320-11GPT heeft 8 x 10/100/1000T PoE+ poorten (max 60 Watt), 1 x PoE-in poort en 2 x 100/1000X SFP uplinks.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld foutBedankt voor uw melding!

Er ging iets mis. Probeer het opnieuw.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Traffic-classificatie
Ja
Traffic shaping
Ja
ARP-inspectie
Ja
Locatie-instellingen (CLI) configureren
Ja
System event log
Ja
MIB-ondersteuning
SNMP

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2
Console port
RJ-45
Aantal USB 2.0-poorten
1

Netwerk

Netwerkstandaard*
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Port mirroring
Ja
Full duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Spanning tree protocol
Ja
Auto-negotiation
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN, Voice VLAN
Aantal VLANs
4094

Data-uitwisseling

Switchingcapaciteit*
24 Gbit/s
Verzending snelheid
16,4 Mpps
MAC-adrestabel*
16000 entries
Aantal wachtrijen
8
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
1,5 MB

Beveiliging

DHCP-functies
DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, PEAP, SHA-1, SHA-2, SHA-256, SSH, SSL/TLS, TLS, TTLS
MAC adres filtering
Ja
Bescherming lus
Ja
BPDU filtering / bescherming
Ja
Authenticatie
Gast-VLAN, MAC-gebaseerde authenticatie, Poortgebaseerde authenticatie, Webgebaseerde authenticatie
Wachtwoordbeveiliging
Ja

Beveiliging

Authenticatie type
AAA, IEEE 802.1x, RADIUS

Multicast-functies

Multicast-ondersteuning
Ja

Protocollen

GARP VLAN Registratieprotocol (GVRP)
Ja
Routing protocols
OSPF, RIP, RIP-1

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Grijs
LED-indicatoren
Ja
Elektromagnetische compatibiliteit
EN55032 A, FCC A, VCCI A, ICES-003 A
Certificering
EN55024, EN61000-3 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL RoHS

Prestatie

Type geheugen
DDR3-SDRAM
Intern geheugen
512 MB
Flash memory
128 MB
Export Control Classification Number (ECCN)
5A992C

Energie

Vermogenstoevoer inclusief*
Ja
Vermogensverbruik (max)
98 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-10 - 55 °C
Temperatuur bij opslag
-25 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Warmtedissipatie
350 BTU/h

Gewicht en omvang

Breedte
210 mm
Diepte
180 mm
Hoogte
42,5 mm
Gewicht
1,6 kg

Verpakking

Breedte verpakking
417 mm
Diepte verpakking
336 mm
Hoogte verpakking
151 mm
Gewicht verpakking
3,5 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
