APC AP8861, Zwart, NEMA L21-20P, 36x IEC 320 C13 6x IEC 320 C19 2x NEMA 5-20R, 1,83 m, CSA C22.2 No. 60950,UL 60950-1, 208 V

Niet op voorraad

Fabrikant APC
MPN AP8861
EAN 0731304277057

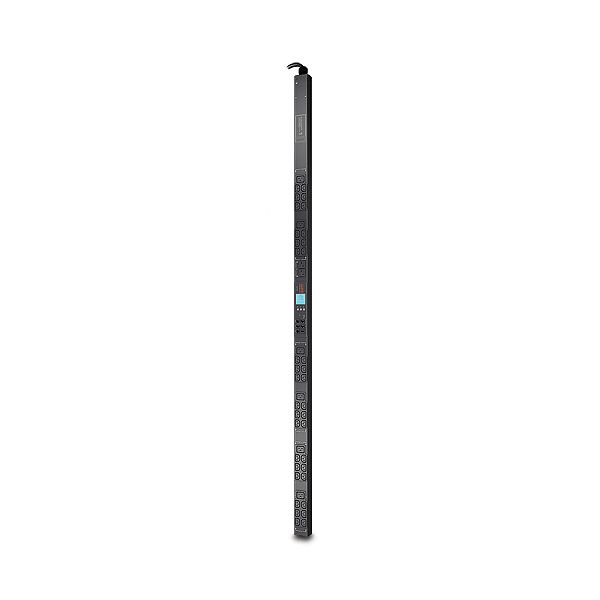

APC AP8861 energiedistributie Zwart

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Integrates with InfraStruXure Central
An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Kleur van het product
Zwart

Poorten & interfaces

Input-connectietype
NEMA L21-20P
Output-aansluitingen
36x IEC 320 C13 6x IEC 320 C19 2x NEMA 5-20R

Kenmerken

Snoerlengte
1,83 m
Certificering
CSA C22.2 No. 60950,UL 60950-1

Energie

Nominale input voltage*
208 V
AC-ingangsfrequentie
50 - 60 Hz
Netspanning, in bedrijf
208 V
Maximale ingang stroom per fase
20 A
Maximum totaalstroomverbruik per fase
20 A

Gewicht en omvang

Afmetingen (B x D x H)
56 x 44 x 1791 mm
Gewicht
6,34 kg

Verpakking

Afmetingen verpakking (BxDxH)
162 x 107 x 2000 mm
Gewicht verpakking
7,97 kg

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
5 - 45 °C
Temperatuur bij opslag
-25 - 65 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent
