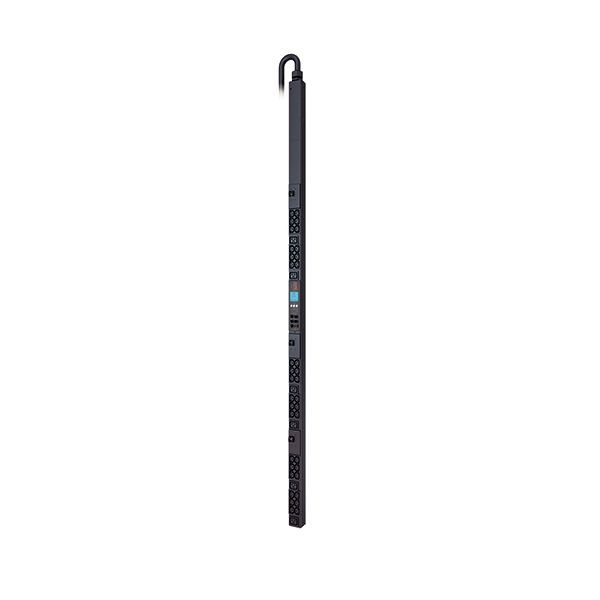

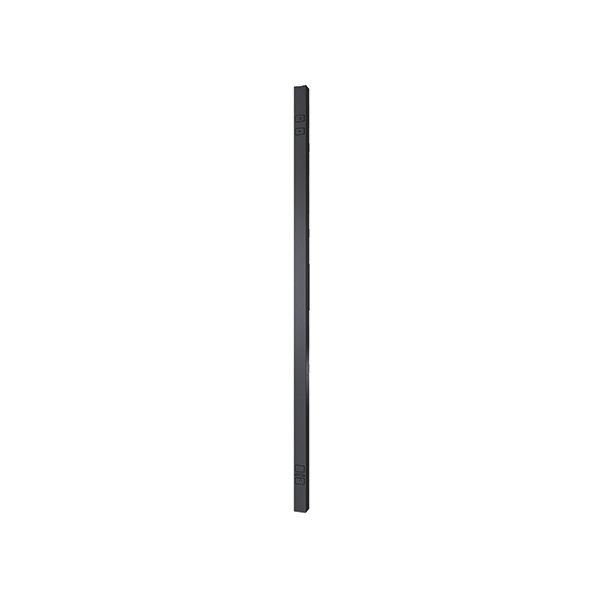

APC AP8868, Gemeten, 0U, Verticaal, Zwart, 42 AC-uitgang(en), CS8365

Niet op voorraad

Fabrikant APC
MPN AP8868
EAN 0731304289920

APC AP8868 energiedistributie 42 AC-uitgang(en) 0U Zwart

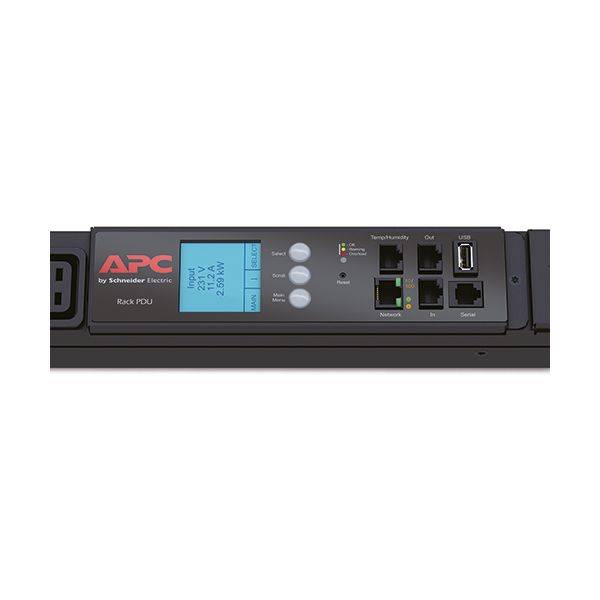

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

PDU types*
Gemeten
Rackcapaciteit*
0U
Montage
Verticaal
Kleur van het product
Zwart

Poorten & interfaces

Aantal AC uitgangen*
42 AC-uitgang(en)

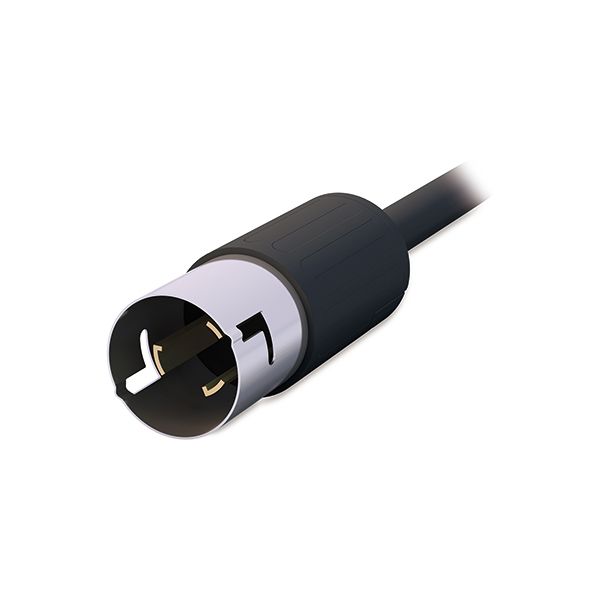

Input-connectietype
CS8365
Output-aansluitingen
36 x IEC 320 C13 6 x IEC 320 C19

Kenmerken

Snoerlengte
1,83 m
Certificering
cUL, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC, ICES-003, UL, VCCI

Energie

Nominale input voltage*
208 V
AC-ingangsfrequentie
50 - 60 Hz
Netspanning, in bedrijf
208 V
Laad-capaciteit
10000 VA
Maximale ingang stroom per fase
35 A
Maximum totaalstroomverbruik per fase
35 A

Energie

Stroomspanning bescherming
Overbelasting

Gewicht en omvang

Afmetingen (B x D x H)
56 x 51 x 1829 mm
Gewicht
8,52 kg

Verpakking

Afmetingen verpakking (BxDxH)
170 x 112 x 2050 mm
Gewicht verpakking
11,4 kg

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-25 - 65 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 15000 m

Technische details

Duurzaamheidscertificaten
RoHS
