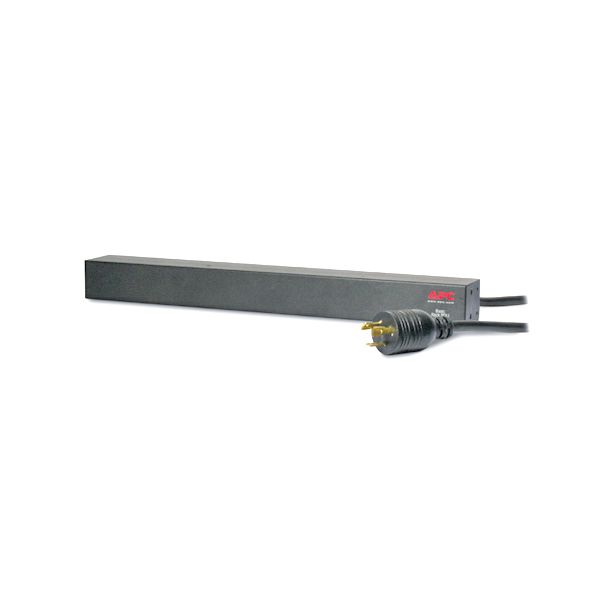

APC Rack PDU, Basic, 1U, 16A, 208V energiedistributie Zwart
APC Rack PDU, Basic, 1U, 16A, 208V, Zwart, NEMA L6-20P, 12x IEC 320 C13, 3,66 m, cUL Listed,CSA,UL 60950,UL Listed, RoHS 7b Exemption, 208 V
Nog slechts 4 beschikbaar
Fabrikant
APC
MPN
AP9566
EAN
0731304213048
€ 298,00
excl. BTW
(€ 360,58 incl. BTW)
APC Rack PDU, Basic, 1U, 16A, 208V energiedistributie Zwart
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Design
Kleur van het product
Zwart
Poorten & interfaces
Input-connectietype
NEMA L6-20P
Output-aansluitingen
12x IEC 320 C13
Kenmerken
Snoerlengte
3,66 m
Certificering
cUL Listed,CSA,UL 60950,UL Listed, RoHS 7b Exemption
Energie
Nominale input voltage*
208 V
AC-ingangsfrequentie
50 - 60 Hz
Netspanning, in bedrijf
208 V
Energie
Laad-capaciteit
3328 VA
Maximale ingang stroom per fase
20 A
Maximum totaalstroomverbruik per fase
16 A
Gewicht en omvang
Afmetingen (B x D x H)
447 x 57 x 44 mm
Gewicht
2,5 kg
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-25 - 65 °C
