Productinformatie

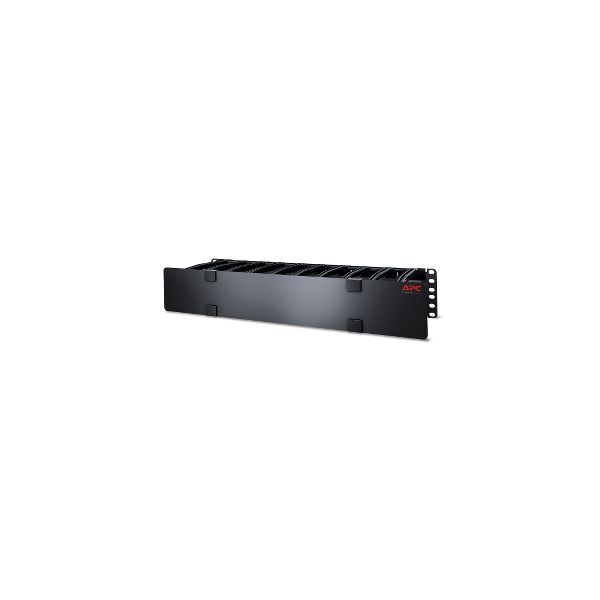

Horizontal Cable Manager, 2U x 6" Deep with Cable Tie-off bottom plate, Single-Sided with Cover
High density 2U, 6-in (150-mm) deep, horizontal cable manager with cover. Features cable access slots with pre-installed brush strips in the backplate for front to back cable pass-through and a bottom plate with features for additional cable tie-off and routing.
Cable protection
Smooth plastic fingers provide proper bend radius.
Trouble-free access
Covers with snap hinges provide trouble-free access to cables.
Cable passthrough and air containment
Pre-installed brush strips provide air containment and accessibility from the front to the rear of the enclosure.
Double-sided capable
Horizontal cable managers with 6" deep cable fingers include double-sided configuration hardware to install (2) alike horizontal cable managers back-to-back for double-sided applications.
High capacity cable finger design
Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rackspace unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
Cable tie-off bottom plate
Horizontal cable manager bottom plate provides cable tie-off features for bundling cable with toolless hook-and-loop cable managers (AR8621).
Horizontal cable routing front-to-back
Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
data storage devices
Kleur van het product | Zwart |
---|---|
Kleur van het product | Zwart |
Gewicht en omvang
Hoogte | 88 mm |
---|---|
Gewicht | 1,2 kg |
Breedte | 482 mm |
Diepte | 165 mm |
Gewicht pakket | 1,5 kg |
Breedte van de verpakking | 520 mm |
Diepte van de verpakking | 200 mm |
Hoogte van de verpakking | 152 mm |
Overige specificaties
Rack-montage | 2U |
---|
