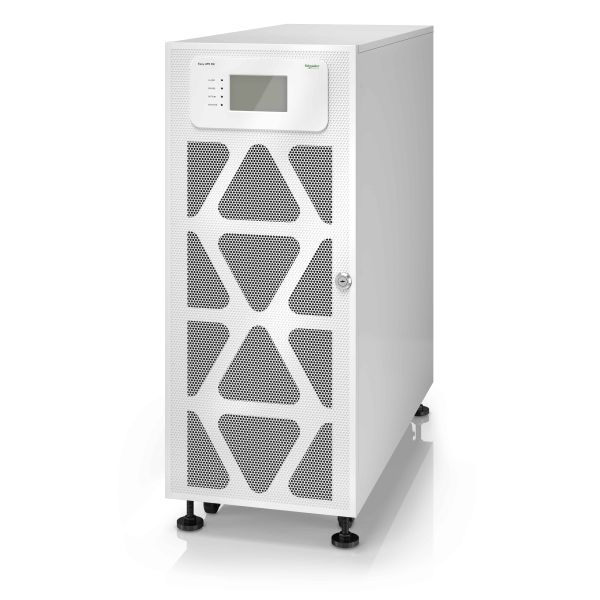

APC E3MUPS60KHS UPS Dubbele conversie (online) 60 kVA 60000 W

APC E3MUPS60KHS, Dubbele conversie (online), 60 kVA, 60000 W, Sinus, 342 V, 477 V

Niet op voorraad

Fabrikant APC
MPN E3MUPS60KHS
EAN 0731304363286
€ 9.353,00 excl. BTW

APC E3MUPS60KHS UPS Dubbele conversie (online) 60 kVA 60000 W

Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 60 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5x8 start-up service.

Includes: Dust filter, Installation guide, Start-Up Service.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
60 kVA
Uitgangsvermogen*
60000 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
342 V
Ingang operation voltage (max)*
477 V
Frequentie*
40/70 Hz
Uitgang operation voltage (min)
380 V
Uitgang operation voltage (max)
415 V
Output frequentie
50/60 Hz
Stroom (max.)
104 A
Aantal input fases
3
Aantal output fases
3
Input vermogensfactor
0,99
Crest factor
3:1
ECO mode
Ja
Emergency Power Off (EPO)
Ja
Output voltage THD
3 procent
Geluidsniveau
65 dB
Geluidsalarm(en)
Ja

Accu/Batterij

Koude start
Ja

Design

Vormfactor*
Tower

Design

Kleur van het product*
Wit
Type beeldscherm
LCD
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP20
Certificering
EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-25 - 55 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 1476,3 m
Hoogte bij opslag
0 - 15000 m

Gewicht en omvang

Breedte
360 mm
Diepte
850 mm
Hoogte
915 mm
Gewicht
109 kg
Breedte verpakking
475 mm
Diepte verpakking
965 mm
Hoogte verpakking
1140 mm
Gewicht verpakking
133 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
