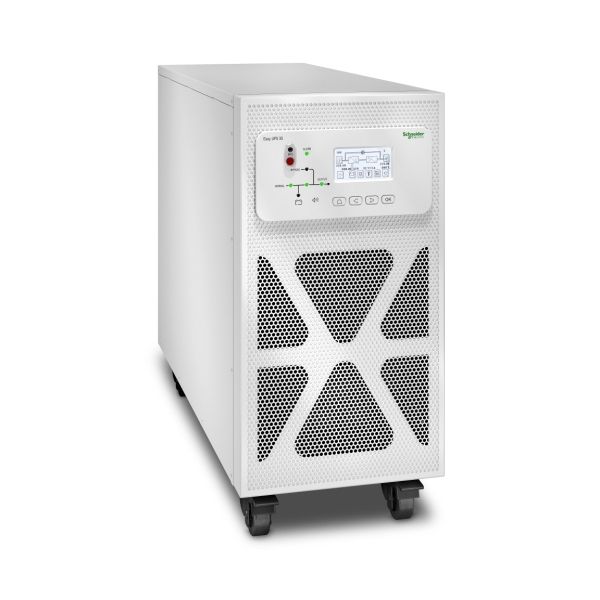

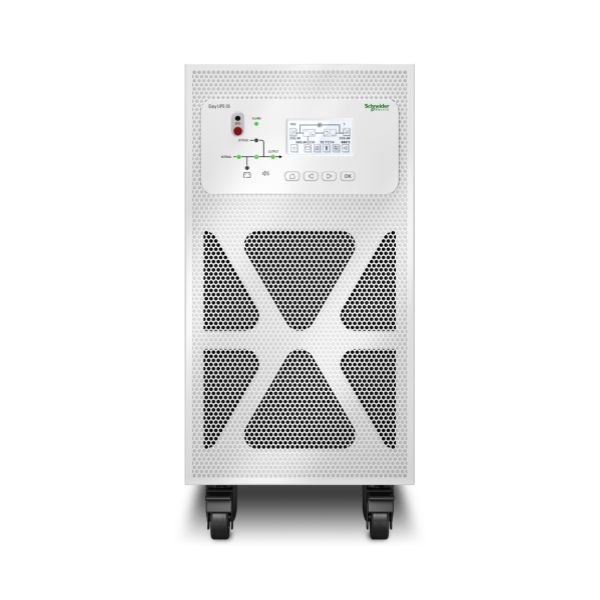

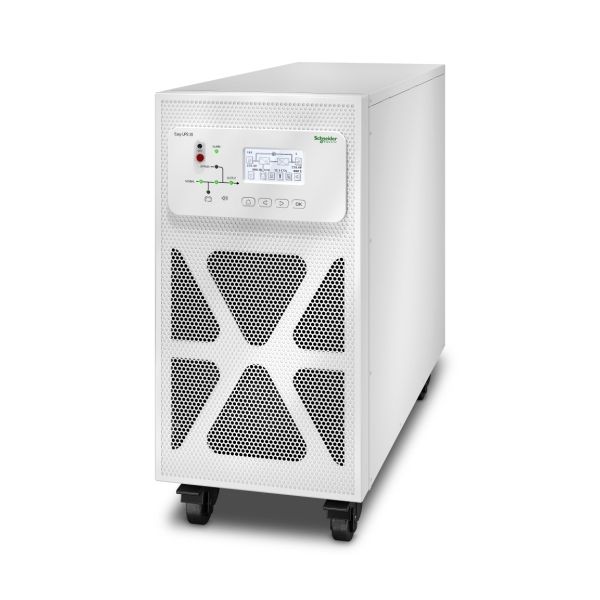

APC E3SUPS10K3I UPS Dubbele conversie (online) 10 kVA 10000 W

APC E3SUPS10K3I, Dubbele conversie (online), 10 kVA, 10000 W, Sinus, 304 V, 477 V

Niet op voorraad

Fabrikant APC
MPN E3SUPS10K3I
EAN 0731304340645
€ 4.398,00 excl. BTW

APC E3SUPS10K3I UPS Dubbele conversie (online) 10 kVA 10000 W

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.

Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements

Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.

Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!

Replaceable dust filters
protect the UPS in harsh environments.

Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.

Easy to install fast
Quickly roll the compact and lightweight UPS into position.

ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.

Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.

Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
10 kVA
Uitgangsvermogen*
10000 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
304 V
Ingang operation voltage (max)*
477 V
Frequentie*
45/65 Hz
Uitgang operation voltage (min)
220 V
Output frequentie
50/60 Hz
Uitgangsspanningsregeling
3 procent
Stroom (max.)
18 A
Efficientie
94,4 procent
Input vermogensfactor
0,99
Crest factor
3:1
ECO mode
Ja
Geluidsniveau
60 dB

Design

Kleur van het product*
Wit
Internationale veiligheidscode (IP)
IP20
Certificering
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Hoogte, in bedrijf
0 - 1000 m
Hoogte bij opslag
0 - 15240 m

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
250 mm
Diepte
700 mm
Hoogte
530 mm
Gewicht
36 kg
Breedte verpakking
400 mm
Diepte verpakking
857 mm
Hoogte verpakking
772 mm
Gewicht verpakking
50 kg

Verpakking

Snelle installatiehandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
