APC E3SUPS10K3IB UPS Dubbele conversie (online) 10 kVA 10000 W

APC E3SUPS10K3IB, Dubbele conversie (online), 10 kVA, 10000 W, 304 V, 477 V, 45/65 Hz

Niet op voorraad

Fabrikant APC
MPN E3SUPS10K3IB
EAN 0731304340720
€ 4.748,00 excl. BTW

APC E3SUPS10K3IB UPS Dubbele conversie (online) 10 kVA 10000 W

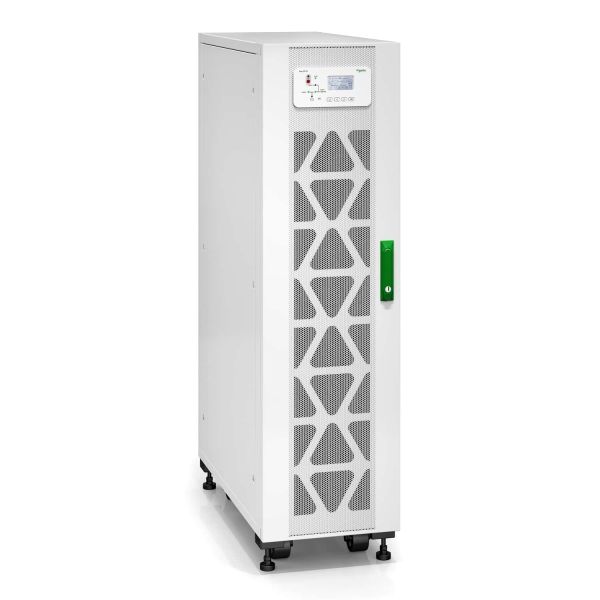

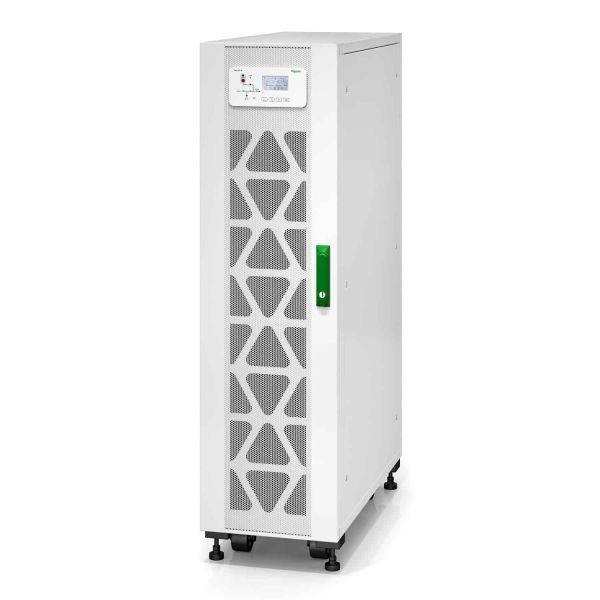

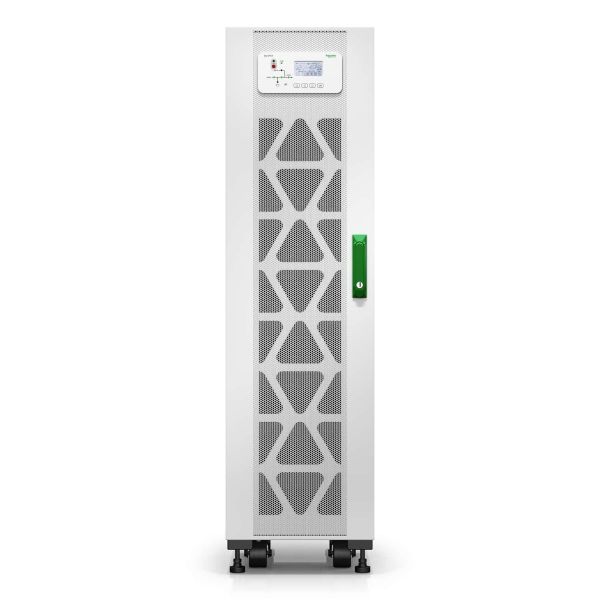

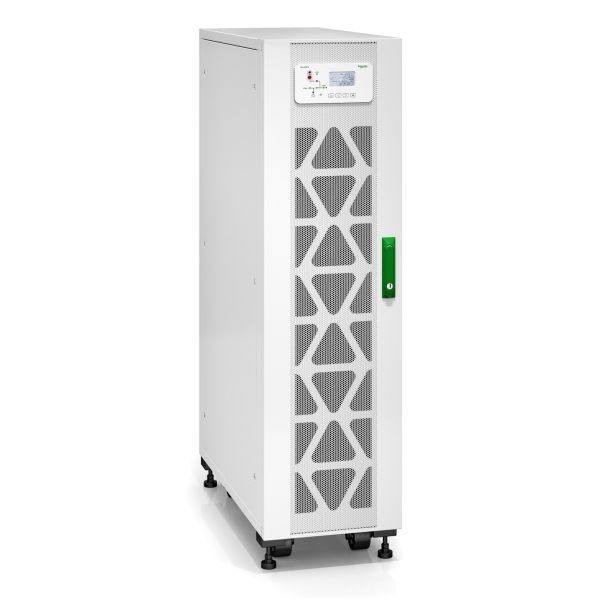

Easy UPS 3S 10 kVA 400 V 3:1 UPS for internal batteries

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.

Includes: Dust filter, Installation guide

Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.

Replaceable dust filters
protect the UPS in harsh environments.

Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements

Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!

Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.

Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.

Easy to install fast
Quickly roll the compact and lightweight UPS into position.

ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.

Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
10 kVA
Uitgangsvermogen*
10000 W
Ingang operation voltage (min)*
304 V
Ingang operation voltage (max)*
477 V
Frequentie*
45/65 Hz
Uitgang operation voltage (min)
220 V
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Stroom (max.)
18 A
Power factor
0,99
Crest factor
3:1
Output voltage THD
5,5 procent

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Accu/Batterij voltage
240 V

Design

Vormfactor*
Rackmontage
Kleur van het product*
Wit
Internationale veiligheidscode (IP)
IP20
Certificering
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-25 - 55 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
380 mm
Diepte
907 mm
Hoogte
1400 mm
Gewicht
130 kg
Breedte verpakking
563 mm
Diepte verpakking
1014 mm
Hoogte verpakking
1640 mm
Gewicht verpakking
145 kg

Verpakking

Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
