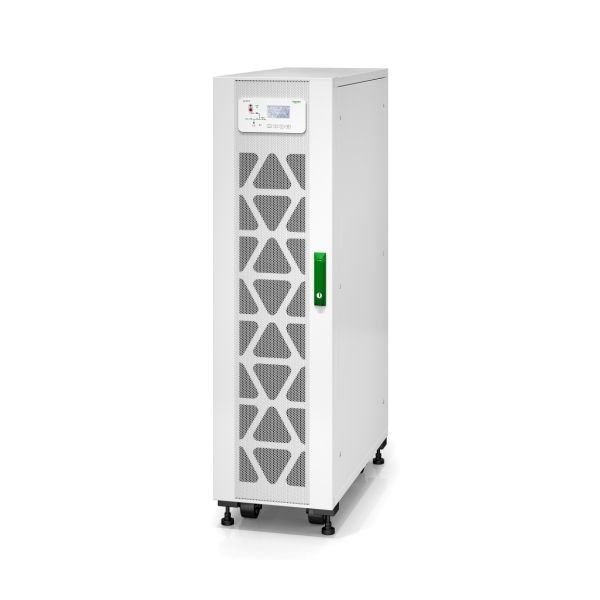

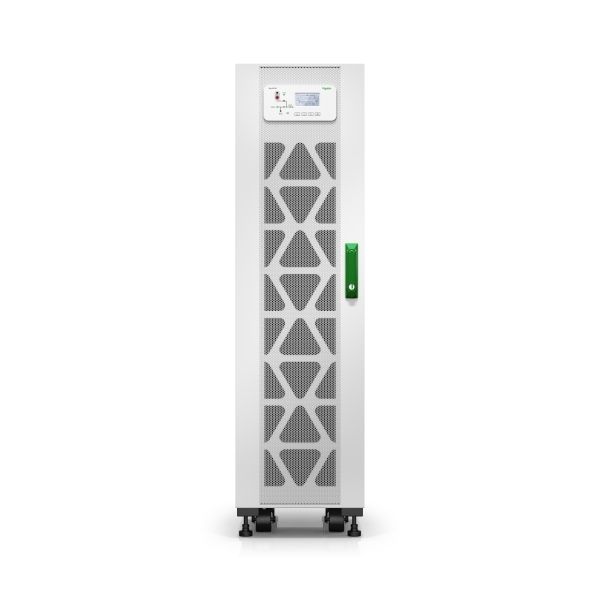

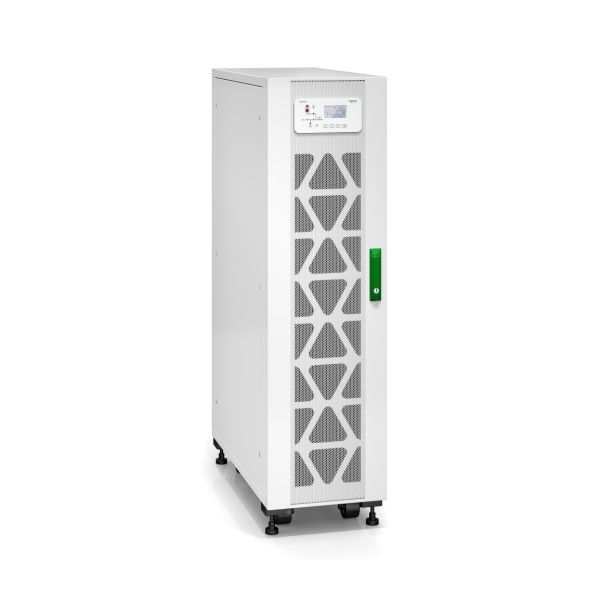

APC E3SUPS10K3IB1 UPS Dubbele conversie (online) 10 kVA 10000 W

APC E3SUPS10K3IB1, Dubbele conversie (online), 10 kVA, 10000 W, 304 V, 477 V, 45/65 Hz

Niet op voorraad

Fabrikant APC
MPN E3SUPS10K3IB1
EAN 0731304428138
€ 5.582,00 excl. BTW

APC E3SUPS10K3IB1 UPS Dubbele conversie (online) 10 kVA 10000 W

Easy to install fast

Quickly roll the compact and lightweight UPS into position.

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Easy Loop Test

Verifies UPS performance before you connect your load, without the need for a load bank.

Straightforward installation

Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.

Front-access servicing

Simplifies installation and UPS maintenance while minimizing space requirements.

Intuitive user interface

The intuitive graphical user interface allows for easy system configuration.

Replaceable dust filters

protect the UPS in harsh environments.

Optional SNMP Card

When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.

Wide Input Voltage Window

Saves your battery power for when you really need it - during power cuts!

Parallel capability

Multiple units can be placed in parallel to meet power capacity and redundancy requirements

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
10 kVA
Uitgangsvermogen*
10000 W
Ingang operation voltage (min)*
304 V
Ingang operation voltage (max)*
477 V
Frequentie*
45/65 Hz
Uitgang operation voltage (min)
220 V
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Input vermogensfactor
0,99
Crest factor
3:1
ECO mode
Ja
Output voltage THD
5,5 procent
Input stroom THD
4 procent
Geluidsniveau
60 dB
Stroomspanning bescherming
Overbelasting

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Accu/Batterij voltage
240 V

Design

Vormfactor*
Tower
Kleur van het product*
Wit
Internationale veiligheidscode (IP)
IP20

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 1000,05 m
Hoogte bij opslag
0 - 15240 m

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
380 mm
Diepte
907 mm
Hoogte
14000 mm
Gewicht
157 kg
Breedte verpakking
563 mm
Diepte verpakking
1014 mm
Hoogte verpakking
1640 mm

Verpakking

Snelle installatiehandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
