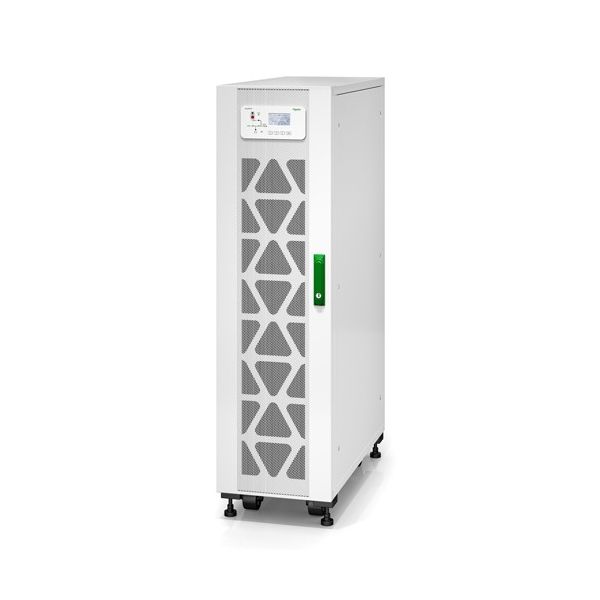

APC E3SUPS15K3IB UPS Dubbele conversie (online) 15 kVA 15000 W

APC E3SUPS15K3IB, Dubbele conversie (online), 15 kVA, 15000 W, 220 V, 400 V, 45/65 Hz

Niet op voorraad

Fabrikant APC
MPN E3SUPS15K3IB
EAN 0731304341888
€ 5.139,00 excl. BTW

APC E3SUPS15K3IB UPS Dubbele conversie (online) 15 kVA 15000 W

Easy UPS 3S 15 kVA 400 V 3:1 UPS for internal batteries
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
Includes: Dust filter, Installation guide
  • Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • The intuitive graphical user interface allows for easy system configuration
  • Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment
  • Simplifies installation and UPS maintenance while minimizing space requirements
  • Verifies UPS performance before you connect your load, without the need for a load bank
  • Quickly roll the compact and lightweight UPS into position
  • Protect the UPS in harsh environments
  • Saves your battery power for when you really need it - during power cuts!
  • Multiple units can be placed in parallel to meet power capacity and redundancy requirements
  • When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
15 kVA
Uitgangsvermogen*
15000 W
Ingang operation voltage (min)*
220 V
Ingang operation voltage (max)*
400 V
Frequentie*
45/65 Hz
Uitgang operation voltage (min)
220 V
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Crest factor
3:1
Overbelastingscapaciteit (10 minuten)
125 procent
Overbelastingscapaciteit (1 minuut)
150 procent
Geluidsniveau
60 dB

Poorten & interfaces

Seriële poort(en)
1
Parallelle poort(en)
1

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Accu/Batterij voltage
240 V

Design

Kleur van het product*
Wit
Certificering
REACH: Contains No SVHCs

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C

Eisen aan de omgeving

Temperatuur bij opslag
-25 - 55 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 984,3 m

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
380 mm
Diepte
907 mm
Hoogte
1400 mm
Gewicht
130 kg
Breedte verpakking
563 mm
Diepte verpakking
1014 mm
Hoogte verpakking
1640 mm
Gewicht verpakking
145 kg

Verpakking

Zekering inbegrepen
Ja
Snelle installatiehandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000

Overige specificaties

Type batterij
VRLA
Spanning
220 - 240 V
