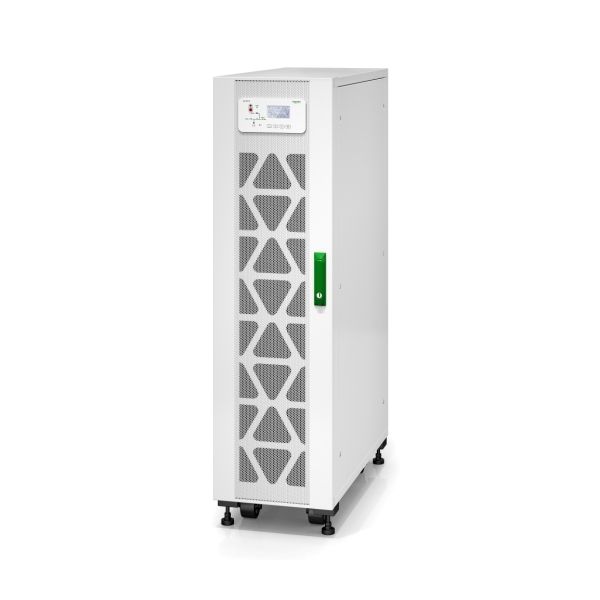

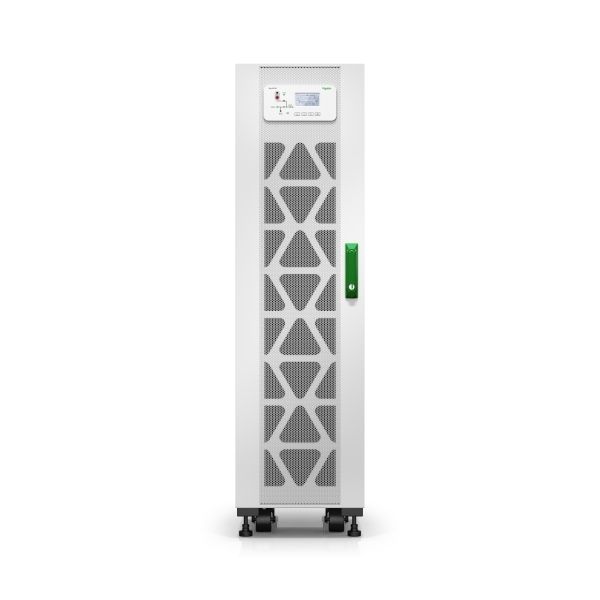

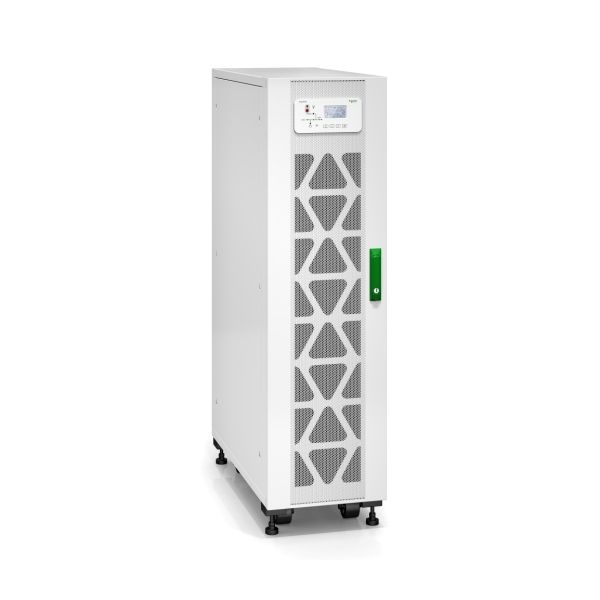

Easy UPS 3S 15 kVA 400 V 3:1 UPS with internal batteries - 25 minutes runtime
High-efficiency 3-phase UPS with internal batteries providing a runtime of 25 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.
High-efficiency 3-phase UPS with internal batteries providing a runtime of 25 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.
- Front-access servicing: simplifies installation and UPS maintenance while minimizing space requirements
- ECO Mode: operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Intuitive user interface: the intuitive graphical user interface allows for easy system configuration
- Easy to install fast: quickly roll the compact and lightweight UPS into position
- Easy Loop Test: verifies UPS performance before you connect your load, without the need for a load bank
- Straightforward installation: including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment
- Optional SNMP Card: when you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT
- Wide Input Voltage Window: saves your battery power for when you really need it - during power cuts!
- Parallel capability: multiple units can be placed in parallel to meet power capacity and redundancy requirements
- Replaceable dust filters: protect the UPS in harsh environments
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Kenmerken
UPS-topologie*
Dubbele conversie (online)
Output power capacity*
15 kVA
Uitgangsvermogen*
15000 W
Ingang operation voltage (min)*
304 V
Ingang operation voltage (max)*
477 V
Frequentie*
45/65 Hz
Uitgang operation voltage (min)
220 V
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Uitgangsspanningsregeling
3 procent
Input vermogensfactor
0,99
Crest factor
3:1
ECO mode
Ja
Output voltage THD
5,5 procent
Geluidsniveau
60 dB
Stroomspanning bescherming
Overbelasting
Accu/Batterij
Batterijtechnologie
Sealed Lead Acid (VRLA)
Accu/Batterij voltage
240 V
Ondersteund aantal accu's/batterijen
2
Design
Vormfactor*
Grote toren
Design
Kleur van het product*
Wit
Internationale veiligheidscode (IP)
IP20
Certificering
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 984 m
Hoogte bij opslag
0 - 15000 m
Gewicht en omvang
Breedte
380 mm
Diepte
907 mm
Hoogte
1400 mm
Gewicht
211 kg
Breedte verpakking
563 mm
Diepte verpakking
1014 mm
Hoogte verpakking
1640 mm
Gewicht verpakking
229 kg
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85078000
