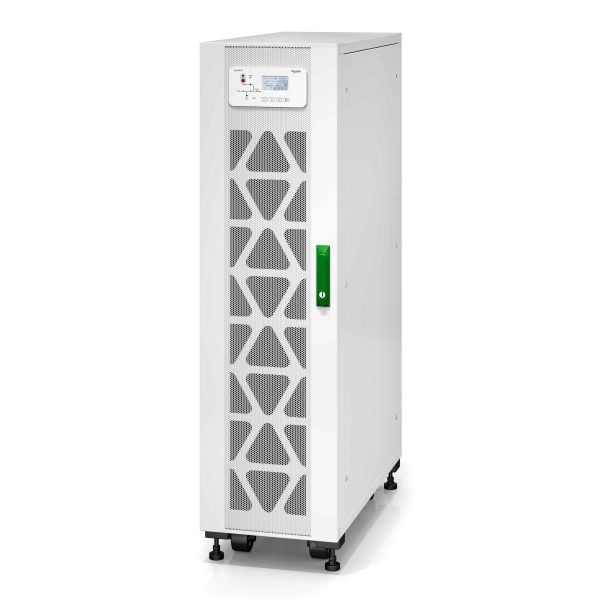

APC E3SUPS20K3IB2 UPS Dubbele conversie (online) 20 kVA 20000 W

APC E3SUPS20K3IB2, Dubbele conversie (online), 20 kVA, 20000 W, Sinus, 304 V, 477 V

Niet op voorraad

Fabrikant APC
MPN E3SUPS20K3IB2
EAN 0731304428220
€ 8.377,00 excl. BTW

APC E3SUPS20K3IB2 UPS Dubbele conversie (online) 20 kVA 20000 W

High-efficiency 3-phase UPS with internal batteries providing a runtime of 30 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.

Includes: Dust filter, Installation guide.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
20 kVA
Uitgangsvermogen*
20000 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
304 V
Ingang operation voltage (max)*
477 V
Frequentie*
45/65 Hz
Uitgang operation voltage (min)
220 V
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Uitgangsspanningsregeling
5.5 procent
Stroom (max.)
37 A
Aantal input fases
3
Aantal output fases
1
Efficientie
95 procent
Input vermogensfactor
0,99
Crest factor
3:1
ECO mode
Ja
Geluidsniveau
60 dB

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Accu/Batterij voltage
240 V

Design

Vormfactor*
Tower

Design

Kleur van het product*
Wit
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP20
Certificering
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 984,3 m
Hoogte bij opslag
0 - 15000 m

Gewicht en omvang

Breedte
380 mm
Diepte
907 mm
Hoogte
1400 mm
Gewicht
231 kg
Breedte verpakking
563 mm
Diepte verpakking
1014 mm
Hoogte verpakking
1640 mm
Gewicht verpakking
242 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
