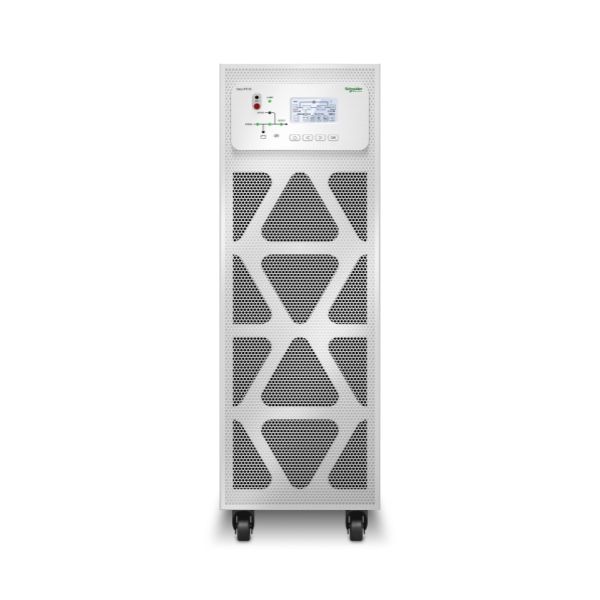

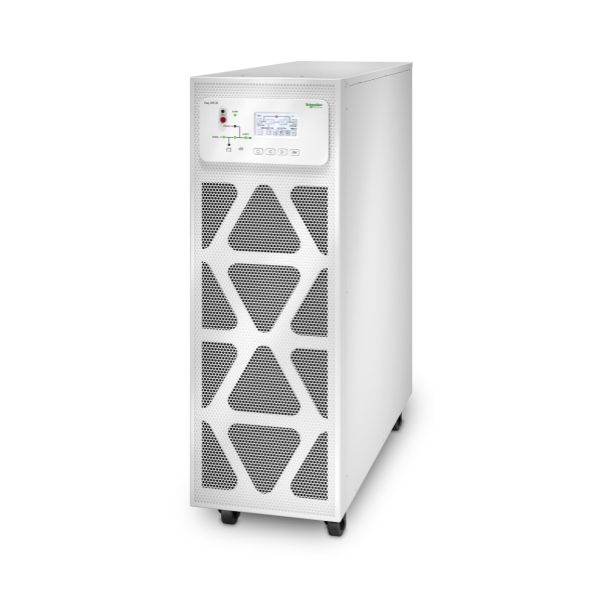

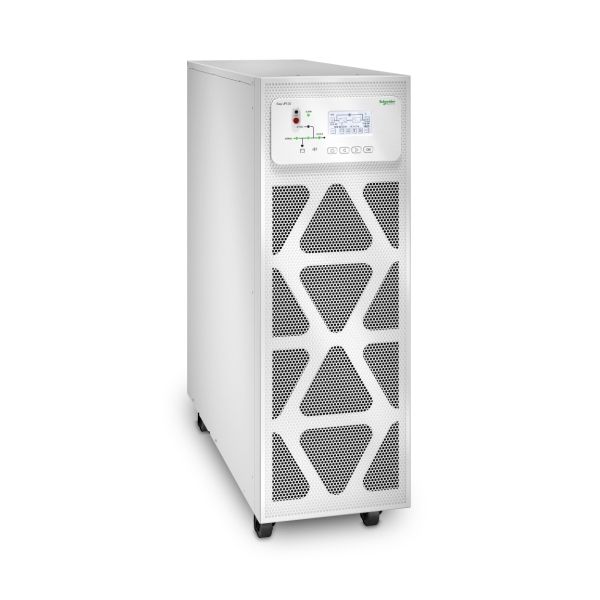

APC E3SUPS30K3I UPS Dubbele conversie (online) 30 kVA 30000 W

APC E3SUPS30K3I, Dubbele conversie (online), 30 kVA, 30000 W, 304 V, 477 V, 45/65 Hz

Niet op voorraad

Fabrikant APC
MPN E3SUPS30K3I
EAN 0731304340799
€ 6.225,00 excl. BTW

APC E3SUPS30K3I UPS Dubbele conversie (online) 30 kVA 30000 W

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
30 kVA
Uitgangsvermogen*
30000 W
Ingang operation voltage (min)*
304 V
Ingang operation voltage (max)*
477 V
Frequentie*
45/65 Hz
Uitgang operation voltage (min)
220 V
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Power factor
0,99
Crest factor
3:1
Geluidsniveau
63 dB

Design

Vormfactor*
Tower
Kleur van het product*
Wit
Internationale veiligheidscode (IP)
IP20
Certificering
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C

Eisen aan de omgeving

Temperatuur bij opslag
-15 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Hoogte, in bedrijf
0 - 1000 m
Hoogte bij opslag
0 - 15240 m

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
250 mm
Diepte
800 mm
Hoogte
770 mm
Gewicht
60 kg
Breedte verpakking
400 mm
Diepte verpakking
982 mm
Hoogte verpakking
1015 mm
Gewicht verpakking
77 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
