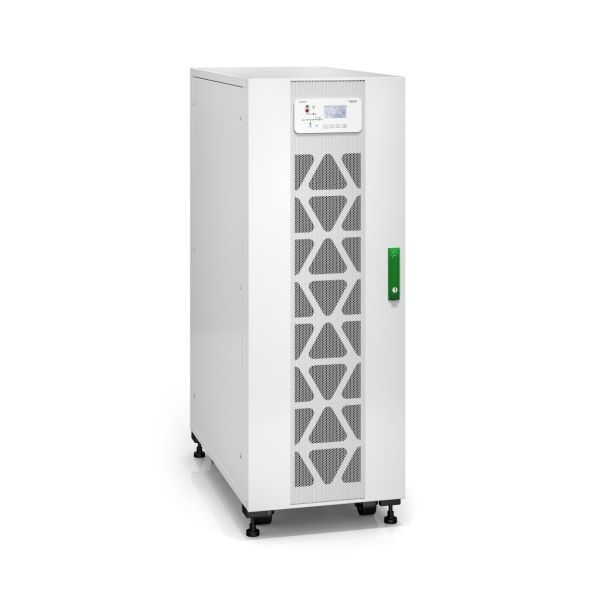

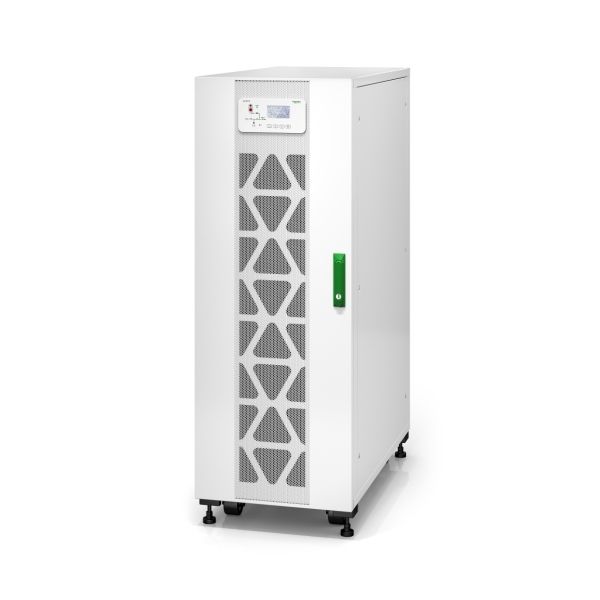

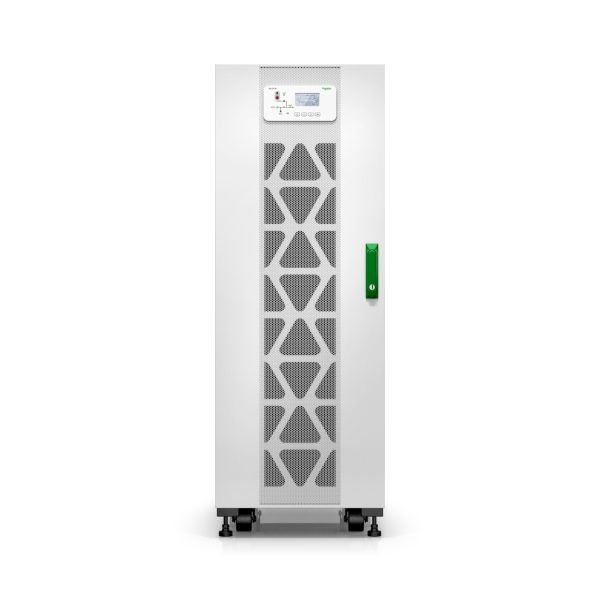

APC E3SUPS30K3IB1 UPS Dubbele conversie (online) 30 kVA 30000 W

APC E3SUPS30K3IB1, Dubbele conversie (online), 30 kVA, 30000 W, 304 V, 477 V, 45/65 Hz

Niet op voorraad

Fabrikant APC
MPN E3SUPS30K3IB1
EAN 0731304428251
€ 8.429,00 excl. BTW

APC E3SUPS30K3IB1 UPS Dubbele conversie (online) 30 kVA 30000 W

High-efficiency 3-phase UPS with internal batteries providing a runtime of 9 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.

Protection

Replaceable dust filters
protect the UPS in harsh environments.

Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.

Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements

Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!

Convenience

Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.

ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.

Easy to install fast
Quickly roll the compact and lightweight UPS into position.

Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.

Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
30 kVA
Uitgangsvermogen*
30000 W
Ingang operation voltage (min)*
304 V
Ingang operation voltage (max)*
477 V
Frequentie*
45/65 Hz
Uitgang operation voltage (min)
220 V
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Stroom (max.)
55 A
Input vermogensfactor
0,99
Crest factor
3:1
Output voltage THD
5,5 procent
Input stroom THD
5 procent
Geluidsniveau
63 dB
Stroomspanning bescherming
Overbelasting

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Accu/Batterij voltage
240 V
Ondersteund aantal accu's/batterijen
2

Design

Vormfactor*
Tower
Kleur van het product*
Wit
Internationale veiligheidscode (IP)
IP20

Design

Certificering
REACH CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 984,3 m
Hoogte bij opslag
0 - 15000 m

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
500 mm
Diepte
996 mm
Hoogte
1400 mm
Gewicht
212 kg
Batterijbreedte
68,3 cm
Batterijdiepte
111,4 cm
Batterijhoogte
164 cm
Gewicht batterij
213 kg

Verpakking

Snelle installatiehandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
