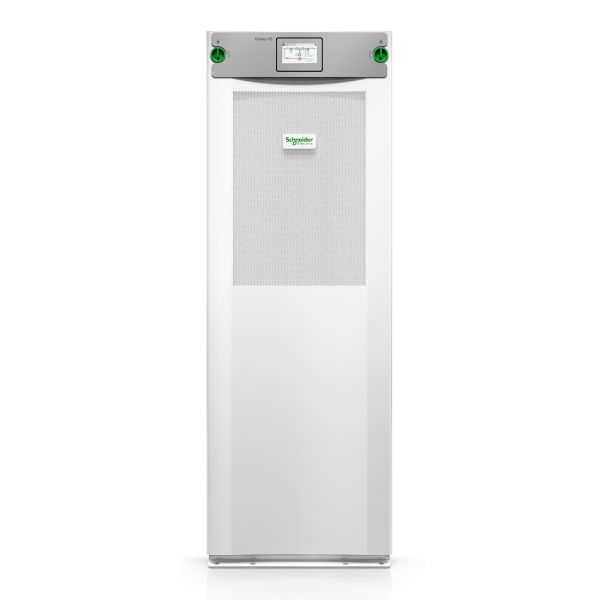

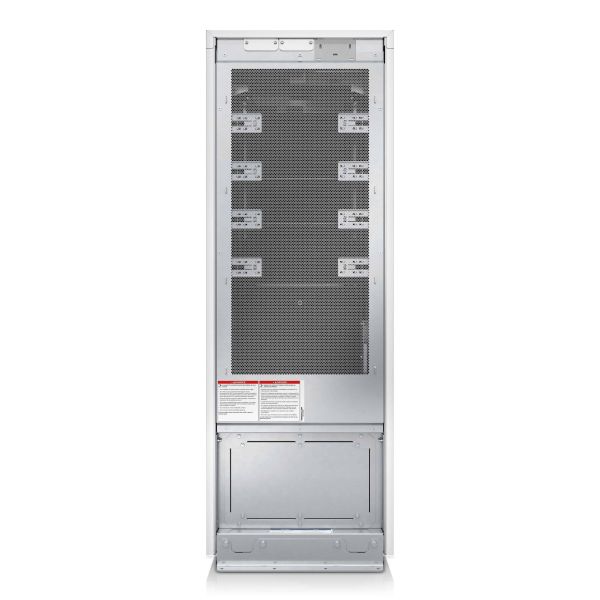

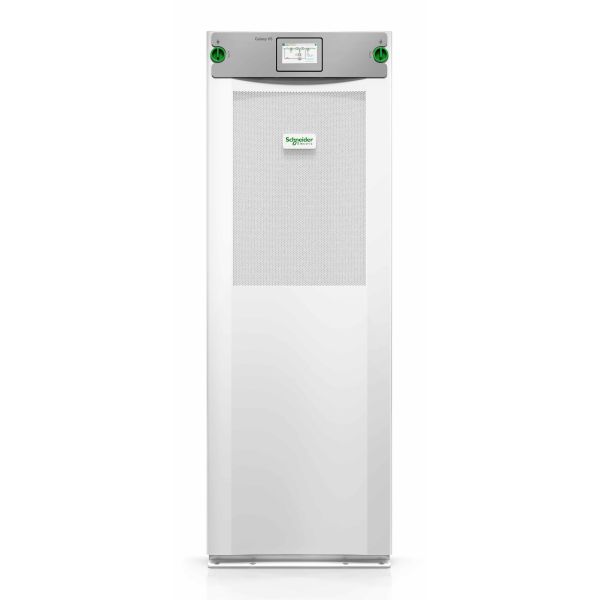

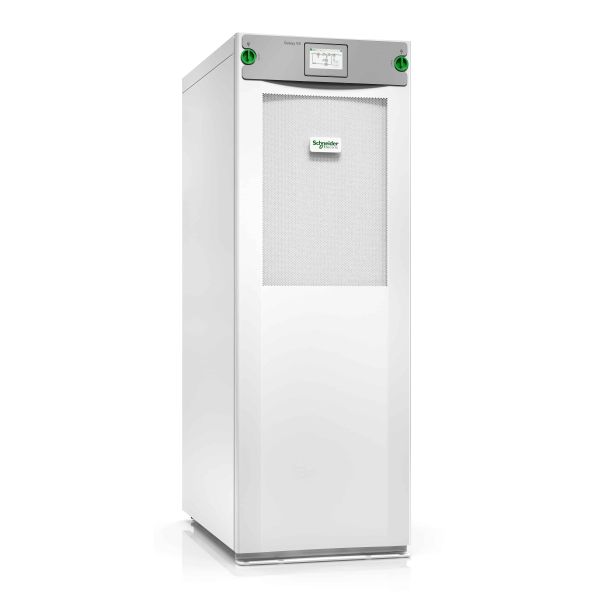

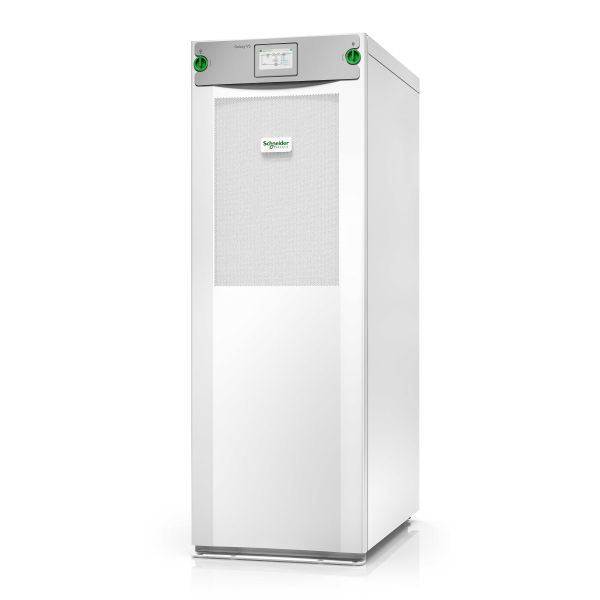

APC GVSUPS30KHS UPS Dubbele conversie (online) 30 kVA 30000 W

APC GVSUPS30KHS, Dubbele conversie (online), 30 kVA, 30000 W, Sinus, 340 V, 460 V

Niet op voorraad

Fabrikant APC
MPN GVSUPS30KHS
EAN 0731304342717
€ 10.110,00 excl. BTW

APC GVSUPS30KHS UPS Dubbele conversie (online) 30 kVA 30000 W

Highly efficient, easy-to-deploy 30kW, 400V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels. Galaxy VS reduces your energy losses by up to 66% with the patented ECOnversion mode – reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5x8 start-up service. For battery runtime details, see the runtime charts published under the Documents tab.

Includes: Dust filter, Installation guide, Integrated network management, Power modules ship installed, Start-Up Service, Top and bottom cable entry.
  • Highly efficient, easy-to-deploy 30kW, 400V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data
  • Includes: Dust filter, Installation guide, Integrated network management, Power modules ship installed, Start-Up Service, Top and bottom cable entry

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
30 kVA
Uitgangsvermogen*
30000 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
340 V
Ingang operation voltage (max)*
460 V
Frequentie*
40/70 Hz
Uitgang operation voltage (min)
380 V
Uitgang operation voltage (max)
415 V
Output frequentie
50/60 Hz
Stroom (max.)
56 A
Aantal input fases
3
Aantal output fases
3
Efficientie
96,8 procent
Input vermogensfactor
0,99
Crest factor
2.5:1
ECO mode
Ja
Output voltage THD
3 procent
Geluidsniveau
65 dB
Geluidsalarm(en)
Ja

Design

Vormfactor*
Tower
Kleur van het product*
Wit

Design

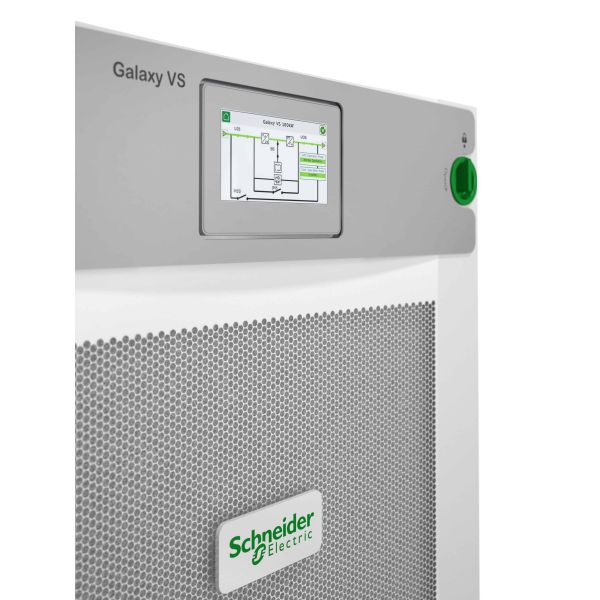

Type beeldscherm
LCD
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP21
Certificering
CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-25 - 55 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
10 - 80 procent

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
521 mm
Diepte
847 mm
Hoogte
1485 mm
Gewicht
210 kg
Breedte verpakking
640 mm
Diepte verpakking
990 mm
Hoogte verpakking
1680 mm
Gewicht verpakking
235 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
