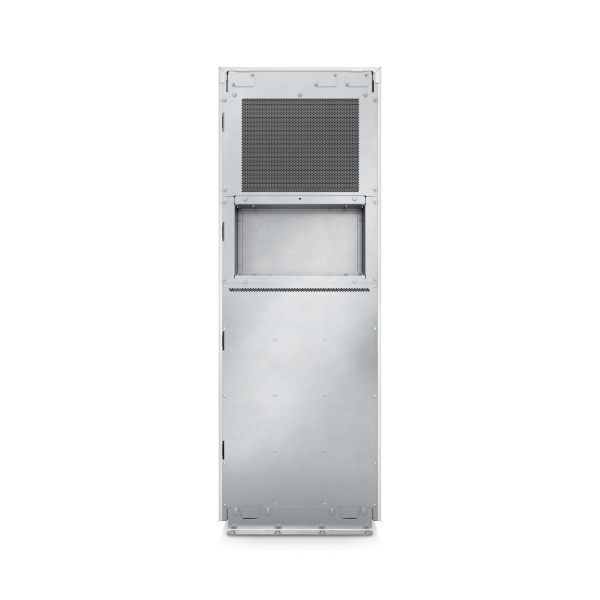

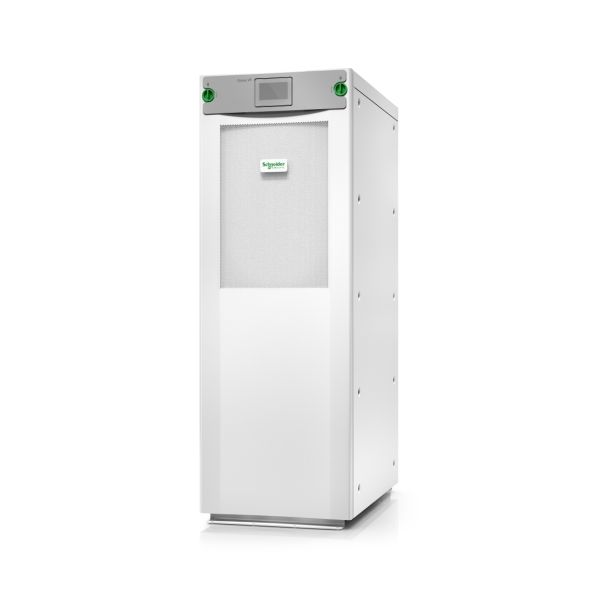

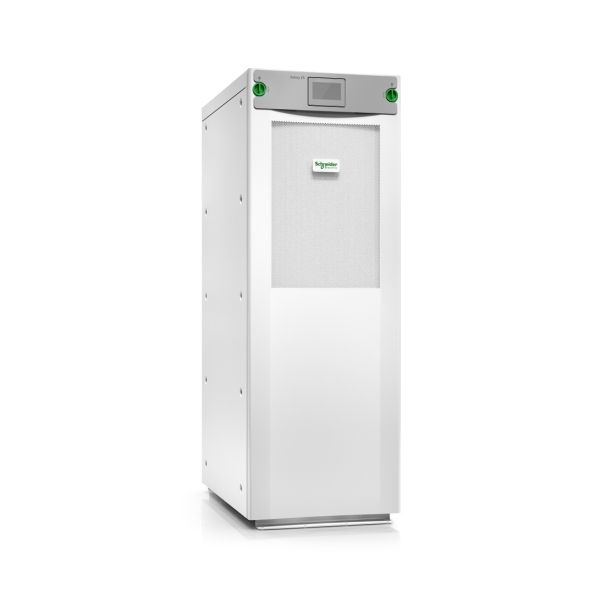

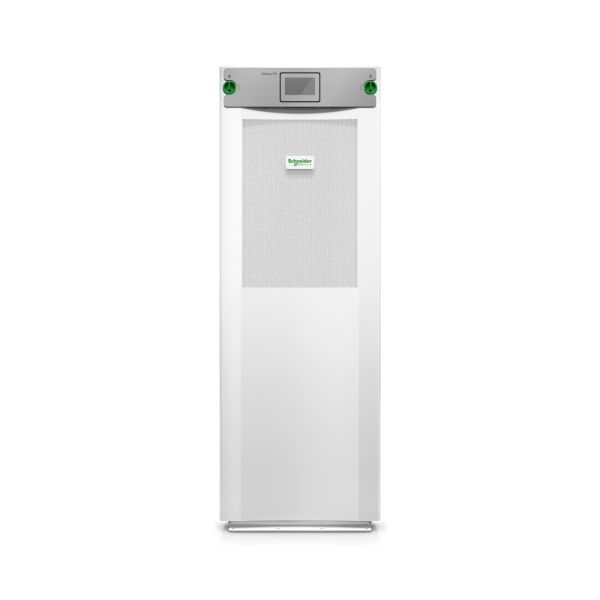

APC GVSUPS30KRHS UPS Dubbele conversie (online) 30 kVA 30000 W

APC GVSUPS30KRHS, Dubbele conversie (online), 30 kVA, 30000 W, Sinus, 340 V, 460 V

Niet op voorraad

Fabrikant APC
MPN GVSUPS30KRHS
EAN 0731304418276
€ 16.167,00 excl. BTW

APC GVSUPS30KRHS UPS Dubbele conversie (online) 30 kVA 30000 W

APC Galaxy VS UPS 30kW 400V with N+1 power

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
30 kVA
Uitgangsvermogen*
30000 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
340 V
Ingang operation voltage (max)*
460 V
Frequentie*
40 - 70 Hz
Output frequentie
50/60 Hz
Stroom (max.)
54 A
Aantal input fases
3
Aantal output fases
3
Crest factor
2.5:1
Output voltage THD
1 procent
Input stroom THD
3 procent
Geluidsniveau
68 dB
Stroomspanning bescherming
Overbelasting, Kortsluiting
Geluidsalarm(en)
Ja

Design

Vormfactor*
Tower
Kleur van het product*
Wit

Design

Type beeldscherm
LCD
Internationale veiligheidscode (IP)
IP21

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-25 - 55 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
10 - 80 procent
Hoogte, in bedrijf
0 - 1005,84 m

Certificaten

Certificaten van naleving
RoHS
Certificering
EN/IEC 62040-1, EN/IEC 62040-2, FCC 15 A, IEC 60721-4-2 2M2, UL 1778 5

Inhoud van de verpakking

Snelle installatiehandleiding
Ja

Gewicht en omvang

Breedte
521 mm
Diepte
847 mm
Hoogte
1485 mm
Gewicht
250 kg
