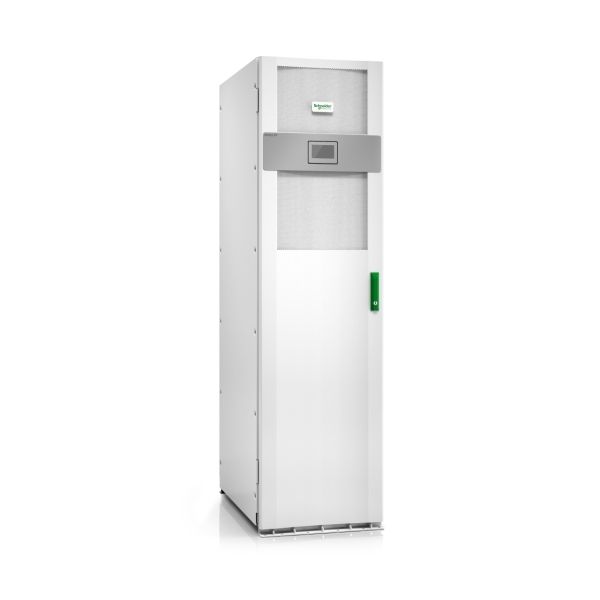

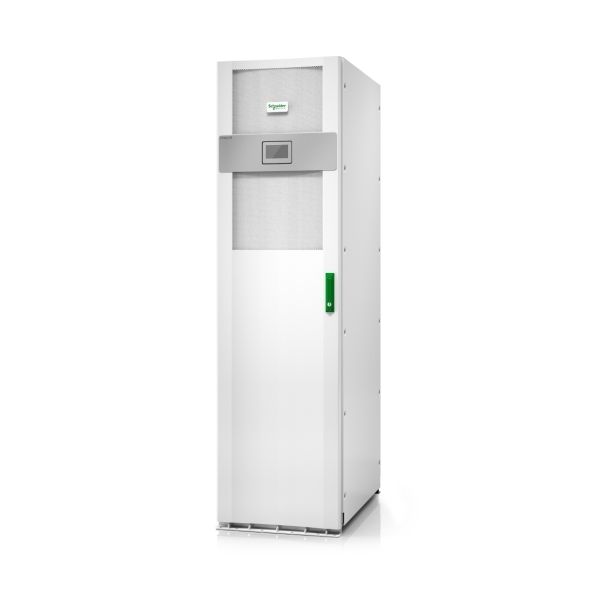

APC Galaxy VS Dubbele conversie (online) 40 kVA 40000 W

APC Galaxy VS, Dubbele conversie (online), 40 kVA, 40000 W, Sinus, 340 V, 460 V

Niet op voorraad

Fabrikant APC
MPN GVSUPS40KR0B5HS
EAN 0731304410133
€ 15.348,00 excl. BTW

APC Galaxy VS Dubbele conversie (online) 40 kVA 40000 W

Highly efficient, easy-to-deploy 40kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 5 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service and one additional power module for N+1 redundancy.

Compatible with Schneider Electric's lithium ion battery solution
Reduces system footprint and weight, cooling and maintenance requirements, and total cost of ownership; offers double the life of VRLA batteries; and improves backup storage predictability and manageability.

Built-in backfeed protection
Full built-in backfeed contactor ensures that no electricity is sent back to the grid.

Parallel-redundant capable
Power the connected equipment with multiple uninterruptible power supplies to increase system redundancy

Parallel-capacity capable
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.

Flexible DC bus
Optimizes battery sizing and supports a wide range of energy storage technologies, including VRLA, Li-ion, and NiCd batteries.

Embedded Network Management Card
Allows you to remotely manage alert thresholds and monitor your UPS over EcoStruxure IT, Web, SNMP, or Modbus TCP and Modbus RTU.

Compact UPS
High-density technology and full front access make this UPS a footprint saver well suited for confined spaces.

High efficiency in double conversion mode
Consistently high power quality at high efficiency, even at low load levels. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

ECOnversion mode
Operating mode that ensures ultra high efficiency while charging the batteries, conditioning the load power factor and ensuring a Class 1 output voltage regulation.

Robust operation
No power derating in kW up to 40 degrees C or 104 degrees F.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

Wide input voltage range
Designed for harsh electrical environments to save battery life.

Modular UPS design
Provides design redundancy and fast serviceability with improved mean time to repair, via self-diagnosing, field-replaceable modules.

Multiple levels of service offers
With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like Schneider Electric to do for you.

EcoStruxure IT Expert
From your smartphone or computer, connect to our cloud-based, do-it-yourself monitoring system that collects, organizes, and distributes critical alerts and key information in real time, providing a unified view of even highly distributed physical infrastructure environments. Optimize your uptime and maintenance planning, and anticipate infrastructure issues before they occur with advanced analytics and performance benchmarking. Available in select countries.

Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
40 kVA
Uitgangsvermogen*
40000 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
340 V
Ingang operation voltage (max)*
460 V
Frequentie*
40/70 Hz
Uitgang operation voltage (min)
380 V
Uitgang operation voltage (max)
415 V
Output frequentie
50/60 Hz
Uitgangsspanningsregeling
1 procent
Stroom (max.)
72 A
Responstijd
3 ms
Aantal input fases
3
Input vermogensfactor
0,99
Crest factor
2.5:1
ECO mode
Ja
Output voltage THD
3 procent
Input stroom THD
3 procent
Geluidsniveau
65 dB
Geluidsalarm(en)
Ja

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Accu/Batterij voltage
480 V

Design

Vormfactor*
Tower
Kleur van het product*
Wit
Type beeldscherm
LCD
Internationale veiligheidscode (IP)
IP20
Certificering
IEC 62040-1-1, IEC 62040-2, OSHPD

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Hoogte, in bedrijf
0 - 1005,8 m
Hoogte bij opslag
0 - 3048 m

Gewicht en omvang

Breedte
550 mm
Diepte
847 mm
Hoogte
1970 mm
Gewicht
250 kg
Breedte verpakking
755 mm
Diepte verpakking
1010 mm
Hoogte verpakking
2082 mm
Gewicht verpakking
250 kg

Verpakking

Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
