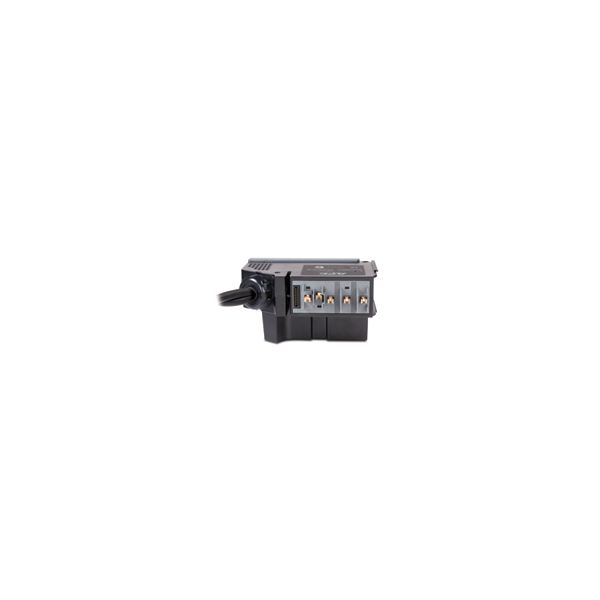

APC PDM2316IEC-3P30R-3, Gemeten, Gecontroleerd, Zwart, 3 AC-uitgang(en), 3 x IEC 309, CE,VDE, Web/SNMP

Niet op voorraad

Fabrikant APC
MPN PDM2316IEC-3P30R-3
EAN 0731304285939

APC PDM2316IEC-3P30R-3 energiedistributie 3 AC-uitgang(en) Zwart

Power Dist. Mod. 3X1 Pole 3 Wire RCD 16A 3XIEC309 660cm, 720cm, 780cm

A touch-safe Power Distribution Module (including circuit breaker, power cord, power connection, and circuit monitoring) that eliminates the need for hot work or shutdowns during expansion of the power distribution system.

Built-in Web/SNMP management
Full-featured management via a Web browser as well as comprehensive management from a Network Management System.

Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.

Smallest footprint
Minimizes your real estate expenses

System mobility
PDU equipment can easily be relocated to accommodate a changing data center environment.

Local and web-based monitoring
Status available to customers both in the data center and remotely

Multiple distribution options
Superior design flexibility enables a wide range of customer requirements to be addressed.

LED status indicators
Quickly understand unit and power status with visual indicators.

Modular Power Accessories Features & Benefits

Safety
Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection

Manageability

Power monitoring
Measure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra cost

Quick status information LEDs
Access status information about the performance of the Power Distribution Module

Convenience

Toolless installation of breakers

Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required

Global product offering
Standardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

PDU types*
Gemeten, Gecontroleerd
Kleur van het product
Zwart

Poorten & interfaces

Aantal AC uitgangen*
3 AC-uitgang(en)
Output-aansluitingen
3 x IEC 309

Kenmerken

LED-indicatoren
Ja
Certificering
CE,VDE

Beheerfuncties

Beheerplatform
Web/SNMP

Energie

Nominale input voltage*
400 V
AC-ingangsfrequentie
50 Hz
Netspanning, in bedrijf
230 V
Maximale ingang stroom per fase
16 A
Maximum totaalstroomverbruik per fase
16 A

Gewicht en omvang

Afmetingen (B x D x H)
432 x 406 x 254 mm
Gewicht
6,8 kg

Verpakking

Afmetingen verpakking (BxDxH)
432 x 406 x 254 mm
Gewicht verpakking
7,7 kg

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 30 °C
Temperatuur bij opslag
-15 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 4500 m

Technische details

Duurzaamheidscertificaten
RoHS
