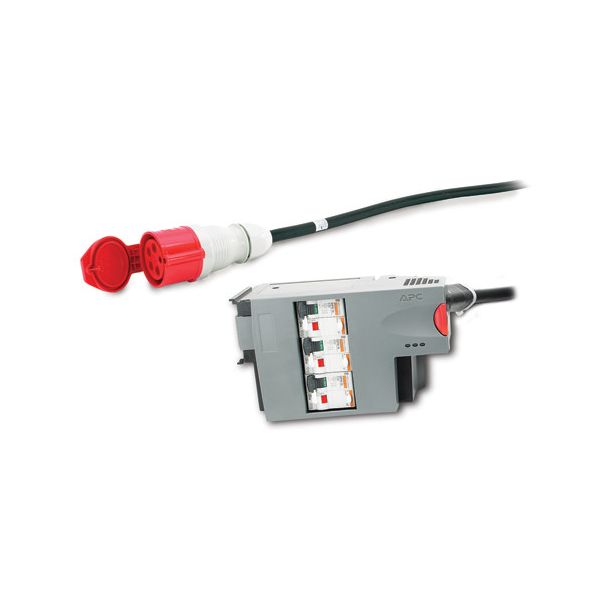

APC 3 Pole 5 Wire RCD 32A 30mA IEC309 energiedistributie

APC 3 Pole 5 Wire RCD 32A 30mA IEC309, IEC 309 32A 3P+N+PE, 1 x IEC 309 32A, 3,2 m, CE,VDE, 400 V, 50 Hz

Niet op voorraad

Fabrikant APC
MPN PDM332IEC-30R-320
EAN 0731304265610
€ 730,00 excl. BTW

APC 3 Pole 5 Wire RCD 32A 30mA IEC309 energiedistributie

APC Modular Power Accessories , Input: 400V 3PH , Input Connections: IEC 309 32A 3P+N+PE , Output: 400V 3PH , Output Connections: IEC 309 32A.
Includes: Installation guide.
- Built-in Web/SNMP management
Full-featured management via a Web browser as well as comprehensive management from a Network Management System.
- Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
- Smallest footprint
Minimizes your real estate expenses
- System mobility
PDU equipment can easily be relocated to accommodate a changing data center environment.
- Current Monitoring
Monitors the aggregate current draw per power distribution unit.
- Local and web-based monitoring
Status available to customers both in the data center and remotely
- Multiple distribution options
Superior design flexibility enables a wide range of customer requirements to be addressed.
- Safety
Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection

Manageability
- Power monitoring
Measure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra cost
- Quick status information LEDs
Access status information about the performance of the Power Distribution Module

Convenience
- Toolless installation of breakers
Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required
- Global product offering
Standardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Input-connectietype
IEC 309 32A 3P+N+PE
Output-aansluitingen
1 x IEC 309 32A

Kenmerken

Snoerlengte
3,2 m
Certificering
CE,VDE

Energie

Nominale input voltage*
400 V
AC-ingangsfrequentie
50 Hz
Netspanning, in bedrijf
400 V

Energie

Maximale ingang stroom per fase
32 A
Maximum totaalstroomverbruik per fase
32 A

Gewicht en omvang

Gewicht
3,1 kg

Verpakking

Afmetingen verpakking (BxDxH)
432 x 406 x 254 mm
Gewicht verpakking
4 kg
