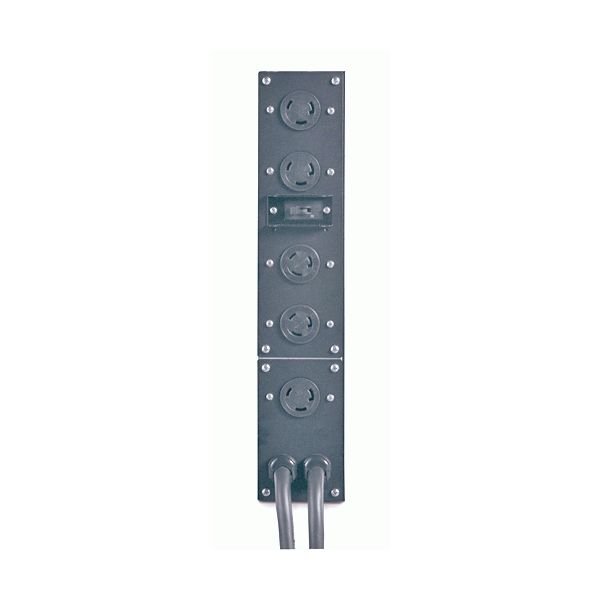

APC Service Bypass Panel - 200/208/240V energiedistributie Zwart
APC Service Bypass Panel - 200/208/240V, Zwart, NEMA L6-30P, 2x NEMA L6-20R 2x NEMA L6-30R, 3,05 m, CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778, 50 - 60 Hz
Niet op voorraad
Fabrikant
APC
MPN
SBP5000RMT2U
EAN
0731304212584
€ 1.049,00
excl. BTW
(€ 1269,29 incl. BTW)
APC Service Bypass Panel - 200/208/240V energiedistributie Zwart
19 inch Rack-Mountable
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Meets UL Requirements
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Meets UL Requirements
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Design
Kleur van het product
Zwart
Poorten & interfaces
Input-connectietype
NEMA L6-30P
Output-aansluitingen
2x NEMA L6-20R
2x NEMA L6-30R
Kenmerken
Snoerlengte
3,05 m
Certificering
CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778
Energie
AC-ingangsfrequentie
50 - 60 Hz
Laad-capaciteit
5000 VA
Maximale ingang stroom per fase
24 A
Maximum totaalstroomverbruik per fase
24 A
Gewicht en omvang
Afmetingen (B x D x H)
432 x 660 x 89 mm
Gewicht
13,6 kg
Verpakking
Afmetingen verpakking (BxDxH)
610 x 991 x 203 mm
Gewicht verpakking
24,5 kg
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-20 - 50 °C
Temperatuur bij opslag
-25 - 65 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
