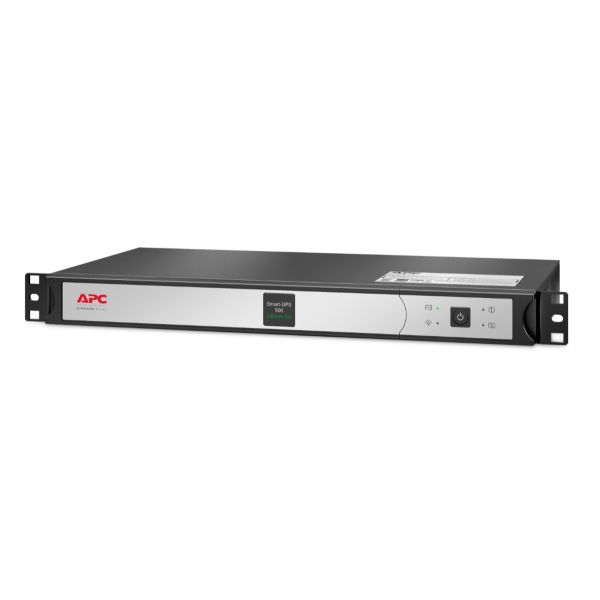

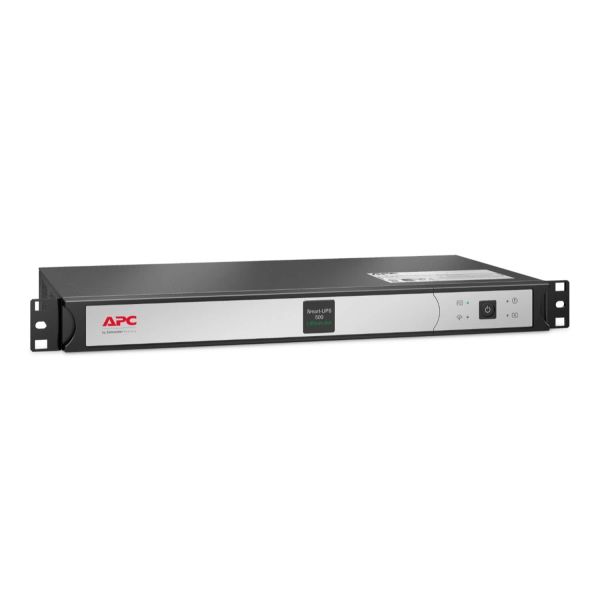

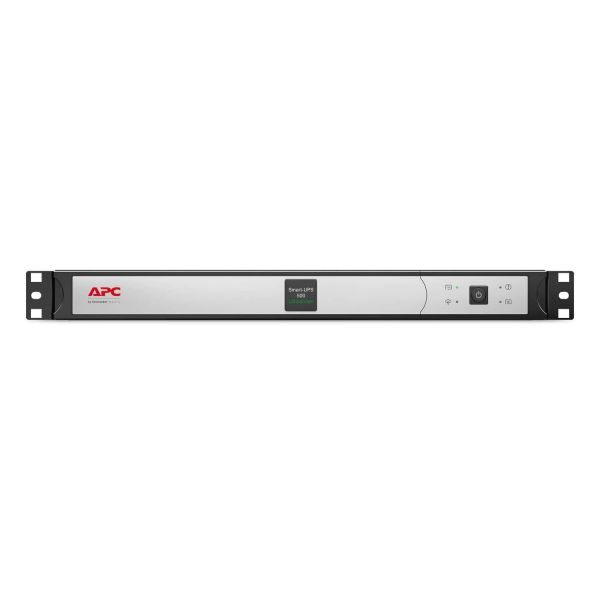

APC SCL500RM1UC UPS Line-interactive 0,5 kVA 400 W 4 AC-uitgang(en)

APC SCL500RM1UC, Line-interactive, 0,5 kVA, 400 W, Sinus, 92 V, 139 V

Nog 1 beschikbaar (bel voor reservering)

Fabrikant APC
MPN SCL500RM1UC
EAN 0731304344551
€ 629,00 excl. BTW

Omschrijving

APC by Schneider Electric Smart-UPS 500VA Rack/Floor Mountable UPS - 1U Rack-mountable - AVR - 3 Hour Recharge - 2.70 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 4 x NEMA 5-15R - 4 x Battery/Surge Outlet

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Line-interactive
Output power capacity*
0,5 kVA
Uitgangsvermogen*
400 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
92 V
Ingang operation voltage (max)*
139 V
Frequentie*
47/63 Hz
Uitgang operation voltage (min)
120 V
Uitgang operation voltage (max)
120 V
Output frequentie
50/60 Hz
Uitgangsspanningsregeling
5 procent
Automatic Voltage Regulation (AVR)
Ja
Surge energy rating
680 J
Responstijd
6 ms
Geluidsniveau
45 dB
Geluidsalarm(en)
Ja
Hoorbare alarmstanden
Alarm bij werking op batterij

Poorten & interfaces

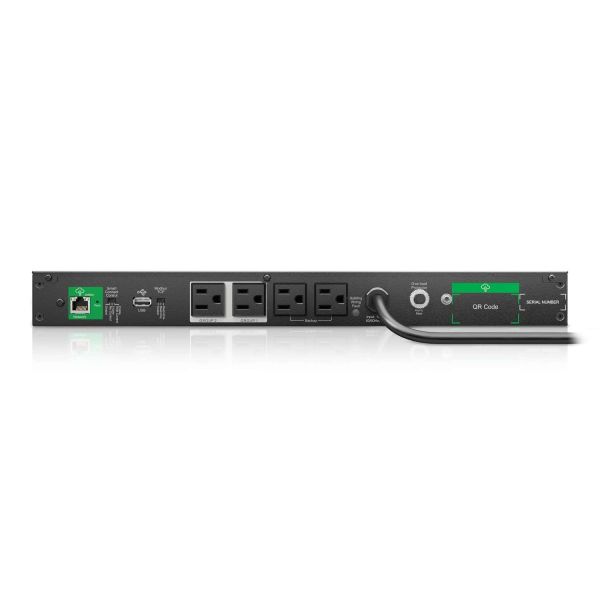

Stopcontacttypes
NEMA 5–15R
Stekker
NEMA 5-15P
Aantal AC uitgangen
4 AC-uitgang(en)
USB-poort
Ja
Aantal USB 2.0-poorten
1
USB-poorttype
USB Type-A
Aantal Ethernet LAN (RJ-45)-poorten
1

Accu/Batterij

Batterijtechnologie
Lithium-Ion (Li-Ion)
Acculevensduur (max)
10 jaar
Accu/Batterij oplaadtijd
3 uur

Design

Vormfactor*
Rackmontage
Rackcapaciteit
1U
Kleur van het product*
Zwart, Zilver
LED-indicatoren
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
10 - 90 procent
Hoogte, in bedrijf
0 - 1968 m
Hoogte bij opslag
0 - 14763 m

Certificaten

Certificaten van naleving
RoHS
Certificering
CSA C22.2 NO. 107.3, cULus, FCC 15 Class A, NOM, UL 1778, UL 1973

Inhoud van de verpakking

Rekbevestigingspakket
Ja
Meegeleverde kabels
USB-kabel
Snelle installatiehandleiding
Ja

Gewicht en omvang

Breedte
432 mm
Diepte
232 mm
Hoogte
44 mm
Gewicht
4,18 kg

Verpakking

Breedte verpakking
590 mm
Diepte verpakking
337 mm
Hoogte verpakking
168 mm
Gewicht verpakking
6 kg
