APC SRT6KRMXLIM UPS Dubbele conversie (online) 6 kVA 6000 W 13 AC-uitgang(en)

APC SRT6KRMXLIM, Dubbele conversie (online), 6 kVA, 6000 W, Sinus, 160 V, 275 V

Niet op voorraad

Fabrikant APC
MPN SRT6KRMXLIM
EAN 0731304320838
€ 5.979,00 excl. BTW

APC SRT6KRMXLIM UPS Dubbele conversie (online) 6 kVA 6000 W 13 AC-uitgang(en)

10/100 BaseT Connection

Connect the device to a network using a 10 or 100 BaseT connection

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

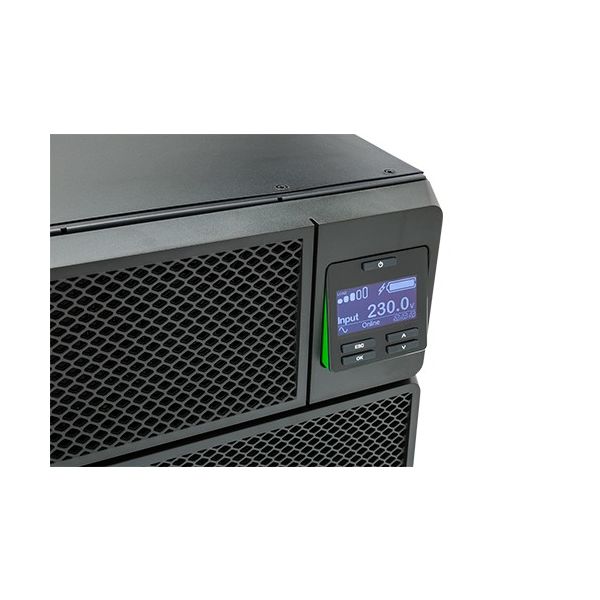

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

SmartSlot

Customize UPS capabilities with management cards.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Serial connectivity

Provides management of the UPS via a serial port.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
6 kVA
Uitgangsvermogen*
6000 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
160 V
Ingang operation voltage (max)*
275 V
Frequentie*
40 - 70 Hz
Uitgang operation voltage (min)
220 V
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Surge energy rating
480 J
Crest factor
3:1
Emergency Power Off (EPO)
Ja
Output voltage THD
3 procent
Geluidsniveau
55 dB
Spanningsbeveiliging
Ja
Geluidsalarm(en)
Ja
Auto-herstart
Ja
Temperatuurspanningscompensatie
Ja

Poorten & interfaces

Stopcontacttypes
C13 stekker, C19 stekker, IEC Jumpers
Stekker
Eindstation
Aantal AC uitgangen
13 AC-uitgang(en)
USB-poort
Ja
Aantal USB 2.0-poorten
1
Seriële interface
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1
Bekabelingstechnologie
10/100Base-T
SmartSlot
Ja

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Ondersteund aantal accu's/batterijen
1
Acculevensduur (max)
5 jaar
Accu/Batterij oplaadtijd
1 uur

Accu/Batterij

Hot-swap batterij
Ja
Automatische batterij test
Ja

Design

Vormfactor*
Rackmontage
Rackcapaciteit
4U
Kleur van het product*
Zwart
Type beeldscherm
LCD
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP20
Certificering
CE, EAC, RCM, VDE, REACH

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 15000 m

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
432 mm
Diepte
719 mm
Hoogte
174 mm
Gewicht
60 kg
Breedte verpakking
610 mm
Diepte verpakking
960 mm
Hoogte verpakking
370 mm

Verpakking

Verpakkingsvolume
67000 cm³

Logistieke gegevens

Producten per pallet
6 stuk(s)
Code geharmoniseerd systeem (HS)
85078000
