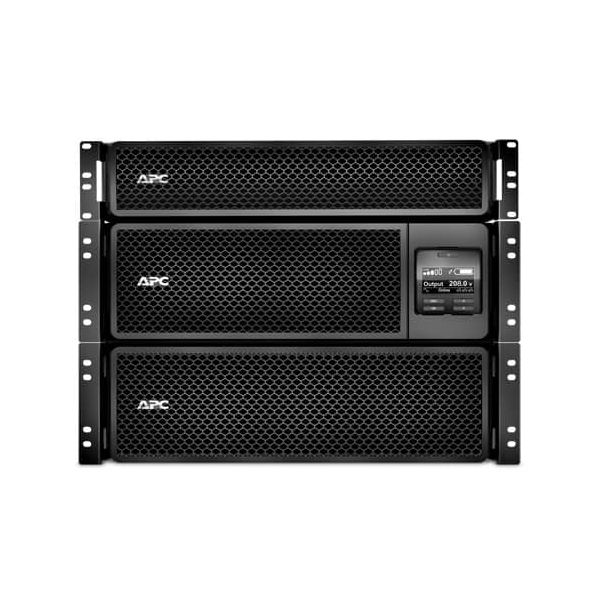

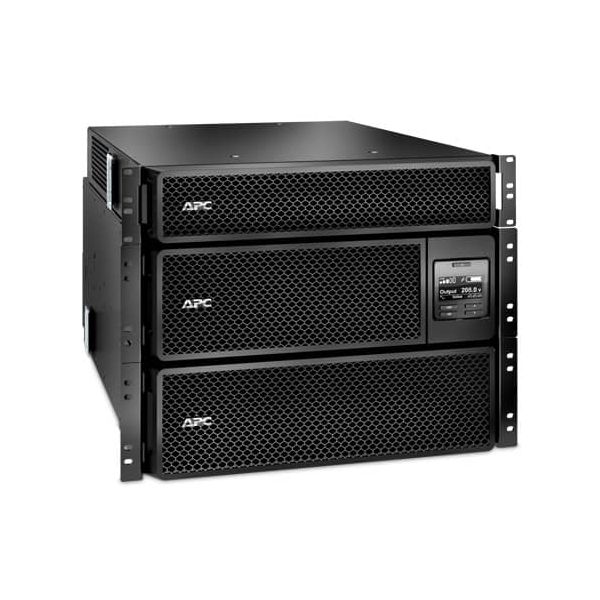

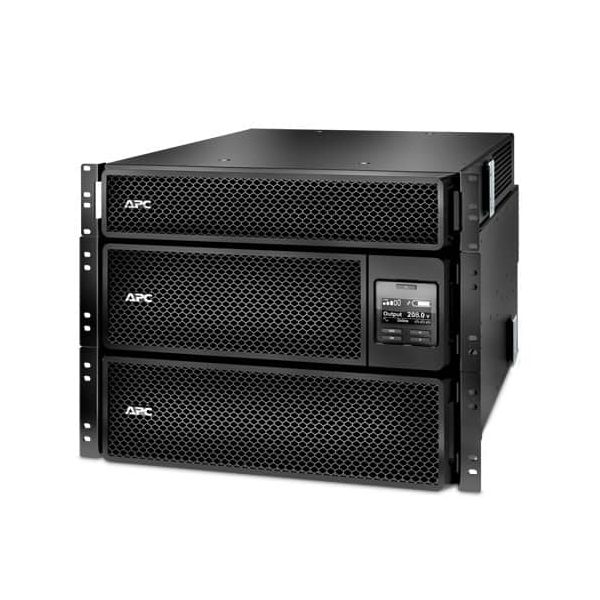

APC Smart- UPS Dubbele conversie (online) 8 kVA 8000 W 18 AC-uitgang(en)

APC Smart-UPS, Dubbele conversie (online), 8 kVA, 8000 W, Sinus, 100 V, 275 V

Niet op voorraad

Fabrikant APC
MPN SRT8KRMXLT-5KTF
EAN 0731304732969
€ 7.592,00 excl. BTW

APC Smart- UPS Dubbele conversie (online) 8 kVA 8000 W 18 AC-uitgang(en)

Marketing Features

- Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
- Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
- Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
8 kVA
Uitgangsvermogen*
8000 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
100 V
Ingang operation voltage (max)*
275 V
Uitgang operation voltage (max)
208 V
Output frequentie
50/60 Hz
Surge energy rating
480 J
Crest factor
3:1
Emergency Power Off (EPO)
Ja
Output voltage THD
2 procent
Geluidsniveau
55 dB
Spanningsbeveiliging
Ja
Geluidsalarm(en)
Ja
Web-gebaseerd management
Ja
Auto-herstart
Ja

Poorten & interfaces

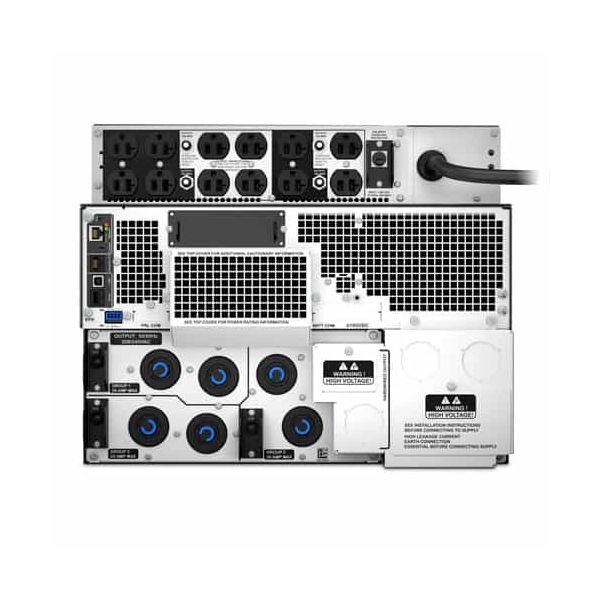

Stopcontacttypes
Hard Wire 3-wire (2PH + G), NEMA 5–20R, NEMA L6-20R, NEMA L6-30R
Aantal AC uitgangen
18 AC-uitgang(en)
USB-poort
Ja
Aantal USB 2.0-poorten
1
Soort serieële aansluiting
RJ-45
Seriële poort(en)
1
Aantal Ethernet LAN (RJ-45)-poorten
1
Bekabelingstechnologie
10/100Base-T
SmartSlot
Ja

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Accu/Batterij oplaadtijd
1,5 uur
Hot-swap batterij
Ja
Automatische batterij test
Ja
Koude start
Ja

Design

Vormfactor*
Rackmontage/toren
Rackcapaciteit
8U

Design

Kleur van het product*
Zwart

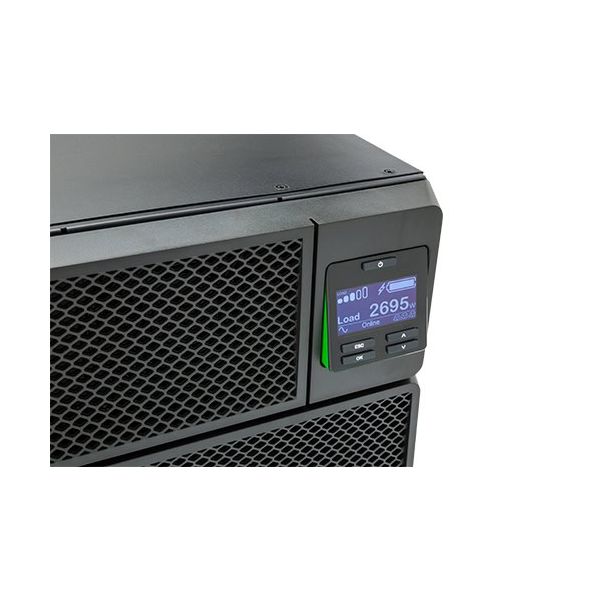

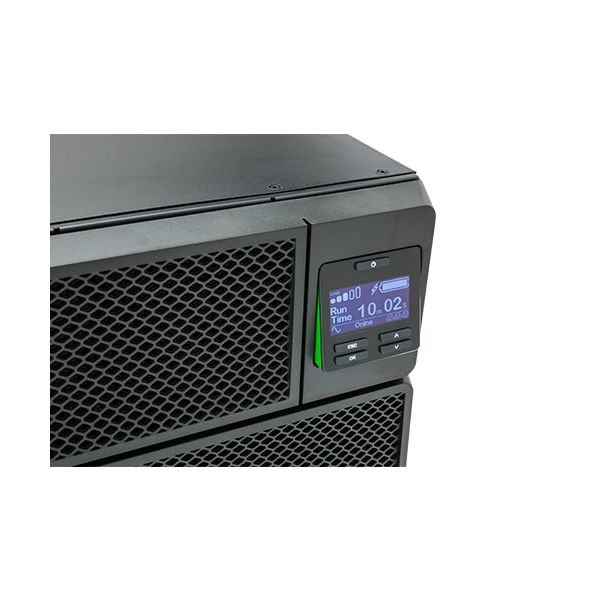

Type beeldscherm
LCD
LED-indicatoren
Status
Internationale veiligheidscode (IP)
IP20
Certificering
CSA C22.2 No.107.3-05, FCC Part 15 Class A, UL 1778

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 15000 m

Technische details

Duurzaamheidscertificaten
RoHS, ENERGY STAR

Gewicht en omvang

Breedte
432 mm
Diepte
715 mm
Hoogte
352 mm
Gewicht
154,7 kg
Breedte verpakking
622 mm
Diepte verpakking
1000 mm
Hoogte verpakking
715 mm
Gewicht verpakking
179 g

Verpakking

Rekbevestigingspakket
Ja
Zaaghouder
Ja
Meegeleverde kabels
USB-kabel
Temperatuursensor
Ja
Snelle installatiehandleiding
Ja
Ondersteunings-cd
Ja
Garantiekaart
Ja
Software-cd
Ja

Logistieke gegevens

Producten per pallet
1 stuk(s)
