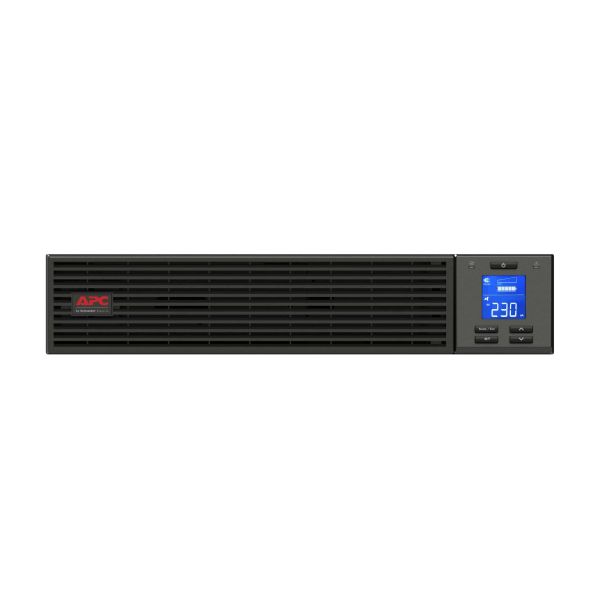

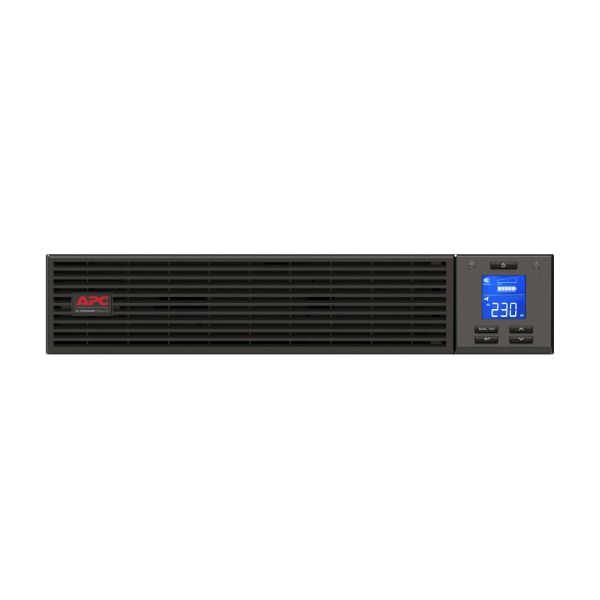

APC Easy UPS SRV RM 6000VA 230V, No Battery, Extended Runtime

APC Easy UPS SRV RM 6000VA 230V, No Battery, Extended Runtime, Dubbele conversie (online), 6 kVA, 6000 W, Zuivere sinus, 40/70 Hz, 220 V

Niet op voorraad

Fabrikant APC
MPN SRVPM6KRIL
EAN 0731304343844
€ 2.548,00 excl. BTW

APC Easy UPS SRV RM 6000VA 230V, No Battery, Extended Runtime

APC Easy UPS On-Line SRV RM Extended Runtime 6000VA 230V No Battery

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditionsHigh quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Includes: CD with software, USB cable, User Manual.

Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.

ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

EPO: Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.

Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling.

Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.

LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.

Serial connectivity: Provides management of the UPS via a serial port.

USB connectivity: Provides management of the UPS via a USB port (not available on all models).
  • USB connection: Use your PC to access additional power protection and management features for your UPS via a USB Port
  • Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring
  • Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
  • Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
6 kVA
Uitgangsvermogen*
6000 W
Golfvorm*
Zuivere sinus
Frequentie*
40/70 Hz
Uitgang operation voltage (min)
220 V
Uitgang operation voltage (max)
240 V
Surge energy rating
600 J
Crest factor
3:1
ECO mode
Ja
Emergency Power Off (EPO)
Ja
Geluidsalarm(en)
Ja
Hoorbare alarmstanden
Alarm bij werking op batterij, Alarm bij laag batterijniveau, Alarm bij overbelasting
Auto-herstart
Ja
Onderhoudsvrij - geen olie nodig
Ja

Poorten & interfaces

Stekker
Eindstation
USB-poort
Ja
Aantal USB 2.0-poorten
1
USB-poorttype
USB Type-B
Seriële interface
Ja
Seriële poort(en)
1
Noodstop-aansluiting (EPO)
Ja
SmartSlot
Ja

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Accu/Batterij oplaadtijd
3 uur
Automatische batterij test
Ja

Design

Vormfactor*
Rackmontage
Rackcapaciteit
2U

Design

Kleur van het product*
Zwart
Type beeldscherm
LCD
LED-indicatoren
Ja
Certificering
CE, IEC 62040-1-1, IEC 62040-1-2 REACH

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 14763,6 m

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
438 mm
Diepte
615 mm
Hoogte
87 mm
Gewicht
14 kg
Breedte verpakking
600 mm
Diepte verpakking
760 mm
Hoogte verpakking
240 mm
Gewicht verpakking
18 kg

Verpakking

Meegeleverde kabels
USB-kabel
Gebruikershandleiding
Ja
Software-cd
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000

Overige specificaties

Netspanning, in bedrijf
230 V
Nominale input voltage
230 V
