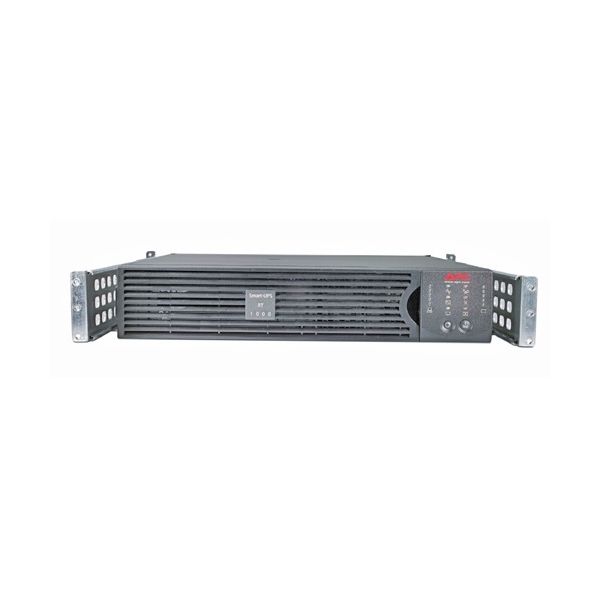

APC Smart-UPS On-Line + War 3YR Dubbele conversie (online) 1 kVA 700 W 6 AC-uitgang(en)

APC Smart-UPS On-Line + War 3YR, Dubbele conversie (online), 1 kVA, 700 W, Sinus, 100 V, 280 V

Niet op voorraad

Fabrikant APC
MPN SURT1000RMXLI-NC
EAN 0731304324195
€ 1.577,00 excl. BTW

APC Smart-UPS On-Line + War 3YR Dubbele conversie (online) 1 kVA 700 W 6 AC-uitgang(en)

Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
1 kVA
Uitgangsvermogen*
700 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
100 V
Ingang operation voltage (max)*
280 V
Frequentie*
50/60 Hz
Uitgang operation voltage (min)
220 V
Uitgang operation voltage (max)
240 V
Surge energy rating
240 J
Efficientie
88,9 procent
Crest factor
3:1
Geluidsniveau
50 dB
Spanningsbeveiliging
Ja
Geluidsalarm(en)
Ja
Auto-herstart
Ja

Poorten & interfaces

Stopcontacttypes
C13 stekker
Stekker
C14 stekker
Aantal AC uitgangen
6 AC-uitgang(en)
Number of output IEC jumpers
2
Seriële interface
Ja
Soort serieële aansluiting
RS-232
SmartSlot
Ja

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Batterij capaciteit
328 VAh
Typische backup tijd op halve lading
32 min
Acculevensduur (max)
5 jaar
Accu/Batterij oplaadtijd
3 uur
Hot-swap batterij
Ja
Automatische batterij test
Ja

Accu/Batterij

Koude start
Ja

Design

Vormfactor*
Rackmontage/toren
Rackcapaciteit
2U
Kleur van het product*
Zwart
LED-indicatoren
Status
Internationale veiligheidscode (IP)
IP20
Certificering
C-tick, CE, EN 50091-1, EN 50091-2, EN 60950, EN 61000-3-2, GOST, VDE

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 15000 m

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
432 mm
Diepte
483 mm
Hoogte
85 mm
Gewicht
23 kg
Breedte verpakking
630 mm
Diepte verpakking
594 mm
Hoogte verpakking
286 mm
Gewicht verpakking
27,8 kg

Logistieke gegevens

Producten per pallet
4 stuk(s)
Code geharmoniseerd systeem (HS)
85078000
Hoeveelheid per (buitenste) hoofdverpakking
1 stuk(s)
