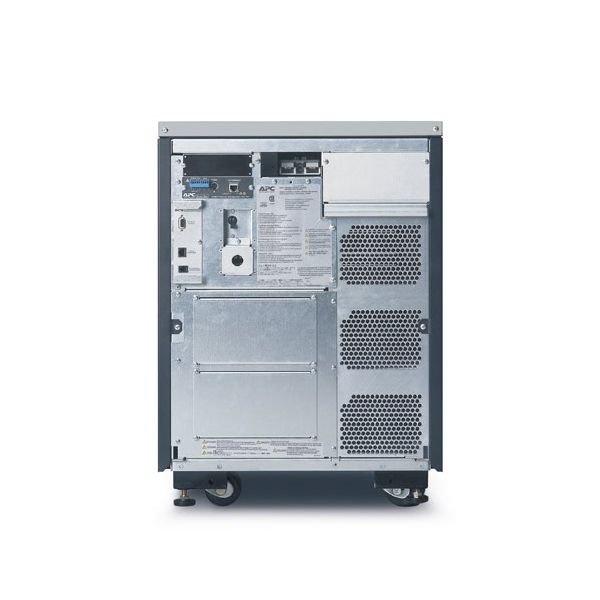

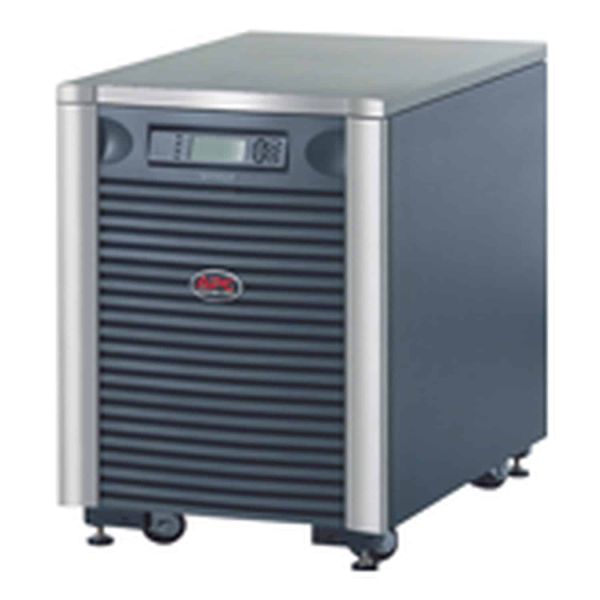

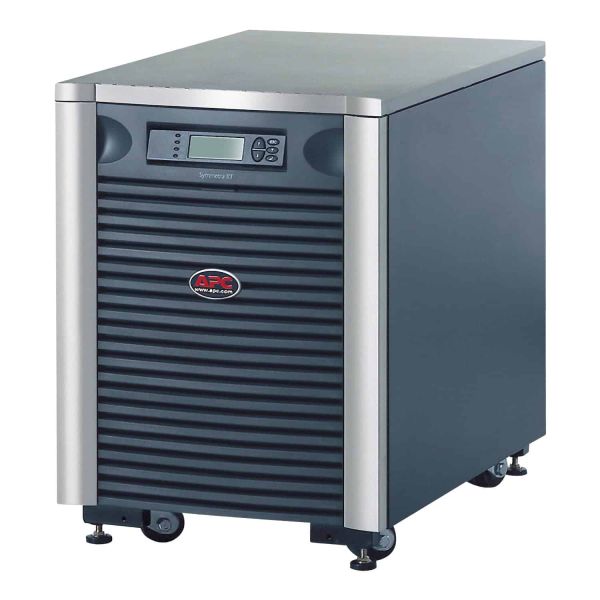

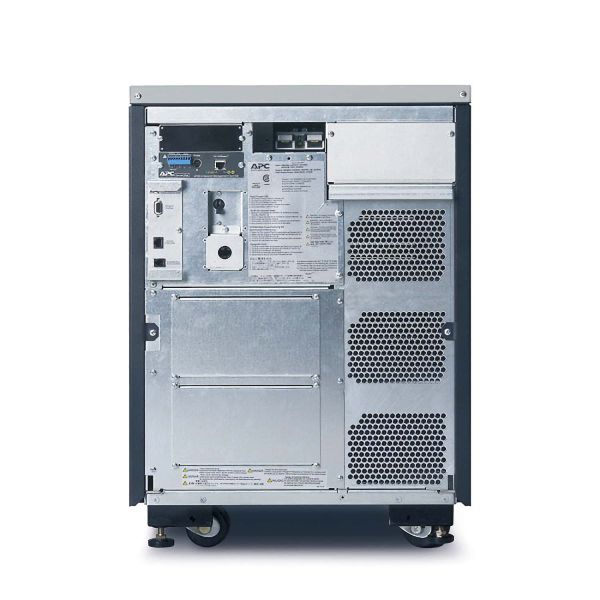

APC SYA4K8I UPS 4 kVA 2800 W

APC SYA4K8I, 4 kVA, 2800 W, 7,5 min, 20 min, SYBT5, Zwart

Niet op voorraad

Fabrikant APC
MPN SYA8K8I
EAN 0731304221548
€ 11.193,00 excl. BTW

APC SYA4K8I UPS 4 kVA 2800 W

APC Symmetra LX, 4000VA/2800W, Input 230V, 400V 3PH/Output 230V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model

Includes: CD with software, Documentation CD, Installation Guide, User Manual, Web/SNMP Management Card



General Features:

Audible Alarms,
Automatic internal bypass,
Automatic restart of loads after UPS shutdown,
Automatic self-test,
Battery modules connected in parallel,
Cold-start capable,
Configurable for N+1 internal redundancy,
Disconnected battery notification,
Field-replaceable power distribution panel,
Frequency and voltage regulation,
Generator Compatible,
Hot-swappable batteries,
Hot-swappable intelligence modules,
Hot-swappable power modules,
InfraStruXure Manager Compatible,
Input Power Factor Correction,
Intelligent Battery Management,

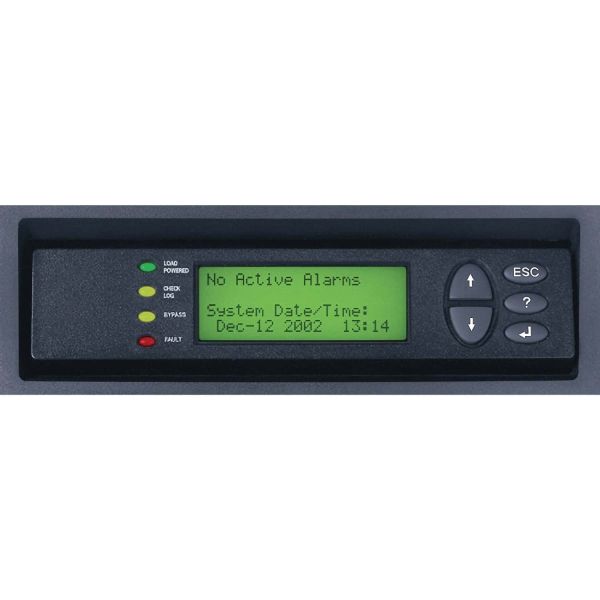

LCD display,
Manageable external batteries,
Modular design,
Network manageable,
Plug-and-Play external batteries,
Power conditioning,
Power Modules connected in parallel,
Predictive failure notification,
Programmable Frequency,
Rack/Tower Convertible,
Redundant Intelligence Modules,
Removable input/output wiring tray,
Resettable circuit breakers,
Safety-agency approved,
Scalable Power Capacity,
Scalable runtime,
Shippable with modules installed,
SmartSlot,
User-replaceable batteries,
User-replaceable intelligence modules,
User-replaceable power modules.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Output power capacity*
4 kVA
Uitgangsvermogen*
2800 W
Emergency Power Off (EPO)
Ja

Accu/Batterij

Typische backup tijd op volledige lading
7,5 min
Typische backup tijd op halve lading
20 min
Vervangings-batterij cartridge
SYBT5

Design

Kleur van het product*
Zwart

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m

Gewicht en omvang

Gewicht
158 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000

Overige specificaties

Aansluitingen

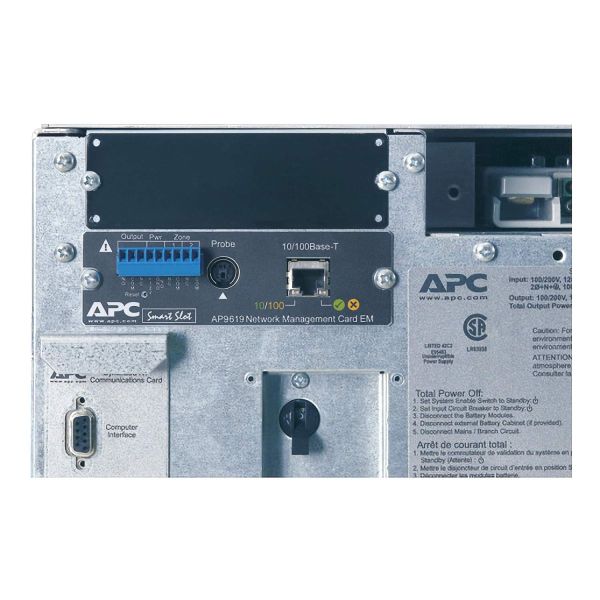

Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619
Type batterij
Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Interface
DB-9 RS-232, Smart-Slot
Output-aansluitingen
(1) Hard Wire 3-wire (H N + G)
Input-connectietype
Hard Wire 3 wire (1PH+N+G)
Afmetingen (B x D x H)
480 x 730 x 660 mm
Netspanning, in bedrijf
230 V
Output Voltage voetnoot
Configurable for 220: 230 or 240 nominal output voltage
