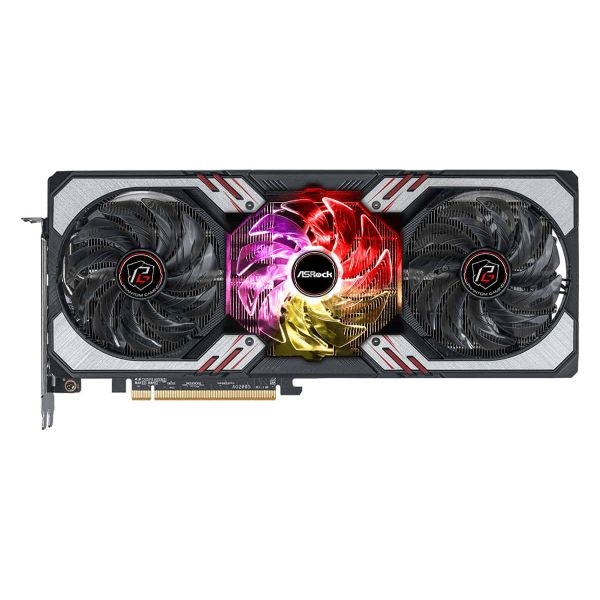

Asrock Phantom Gaming RX 6700 XT 12GB OC AMD Radeon RX 6700 XT GDDR6

Asrock Phantom Gaming RX 6700 XT 12GB OC, Radeon RX 6700 XT, 12 GB, GDDR6, 192 Bit, 7680 x 4320 Pixels, PCI Express x16 4.0

Niet op voorraad

Fabrikant ASRock
MPN 90-GA2EZZ-00UANF
EAN 4710483934209
€ 1.553,00 excl. BTW

Asrock Phantom Gaming RX 6700 XT 12GB OC AMD Radeon RX 6700 XT GDDR6

OC Edition
Great Performance.

Delivers great performance which is more higher than reference cards based on the solid hardware design.

Phantom Gaming 3X Cooling System
For Cool and Silent.

Crafted for the best balance between the thermal efficiency and silence by all the details

Striped Axial Fan
Designed For Enhanced Airflow.

ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.

Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-fit Heatpipe
Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base
Maximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding
Improve Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste
Perfect Thermal Teamwork.

Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad
Better Heat Transfer.

The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque
Optimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

0dB Silent Cooling
Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Polychrome SYNC
Create your own unique colorful light effects.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED On/Off Switch
On or Off? Switch as You Want.

You can switch not only the build-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.

ARGB Pin-header
More ARGB, More Fancy.

With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

Reinforced Metal Frame
Enhances the structure to prevent the PCB from being bent.

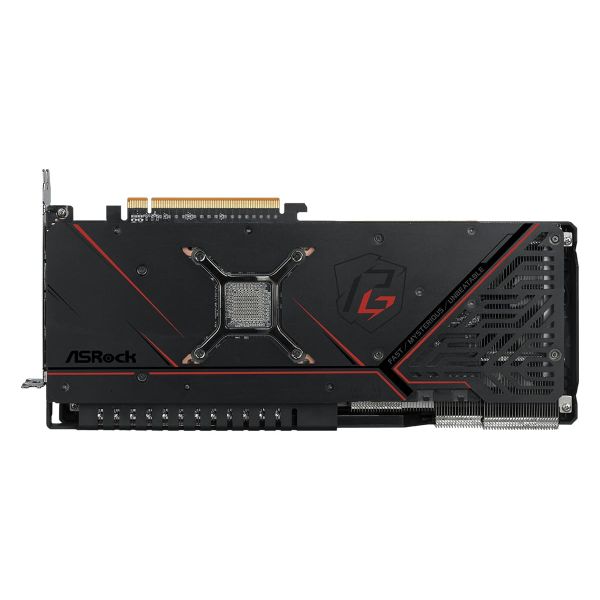

Stylish Metal Backplate
Solid, Fancy, Cool.

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 60A continuous current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

ASRock Tweak 2.0
Pro and Easy-to-Use Tuning Utility.

Provides the smart fan speed control and instant performance tweaking.

8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

PCI Express 4.0 Support
This graphics card features PCI Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.

AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.

Introducing AMD Radeon RX 6700 XT graphics cards, featuring the breakthrough AMD RDNA 2 architecture. Engineered to deliver the ultimate 1440p gaming experience, the AMD Radeon RX 6700 XT powers a new generation of gaming with vivid visuals and elevated experiences.

Powerhouse Performance for 1440p
AMD Radeon RX 6700 XT graphics cards deliver serious 1440p gaming and ultra-high frame rates. Get up to 40 high-performance compute units, groundbreaking AMD Infinity Cache, and up to 12GB of dedicated GDDR6 memory. Experience new levels of gaming performance with AMD Smart Access Memory technology when you pair an AMD Radeon RX 6700 XT graphics card with an AMD Ryzen 5000 Series desktop processor.

Vivid Visuals
With immersive gaming technologies and support for DirectX 12 Ultimate, AMD Radeon RX 6700 XT graphics cards draw you into the action. Experience 1440p gaming with realistic lighting, shadows, and reflections along with rich detail, thanks to DirectX Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RDNA 2 architecture.

One Gaming DNA for PCs and Consoles
AMD RDNA 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi-gaming platforms, like no other graphics architecture before.

Elevated Experiences
Level up to ultimate responsiveness and smooth gaming with low-latency gaming technology from AMD Radeon Anti-Lag and AMD Radeon Boost.1, 2 Enhance your gaming experience with the latest HDMI 2.1 VRR technology, with over 1300 AMD FreeSync™ gaming displays to choose from, and support for motherboards with PCIe 4.0 technology.
  • Polychrome SYNC
  • Phantom Gaming 3X Cooling System
  • Striped Axial Fan
  • Reinforced Metal Frame
  • Stylish Metal Backplate
  • 0dB Silent Cooling
  • Super Alloy Graphics Card

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

CUDA*
Nee
Grafische processor familie*
AMD
Grafische processor*
Radeon RX 6700 XT
Frequentie van processor*
2457 MHz
Processor boost clock speed
2622 MHz
Processor boost kloksnelheid (gamemodus)
2548 MHz
Maximum resolutie*
7680 x 4320 Pixels
Stream processors
2560
Maximum displays per videocard
4
FireStream
Nee

Geheugen

Grafische geheugen*
12 GB
Grafische adapter, soort geheugen*
GDDR6
Geheugenbus*
192 Bit
Kloksnelheid geheugen
16000 MHz
Geheugen bandbreedte (max)
16 GB/s

Poorten & interfaces

Soort aansluiting*
PCI Express x16 4.0

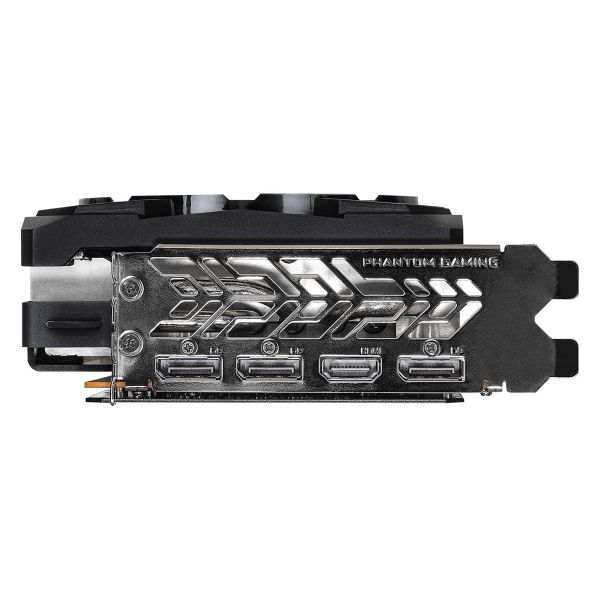

Aantal HDMI-poorten*
1
HDMI versie
2.1
Aantal DisplayPorts*
3
DisplayPort versie
1.4

Prestatie

PhysX
Nee
Geïntegreerde TV Tuner*
Nee

Prestatie

DirectX versie*
1‎2 Ultimate
OpenGL versie*
4.6
Klaar voor Virtual Reality (VR)
Ja
HDCP
Ja
Dual Link DVI*
Nee

Design

Type koeling*
Actief
Aantal ventilatoren
3 ventilator(en)
Aantal sloten
2,75
Belichting
Ja
Kleur van de verlichting
Multi
Kleur van het product
Zwart, Grijs

Energie

Minimum system power voorraad*
700 W
Extra geleverde power connectors
2x 8-pin

Inhoud van de verpakking

Snelle installatiehandleiding
Ja

Gewicht en omvang

Gewicht
1,19 kg
Diepte
305 mm
Hoogte
55 mm
Breedte
131 mm

Verpakking

Type verpakking
Doos
