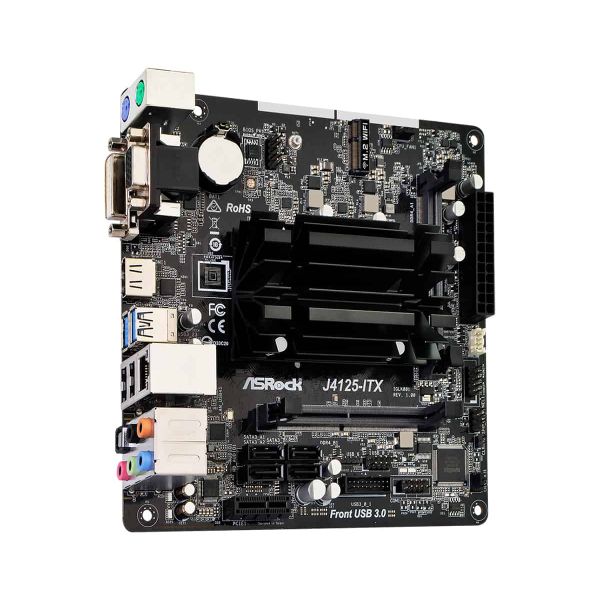

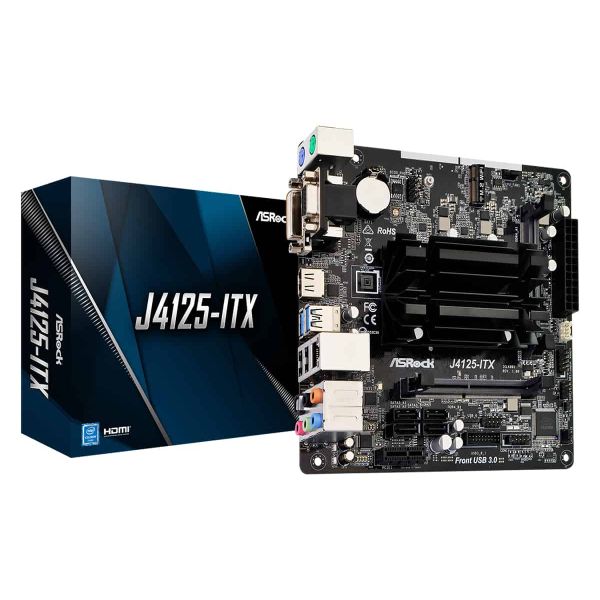

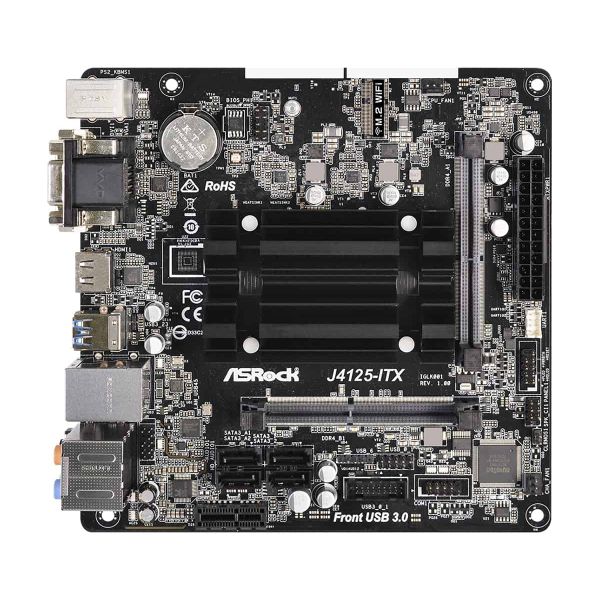

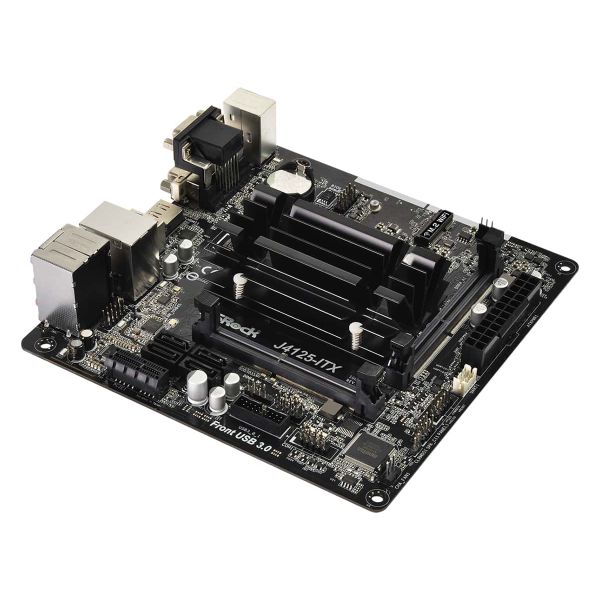

Asrock J4125-ITX BGA 1090 mini ITX

Asrock J4125-ITX, Intel, BGA 1090, J4125, 8 GB, DDR4-SDRAM, 8 GB

Niet op voorraad

Fabrikant ASRock
MPN 90-MXBCE0-A0UAYZ
EAN 4710483930522
€ 203,00 excl. BTW

Asrock J4125-ITX BGA 1090 mini ITX

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity

Supports DDR4 SO-DIMMs
Supports the latest DDR4 SO-DIMM memory modules and most extreme memory performance!

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
  • ASRock Super Alloy
  • Intel® Quad-Core Processor J4125 (up to 2.7 GHz)
  • Supports DDR4 2133/2400 SO-DIMM
  • 1 PCIe 2.0 x1, 1 M.2 (Key E)
  • Graphics Output Options: D-Sub, HDMI, DVI-D
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 4 SATA3
  • 4 USB 3.2 Gen1 (2 Front, 2 Rear)
  • Supports Full Spike Protection, ASRock Live Update & APP Shop

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
BGA 1090
Max. aantal SMP-processoren
1
Processormodel
J4125
Aantal processorkernen
4
Maximaal intern geheugen ondersteund door processor
8 GB

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
SO-DIMM
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
2133,2400 MHz
Maximum intern geheugen*
8 GB
Ondersteunde geheugenmodule capaciteiten
1GB, 4GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
SATA III
Maximum aantal HDD's per behuizing
4
Aantal storage drives ondersteund
4

Grafisch

Ingebouwde grafische adapter
Ja
Grafische adapter-familie
Intel
Grafische adapter
Intel® UHD Graphics 600
Maximum resolutie
4096 x 2160 Pixels
HDCP
Ja
OpenGL versie
4.4
DirectX versie
12.0
Aantal displays ondersteund
3

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
Aantal SATA III connectors*
4
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
1
Chassis intrusion aansluiting
Ja
COM aansluitingen
1

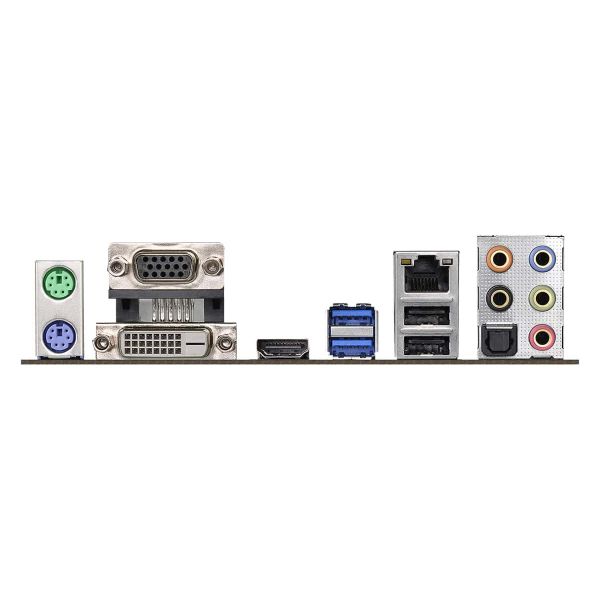

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2

Aansluitingen achterzijde

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
1
PS/2 poort(en)
2
VGA (D-Sub)poort(en)*
1
Aantal HDMI-poorten*
1
DVI-D poorten*
1
Hoofdtelefoonuitgangen
1
Microfoon, line-in ingang
Ja
S/PDIF-uitgang
Ja
USB-connectortype
USB Type-A

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
LAN controller
Realtek RTL8111H
Wake-on-LAN
Ja
Wifi*
Nee

Kenmerken

Audiochip
Realtek ALC892
Audio-uitgangskanalen*
7.1 kanalen
PC gezondheids monitor
CPU, Ventilator, LED, Voeding, Temperatuur, Spanning
Component voor*
PC
Moederbord form factor*
mini ITX
Moederbord chipset familie*
Intel
Type koeling
Actief
Type stroombron
ATX
Ondersteunt Windows
Windows 10 x64

Uitbreidingsmodules

PCI Express x1 (Gen 2.x) slots
1
Aantal M.2 (M) slots
1

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit
ACPI version
5.0
Systeem Management BIOS (SMBIOS) versie
3.0

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
170 mm
Diepte
170 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
