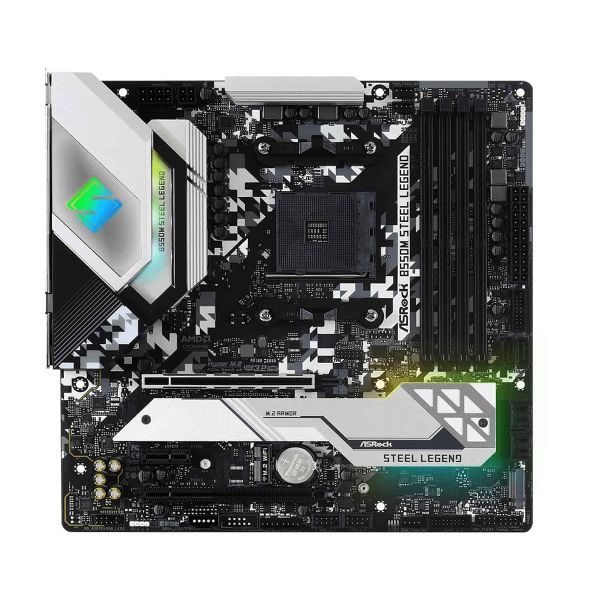

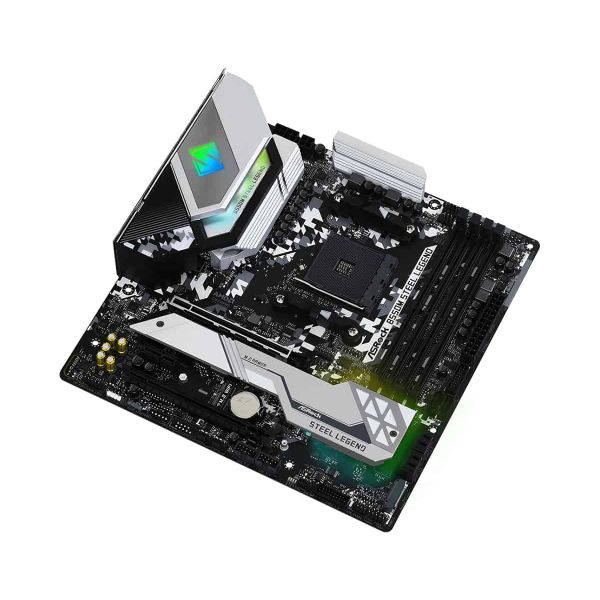

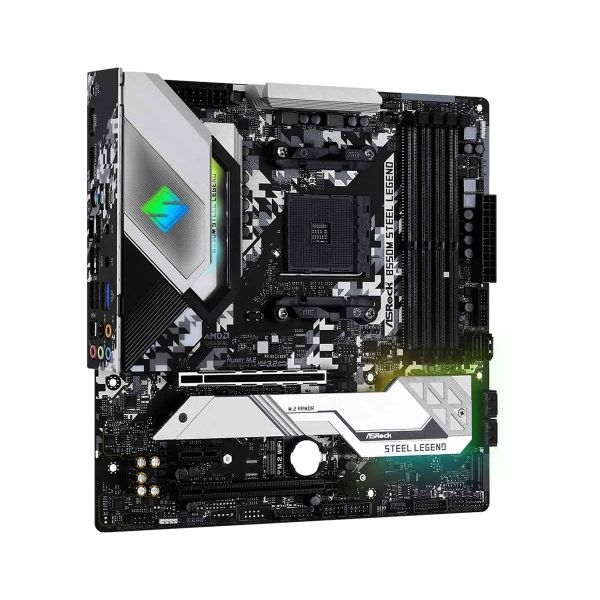

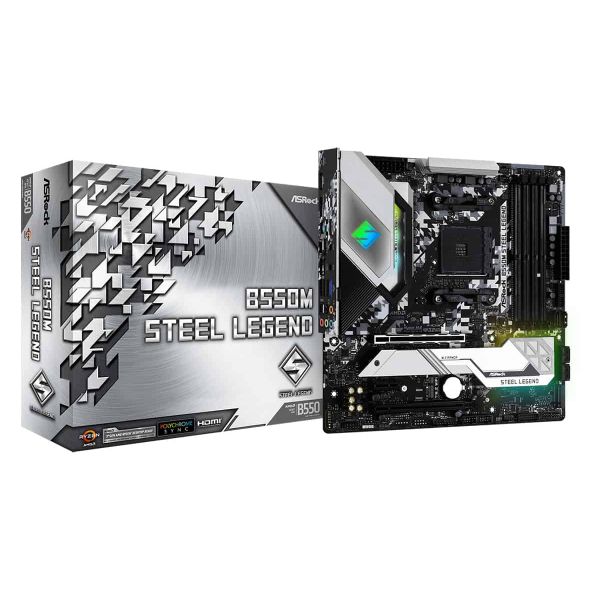

Asrock B550M Steel Legend AMD B550 Socket AM4 micro ATX

Asrock B550M Steel Legend, AMD, Socket AM4, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd..., Socket AM4, DDR4-SDRAM, 128 GB

Niet op voorraad

Fabrikant ASRock
MPN 90-MXBCV0-A0UAYZ
EAN 4710483931505
€ 241,00 excl. BTW

Asrock B550M Steel Legend AMD B550 Socket AM4 micro ATX

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

STEEL FOREVER
Get Endless Performance Possibilities with Steel Style

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Hi-Density Power Connector
Reduces 23% power loss and decreases the connector’s temperature by 22 degrees Celsius.
8+4 12V Power Connectors
24-pin ATX Power Connector

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

A SOLID M.2-SOLUTION PERFORMER
Dual M.2 For SSD, Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.
  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
  • 10 Power Phase Design, Dr. MOS
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort
  • AMD CrossFireX™
  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
  • 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
  • 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
  • Dragon 2.5G LAN

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
AMD
Processor socket*
Socket AM4
Compatibele processors*
3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Max. aantal SMP-processoren
1
Supported processor sockets
Socket AM4

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
ECC
Ja
Non-ECC
Ja
Supported memory clock speeds
2133,2400,2667,2933,3200,3333,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533 MHz
Ondersteunde geheugenkloksnelheid (max)
4533 MHz
Maximum intern geheugen*
128 GB
Ondersteunde geheugenmodule capaciteiten
4GB, 8GB, 16GB, 32GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA III
RAID support
Ja
Soorten RAID
0, 1, 10

Grafisch

Ondersteuning voor parallel processing*
CrossFireX, Quad-GPU CrossFireX
Maximum resolutie
5120 x 2880 Pixels
HDCP
Ja
Aantal displays ondersteund
2

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
2
Aantal SATA III connectors*
6
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
4
Peripheral (Molex) power connectors (4-pin)
2
EPS power connector (8-pin)
Ja
TPM connector
Ja
12V vermogen-connector
Ja
RGB LED-aansluitrail
Ja

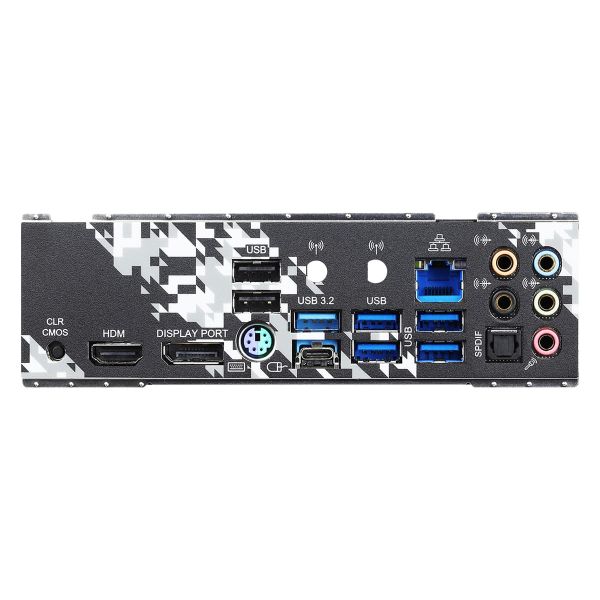

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1
Aantal Ethernet LAN (RJ-45)-poorten*
1
PS/2 poort(en)
1
Aantal HDMI-poorten*
1

Aansluitingen achterzijde

Aantal DisplayPorts
1
DisplayPort versie
1.4
Microfoon, line-in ingang
Ja
S/PDIF-uitgang
Ja
WiFi-AP antenna jack
2

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Dragon RTL8125BG
Wake-on-LAN
Ja
Wifi*
Nee

Kenmerken

Chipset moederbord*
AMD B550
Audiochip
Realtek ALC1200
Audio-uitgangskanalen*
7.1 kanalen
PC gezondheids monitor
CPU, Ventilator, Temperatuur, Spanning, Water cooling
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
AMD
Type stroombron
ATX
Ondersteunt Windows
Windows 10 x64, Windows 11 x64

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) sleuven
1
Aantal M.2 (M) slots
2

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
256 Mbit
ACPI version
5.1
Clear CMOS knop
Ja
Plug and play
Ja
Systeem Management BIOS (SMBIOS) versie
2.3

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
244 mm
Diepte
244 mm
Hoogte
70 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Meegeleverde drivers
Ja

Overige specificaties

Gewicht
465 g
Snelle installatiehandleiding
Ja
Aantal M.2 € slots
1
