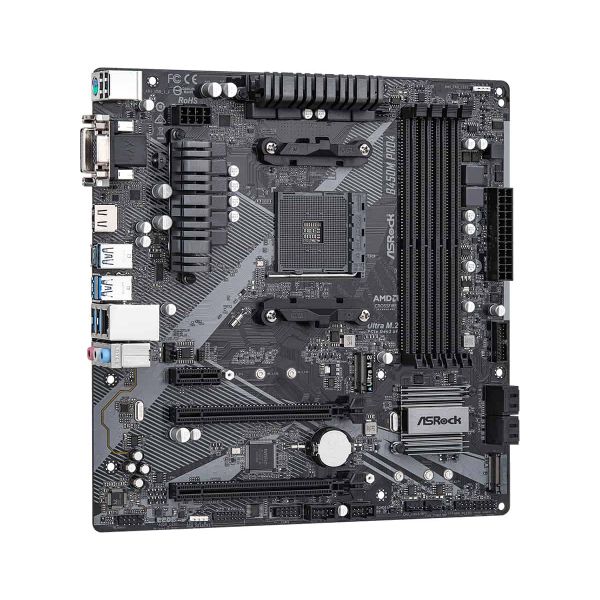

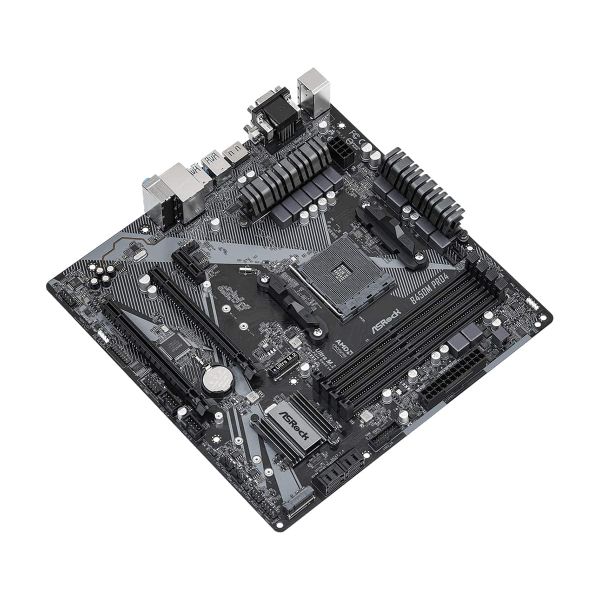

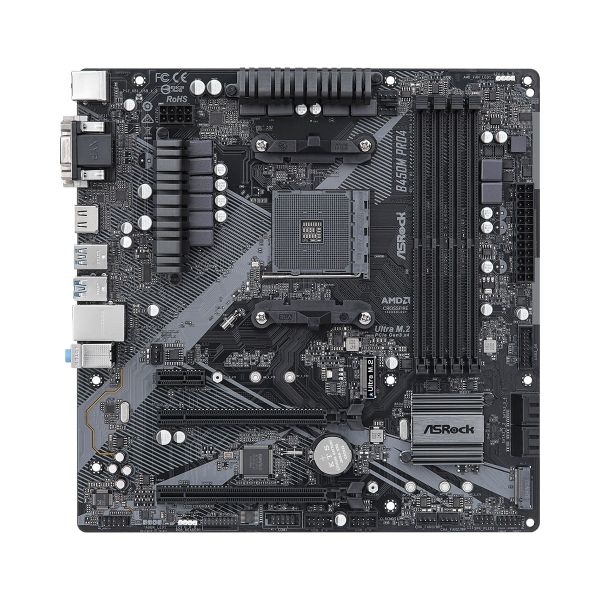

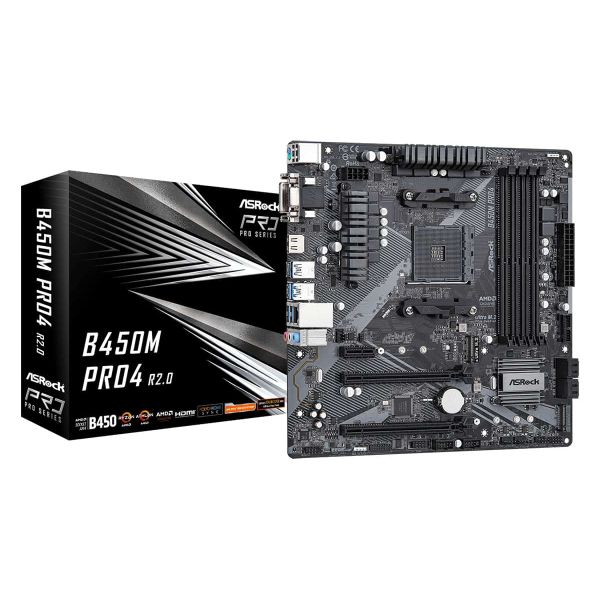

Asrock B450M Pro4 R2.0 AMD B450 Socket AM4 micro ATX

Asrock B450M Pro4 R2.0, AMD, Socket AM4, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, DDR4-SDRAM, 128 GB, DIMM

Niet op voorraad

Fabrikant ASRock
MPN 90-MXBEG0-A0UAYZ
EAN 4710483932793
€ 68,00 excl. BTW

Asrock B450M Pro4 R2.0 AMD B450 Socket AM4 micro ATX

10 POWER PHASE DESIGN
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Dual M.2 For SSD
Two of the world’s fastest M.2 slots. One delivers up to PCIe Gen3 x4 32Gb/s transfer speed, the other one supports SATA3 6Gb/s mode.

Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.

AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.

Premium 42A Power Choke
Compared to traditional chokes, ASRock’s premium 42A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Digi Power
This motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced.

Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
  • Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
  • Supports DDR4 3200
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output:HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC892/897 Audio Codec)
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3)
  • 2 USB 3.2 Gen2 (Rear Type-A+C)
  • 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • Realtek Gigabit LAN

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
AMD
Processor socket*
Socket AM4
Compatibele processors*
AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
2133,2400,2667,2933,3200 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, PCI Express 3.0, SATA III
RAID support
Ja
Soorten RAID
0, 1, 10

Grafisch

Ondersteuning voor parallel processing*
CrossFireX, Quad-GPU CrossFireX
Ingebouwde grafische adapter
Ja
Grafische adapter-familie
AMD
Maximum resolutie
4096 x 2160 Pixels
HDCP
Ja
DirectX versie
12.0
Discrete grafische ondersteuning
Ja
Aantal displays ondersteund
3

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
Aantal SATA III connectors*
4
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
3
Chassis intrusion aansluiting
Ja
EPS power connector (8-pin)
Ja
COM aansluitingen
1
TPM connector
Ja
RGB LED-aansluitrail
Ja

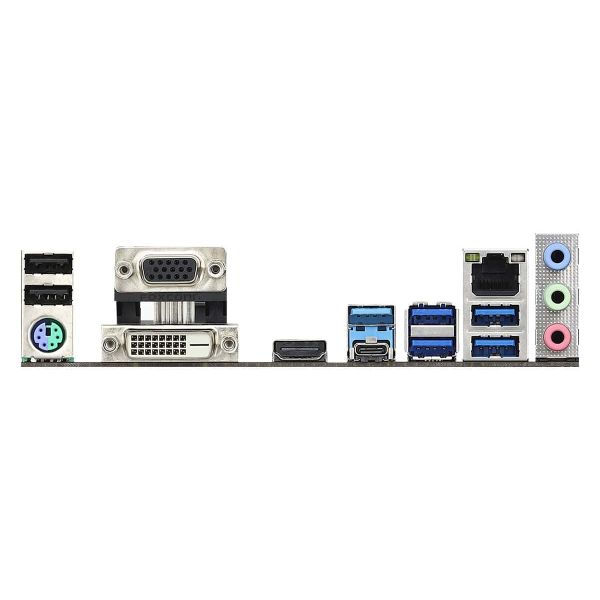

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
1

Aansluitingen achterzijde

Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1
Aantal Ethernet LAN (RJ-45)-poorten*
1
VGA (D-Sub)poort(en)*
1
Aantal HDMI-poorten*
1
HDMI versie
1.4
DVI-D poorten*
1
Hoofdtelefoonuitgangen
1
Microfoon, line-in ingang
Ja
USB-connectortype
USB Type-A, USB Type-C

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
LAN controller
Realtek RTL8111H
Wake-on-LAN
Ja
Wifi*
Nee

Kenmerken

Chipset moederbord*
AMD B450
Audiochip
Realtek ALC892 / Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
PC gezondheids monitor
Ventilator, Temperatuur, Spanning
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
AMD
Type stroombron
ATX
Ondersteunt Windows
Windows 10 x64, Windows 11 x64

Uitbreidingsmodules

PCI Express x16 (Gen 2.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
Aantal M.2 (M) slots
1

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit
ACPI version
5.1
Systeem Management BIOS (SMBIOS) versie
2.3

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
244 mm
Diepte
244 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Meegeleverde drivers
Ja
Meegeleverde software
ASRock A-Tuning ASRock Polychrome SYNC ASRock XFast LAN
