Asrock H670M Pro RS, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, DDR4-SDRAM, 128 GB, DIMM

Nog 19 beschikbaar

Fabrikant ASRock
MPN 90-MXBHK0-A0UAYZ
EAN 4710483936555

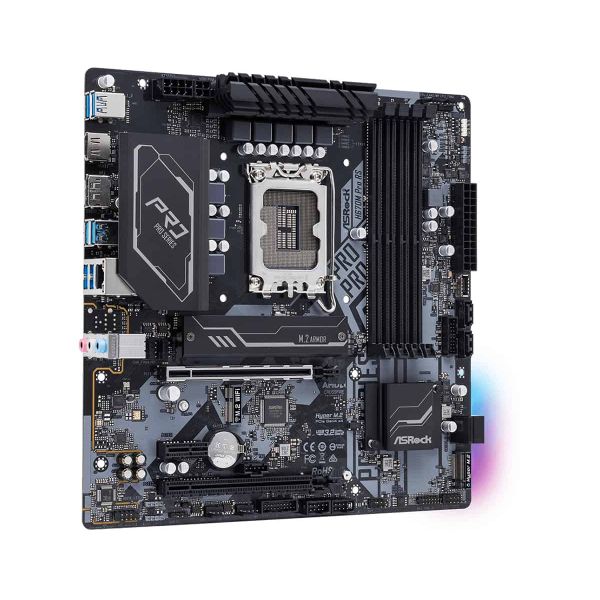

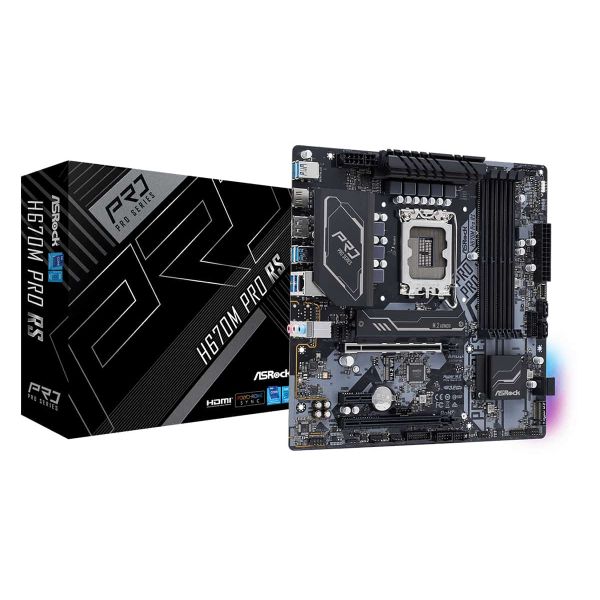

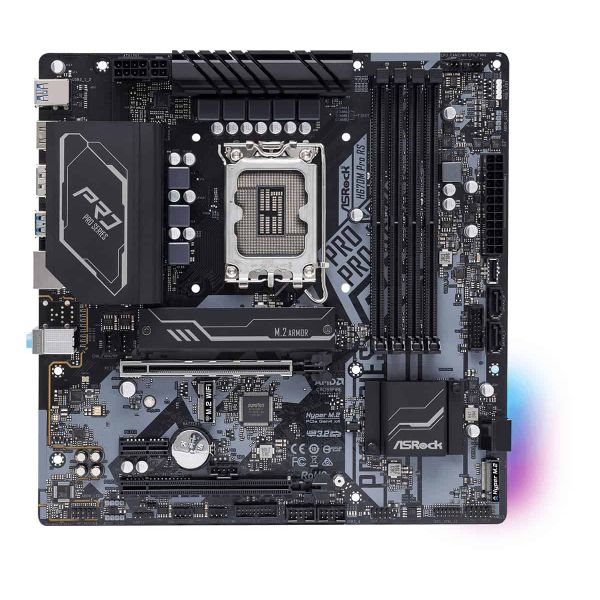

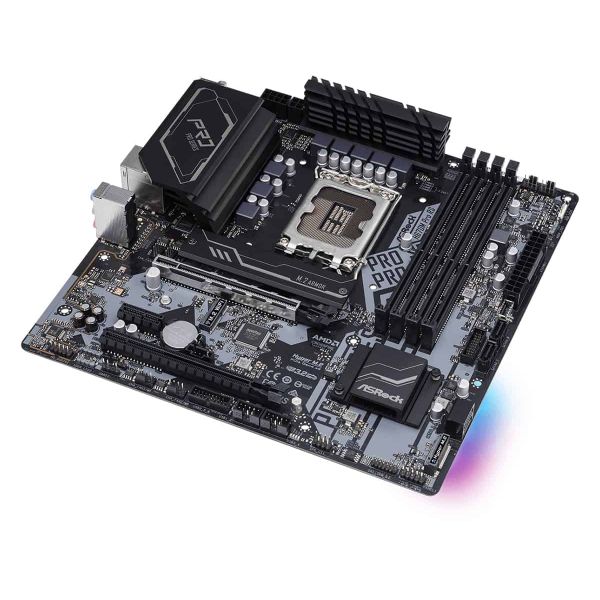

Asrock H670M Pro RS Intel H670 LGA 1700 micro ATX

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.

Intel Gigabit LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution
This motherboard is capable of accomadating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
  • ASRock USB 3.2 Gen2
  • - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
  • ASRock Super Alloy
  • - Premium Power Choke
  • - 50A Dr.MOS
  • - Sapphire Black PCB
  • - High Density Glass Fabric PCB
  • ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
  • ASRock Steel Slot
  • ASRock Full Coverage M.2 Heatsink
  • ASRock Hyper M.2 (PCIe Gen4x4)
  • ASRock POST Status Checker (PSC)
  • ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  • ASRock Live Update & APP Shop

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Max. aantal SMP-processoren
1

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
4800 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Grafisch

Maximum resolutie
7680 x 4320 Pixels
HDCP
Ja

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
2
Aantal SATA III connectors*
4
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
3
Chassis intrusion aansluiting
Ja
TPM connector
Ja
Thunderbolt-headers
1
12V vermogen-connector
Ja
RGB LED-aansluitrail
Ja

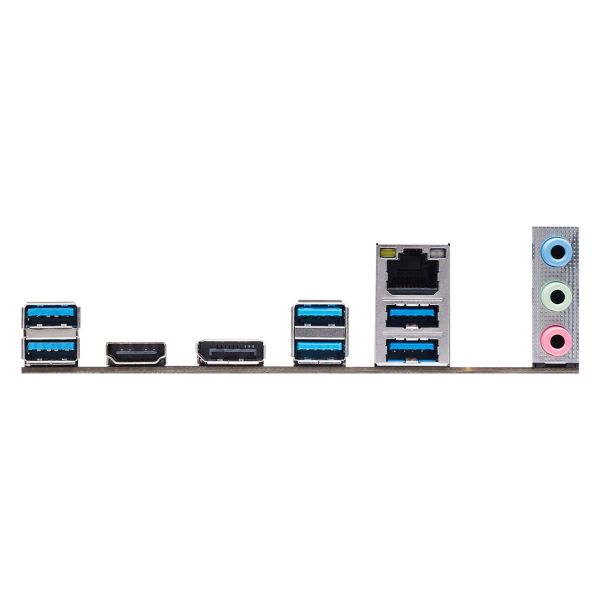

Aansluitingen achterzijde

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
2

Aansluitingen achterzijde

Aantal Ethernet LAN (RJ-45)-poorten*
1
Aantal HDMI-poorten*
1
HDMI versie
2.1
Aantal DisplayPorts
1
DisplayPort versie
1.4

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
LAN controller
Intel® I219-V
Wake-on-LAN
Ja
Wifi*
Nee

Kenmerken

Chipset moederbord*
Intel H670
Audiochip
Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
PC gezondheids monitor
CPU, Ventilator, Temperatuur, Spanning
Component voor*
Server
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 slots
2
Aantal M.2 (M) slots
2

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit
ACPI version
6.0
Systeem Management BIOS (SMBIOS) versie
2.7

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
244 mm
Diepte
244 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Meegeleverde drivers
Ja
