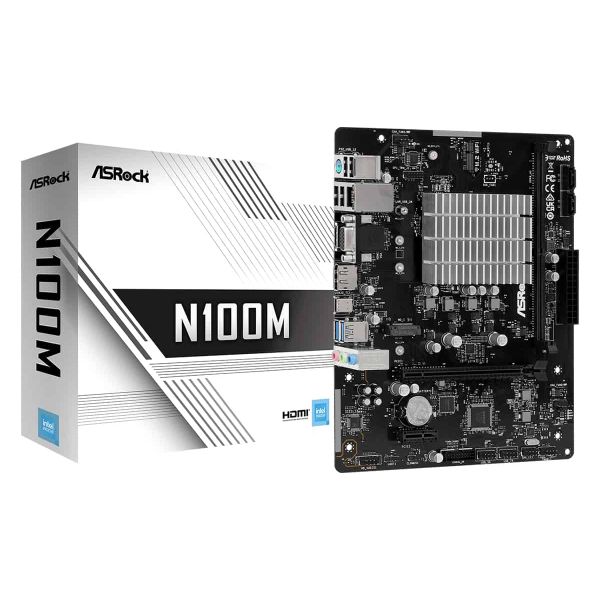

Asrock N100M NA (geïntegreerde CPU) micro ATX

Asrock N100M, Intel, NA (geïntegreerde CPU), Intel Processor N, N100, DDR4-SDRAM, 32 GB

Ruim op voorraad

Fabrikant ASRock
MPN 90-MXBK80-A0UAYZ
EAN 4710483943058
€ 113,00 excl. BTW

Asrock N100M NA (geïntegreerde CPU) micro ATX

Intel® Alder Lake-N N100 Processor
The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.

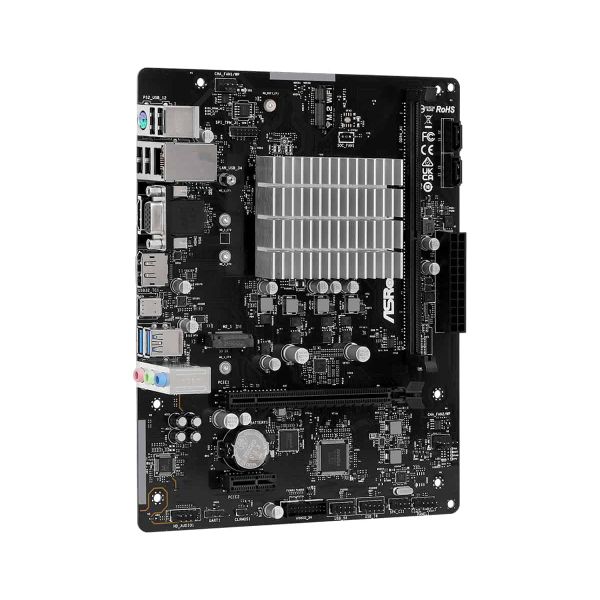

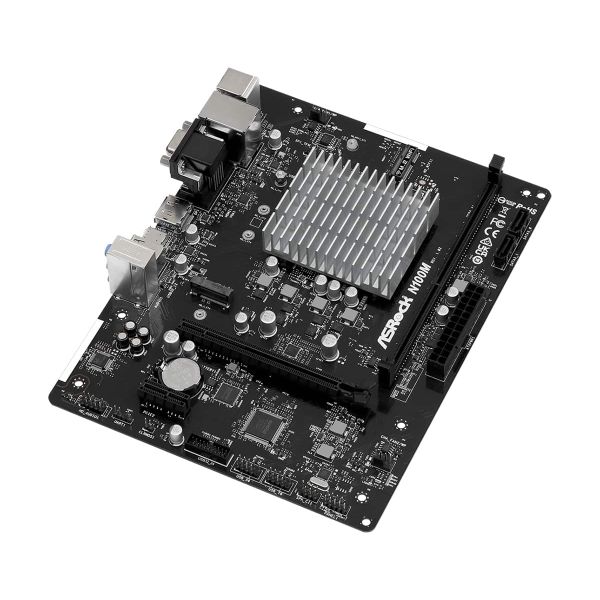

Fanless Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.

AV1 Decoding + 4K
Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.

USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
NA (geïntegreerde CPU)
Compatibele processors*
Intel Processor N
Processormodel
N100
Aantal processorkernen
4

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
1
Geheugen slots type
DIMM
Non-ECC
Ja
Ondersteunde geheugenkloksnelheid (max)
3200 MHz
Maximum intern geheugen*
32 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA III
Maximum aantal HDD's per behuizing
2
Aantal storage drives ondersteund
3

Grafisch

Grafische adapter-familie
Intel
Grafische adapter
Intel® UHD Graphics
Maximum resolutie
4096 x 2160 Pixels
HDCP
Ja
Aantal displays ondersteund
3

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
Aantal SATA III connectors*
2
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluitingen voor behuizingsventilatoren
2
Chassis intrusion aansluiting
Ja
TPM connector
Ja

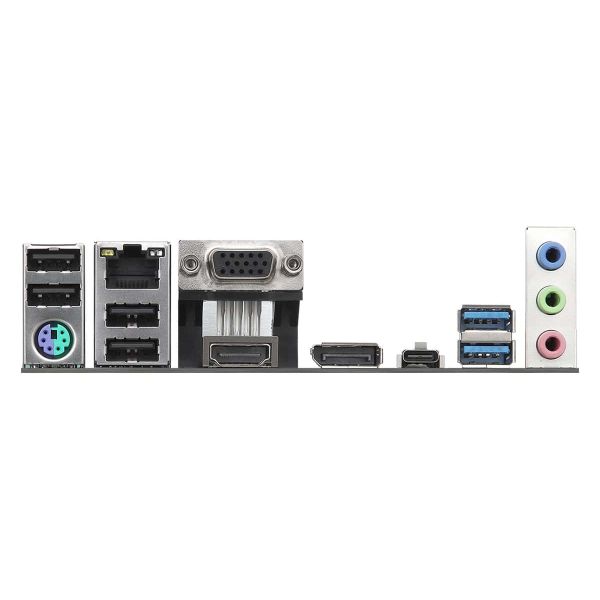

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1
Aantal Ethernet LAN (RJ-45)-poorten*
1

Aansluitingen achterzijde

PS/2 poort(en)
1
VGA (D-Sub)poort(en)*
1
Aantal HDMI-poorten*
1
HDMI versie
2.1
Aantal DisplayPorts
1
DisplayPort versie
1.4
Hoofdtelefoonuitgangen
1
Lijningang
Ja
Microfoon, line-in ingang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
LAN controller
Realtek 8111H

Kenmerken

Audiochip
Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel
Ondersteunt Windows
Windows 10 x64, Windows 11 x64
Certificering
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
Aantal M.2 (M) slots
1

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit

Gewicht en omvang

Breedte
226 mm
Diepte
178 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Meegeleverde drivers
Ja
Meegeleverde software
- ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN

Technische details

Duurzaamheidscertificaten
Federal Communications Commission (FCC)
