Asrock B760M PG SONIC WIFI Intel B760 LGA 1700 micro ATX

Asrock B760M PG SONIC WIFI, Intel, LGA 1700, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, DDR5-SDRAM, 128 GB, DIMM

Ruim op voorraad

Fabrikant ASRock
MPN 90-MXBKM0-A0UAYZ
EAN 4710483941788
€ 138,00 excl. BTW

Asrock B760M PG SONIC WIFI Intel B760 LGA 1700 micro ATX

Let’s ROLL!!

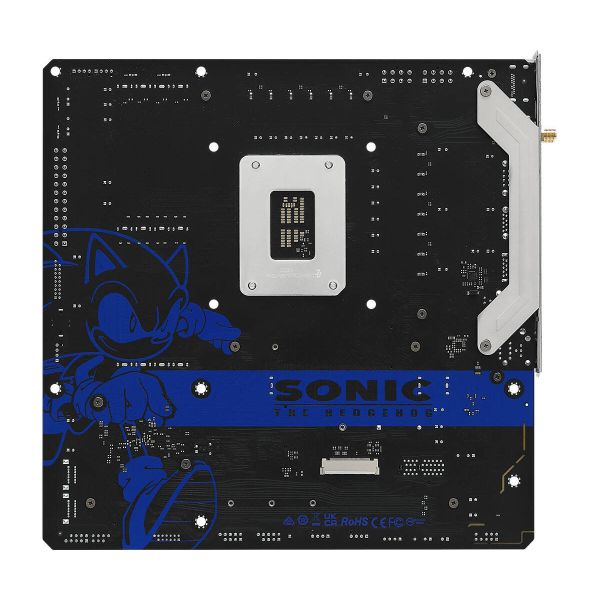

ASRock B760M PG SONIC WiFi, an officially licensed motherboard featuring SEGA’s Sonic the Hedgehog. A 16-bit spinning ring emblazons the rear IO cover, while on the rear side you’ll even catch a glimpse of Sonic mid-run. The ASRock motherboard is co-launched to celebrate the release of SEGA’s new Sonic Frontiers game.

Designed to bring back epic memories of catching rings in Green Hill Zone, the motherboard echoes Sonic’s lightning speed with its fast blue and silver shards and Sonic silhouette.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Max. aantal SMP-processoren
1

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde opslagstationinterfaces*
M.2, SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
USB 3.2-connectoren (3.1 Gen 2)*
1
Aantal SATA III connectors*
4
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Chassis intrusion aansluiting
Ja
TPM connector
Ja
RGB LED-aansluitrail
Ja

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1
Aantal Ethernet LAN (RJ-45)-poorten*
1
PS/2 poort(en)
1

Aansluitingen achterzijde

Aantal HDMI-poorten*
1
Aantal DisplayPorts
1
DisplayPort versie
1.4
Lijningang
Ja
Microfoon, line-in ingang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Dragon RTL8125BG
Wifi*
Ja
Wifi-standaard
Wi-Fi 6E (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth
Ja

Kenmerken

Chipset moederbord*
Intel B760
Audiochip
Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel

Uitbreidingsmodules

PCI Express x1 (Gen 4.x) sleuven
1
PCI Express x16 (Gen 5.x) sleuven
1
Aantal M.2 (M) slots
1

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit

Gewicht en omvang

Breedte
244 mm
Diepte
244 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
