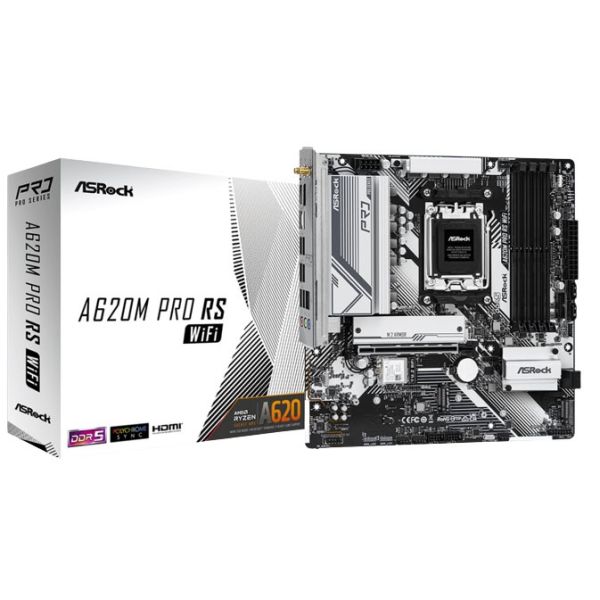

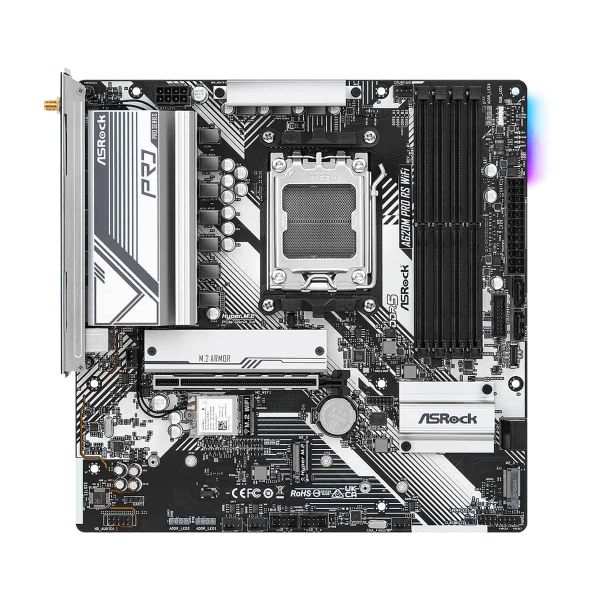

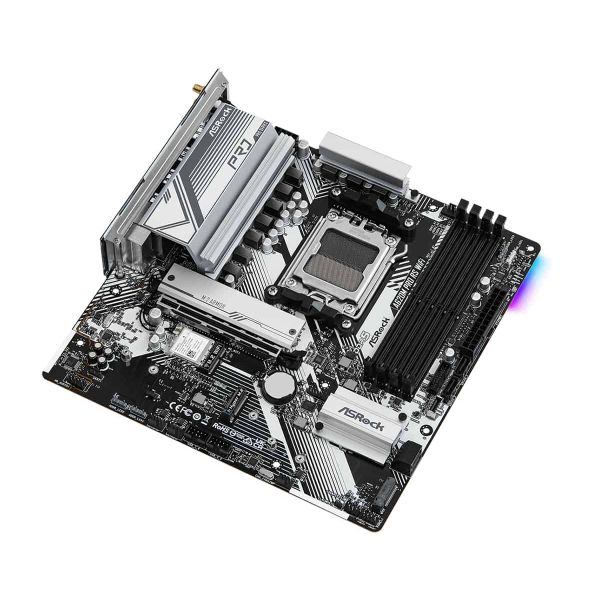

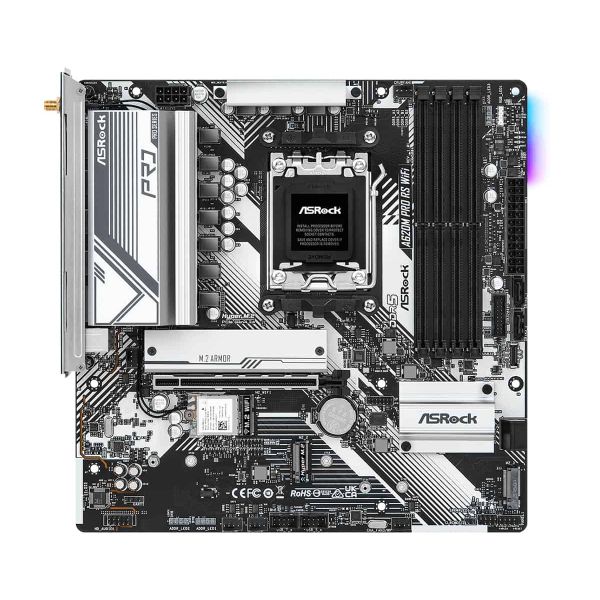

Asrock A620M Pro RS WiFi, AMD, Socket AM5, AMD Ryzen 9 7th Gen, DDR5-SDRAM, 128 GB, DIMM

Nog slechts 5 beschikbaar

Fabrikant ASRock
MPN 90-MXBLX0-A0UAYZ
EAN 4710483943065

Asrock A620M Pro RS WiFi AMD A620 Socket AM5 micro ATX

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

Optimized VRM Design
Featuring sturdy components optimized for AMD Ryzen™ 7000X3D series processors, offering enhanced performance for gamers.

6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, giving a stable and reliable system.

Reinforced Steel Slot
[PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

SMA cable is easy to loose, this is an unacceptable situation for every users. Now we fixed this issue with a little Key-E module cap.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.
  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 6+2+1 Power Phase, Dr.MOS, 120W CPU Ready
  • Supports DDR5 6000+ MHz (OC)1 PCIe 4.0 x16
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec,Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),1 M.2 (PCIe Gen3x2)
  • 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • Realtek Gigabit LAN802.11ax Wi-Fi 6E + Bluetooth
  • Supports ASRock Auto Driver Installer,BIOS Flashback

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
AMD
Processor socket*
Socket AM5
Compatibele processors*
AMD Ryzen 9 7th Gen

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Maximum intern geheugen*
128 GB

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA
Maximum aantal HDD's per behuizing
4
Aantal storage drives ondersteund
3
RAID support
Ja
Soorten RAID
0, 1, 10

Grafisch

Ingebouwde grafische adapter
Ja
Grafische adapter-familie
AMD
Grafische adapter
AMD RDNA 2

Interne aansluitingen

USB 2.0 aansluitingen*
4
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
3
Aantal SATA III connectors*
4
ATX Power connector (24-pin)
Ja
Aansluiting voor ventilator van voeding
Ja
Aansluiting voor CPU koeler
Ja
TPM connector
Ja
RGB LED-aansluitrail
Ja

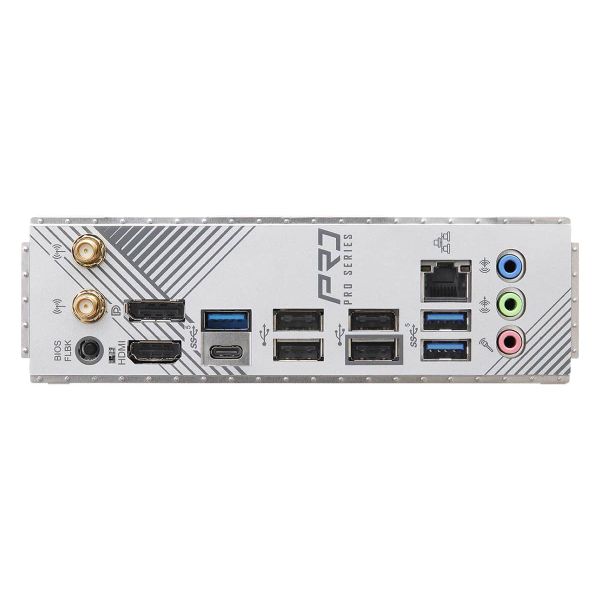

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
1
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C*
3
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aantal HDMI-poorten*
1
HDMI versie
2.1

Aansluitingen achterzijde

Aantal DisplayPorts
1
DisplayPort versie
1.4
Hoofdtelefoonuitgangen
1
Lijningang
Ja
Microfoon, line-in ingang
Ja
WiFi-AP antenna jack
2

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
LAN controller
Realtek 8111H
Wifi*
Ja
Wifi-standaard
Wi-Fi 6E (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth
Ja
Bluetooth-versie
5.2

Kenmerken

Chipset moederbord*
AMD A620
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
AMD
Ondersteunt Windows
Windows 10, Windows 11
Certificering
FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Uitbreidingsmodules

PCI Express x16 (Gen 4.x) sleuven
1
Aantal M.2 (M) slots
3

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
256 Mbit

Gewicht en omvang

Breedte
244 mm
Diepte
244 mm

Inhoud van de verpakking

Meegeleverde software
- ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
