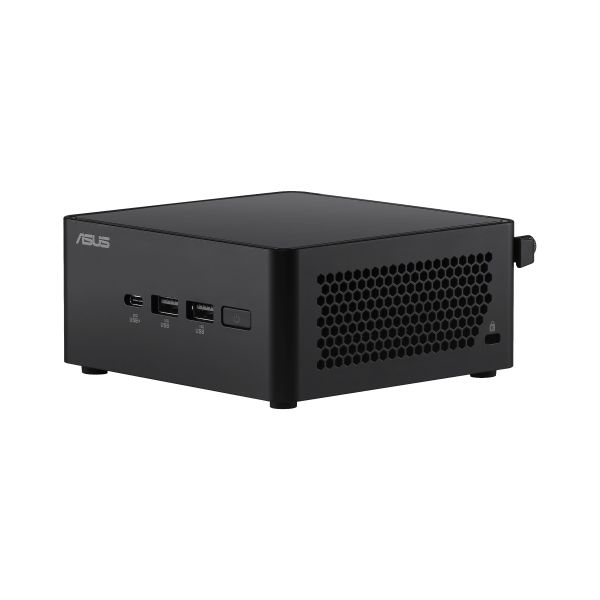

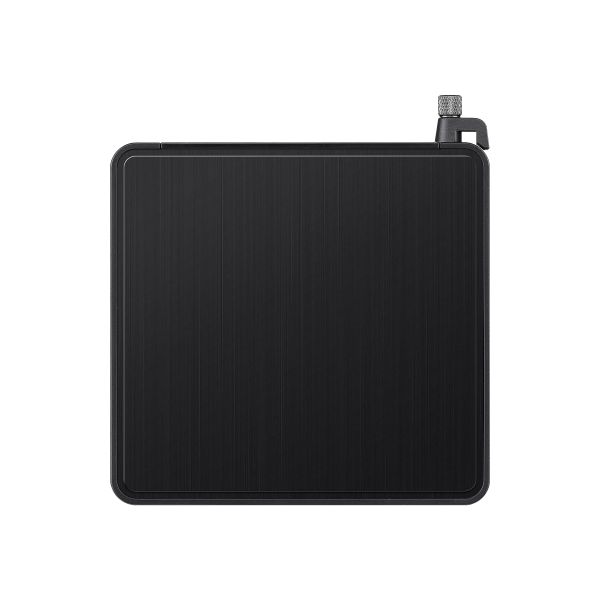

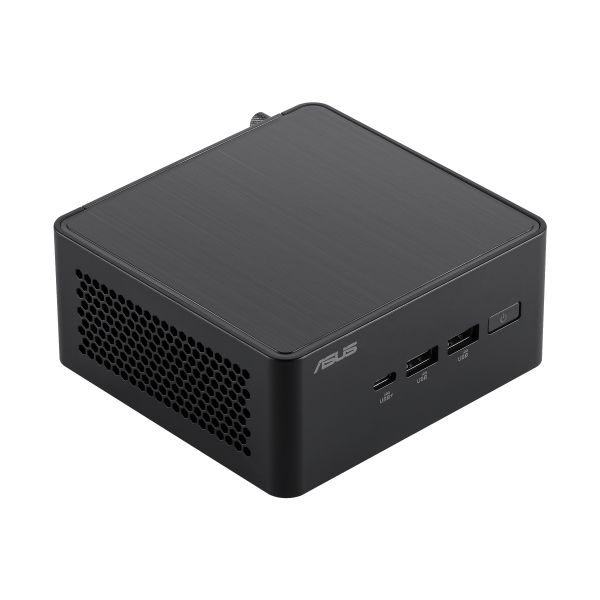

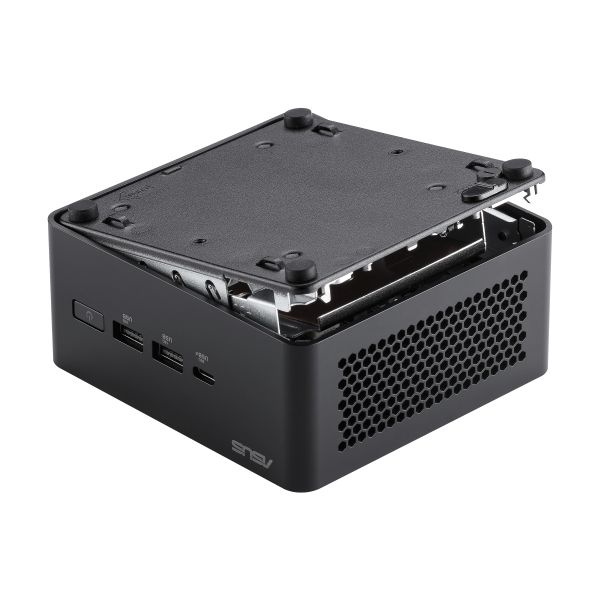

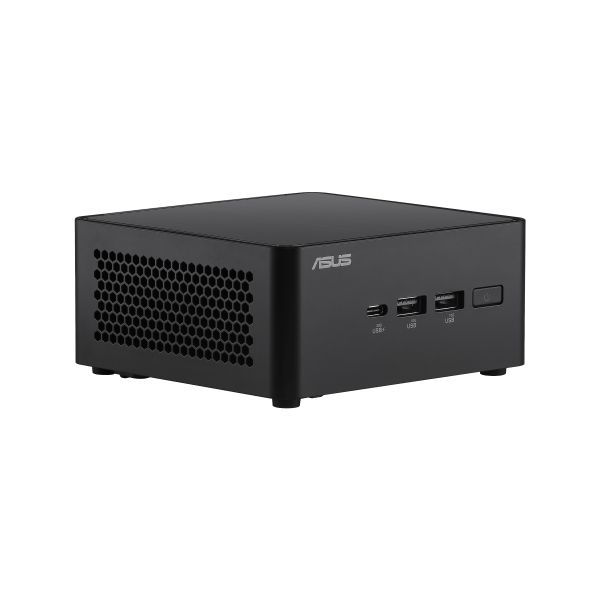

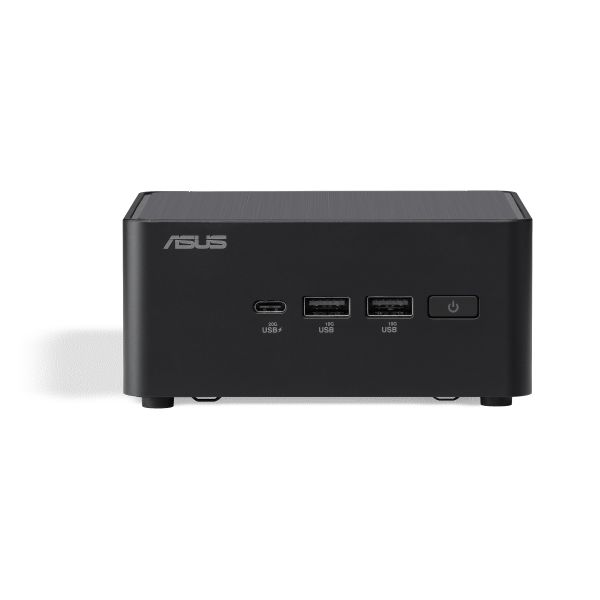

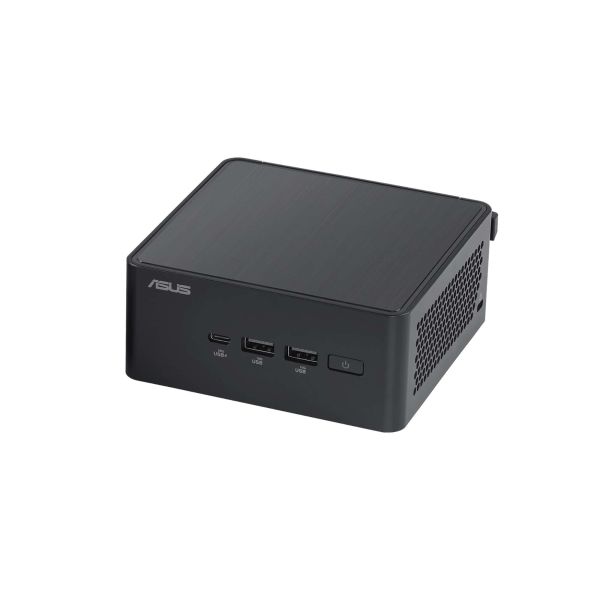

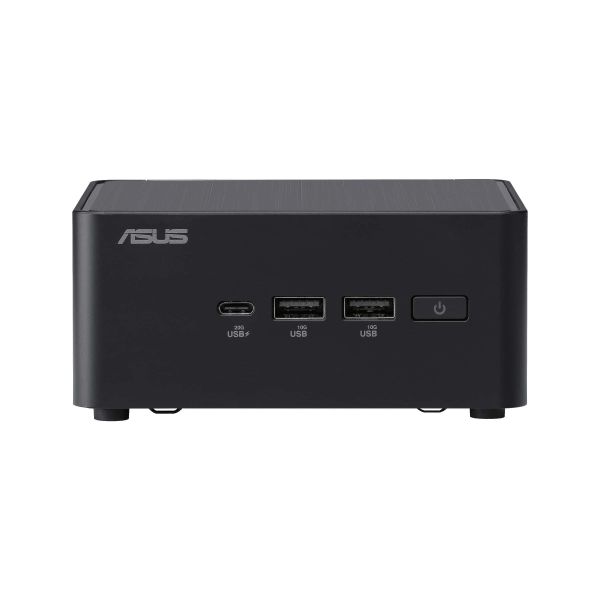

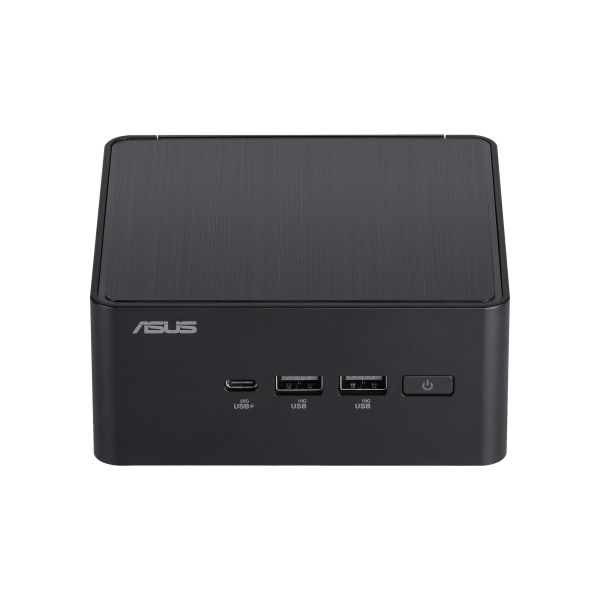

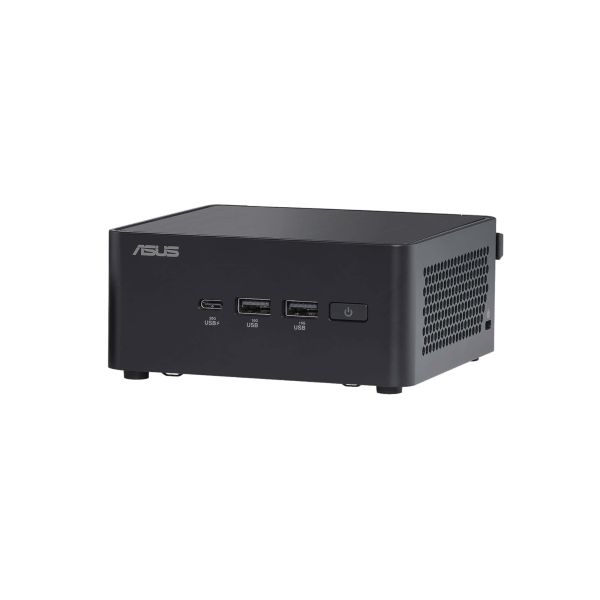

ASUS NUC 14 Pro RNUC14RVHV500002I, UCFF, Mini PC barebone, DDR5-SDRAM, PCI Express, SATA III, 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 120 W

Niet op voorraad

Fabrikant ASUS
MPN 90AR0072-M00160
EAN 4711387491744

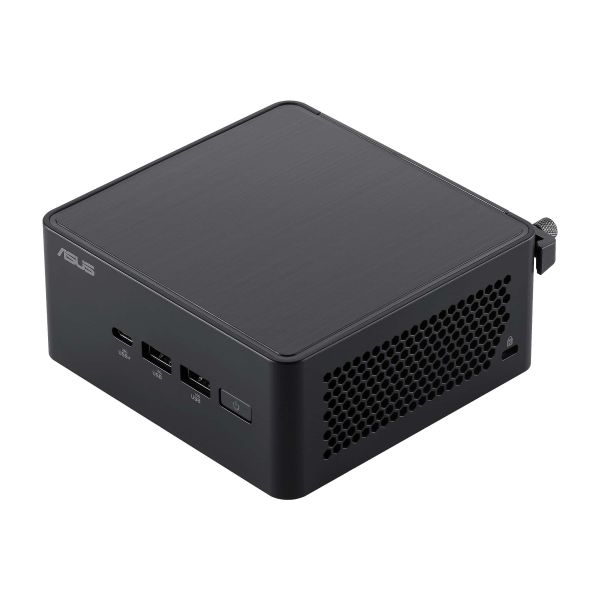

ASUS NUC 14 Pro RNUC14RVHV500002I UCFF Zwart 135H

ASUS RNUC14RVHV500002I BB U5 135H TK EU

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant
Intel
Processorfamilie
Intel Core Ultra 5
Processorgeneratie
Intel Core Ultra (Series 1)
Processormodel
135H
Aantal processorkernen
14
Processor aantal threads
18
Prestatiekernen
4
Efficiënte kernen
8
Cores met laag energieverbruik
2
Maximale turbosnelheid van cores met laag energieverbruik
2,5 GHz
Type processor*
Ja
Prestatie-kernboostfrequentie
4,6 GHz
Efficiënte kernboostfrequentie
3,6 GHz
Processor cache
18 MB
Thermal Design Power (TDP)
28 W

Geheugen

Geheugen slots type*
SO-DIMM
Aantal geheugenslots*
2
Maximum intern geheugen
96 GB
Supported memory clock speeds
5600 MHz
Ondersteunde geheugen types
DDR5-SDRAM
Geheugen kanaal
Dubbelkanaals

Opslagmedia

Ondersteunde types opslag-drives*
SSD
Opslagschijf afmetingen ondersteund*
2.5,M.2
Opslag schijf-interface
PCI Express, SATA III
NVMe
Ja

Grafisch

Ingebouwde grafische adapter*
Ja
Grafische adapter-familie
Intel
On-board graphics adapter model
Intel Graphics

Audio

Ingebouwde luidsprekers*
Nee

Netwerk

Wifi-standaard
Wi-Fi 6E (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
WLAN-controller-model
Intel Wi-Fi 6E AX211

Netwerk

Ethernet LAN*
Ja
Wifi*
Ja
Bluetooth
Ja
Bluetooth-versie
5.3

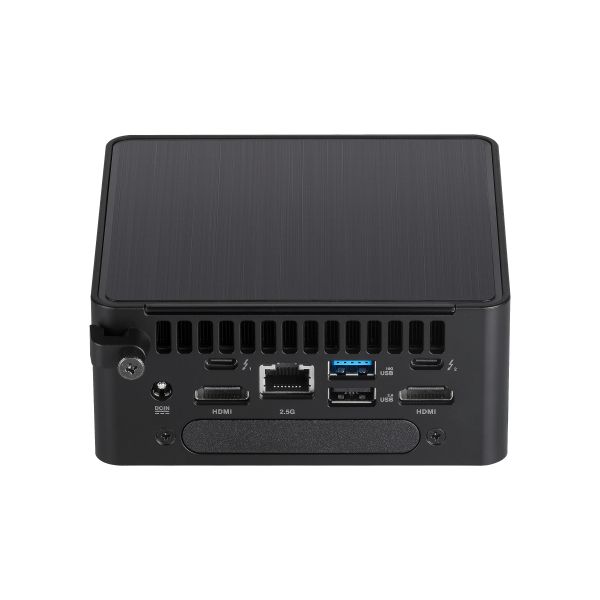

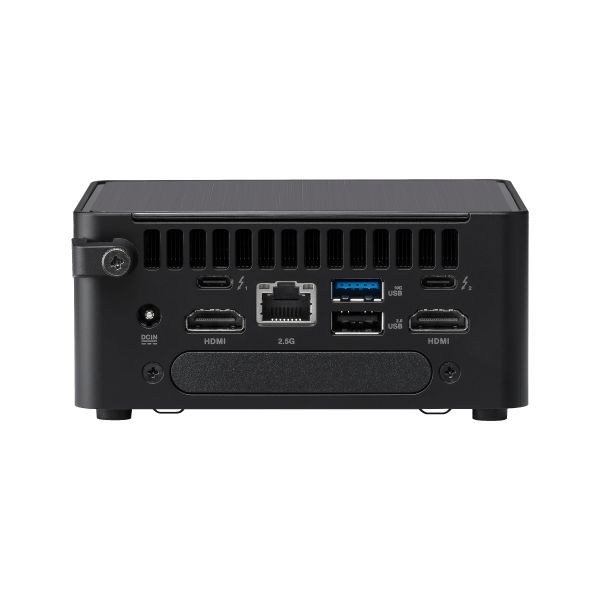

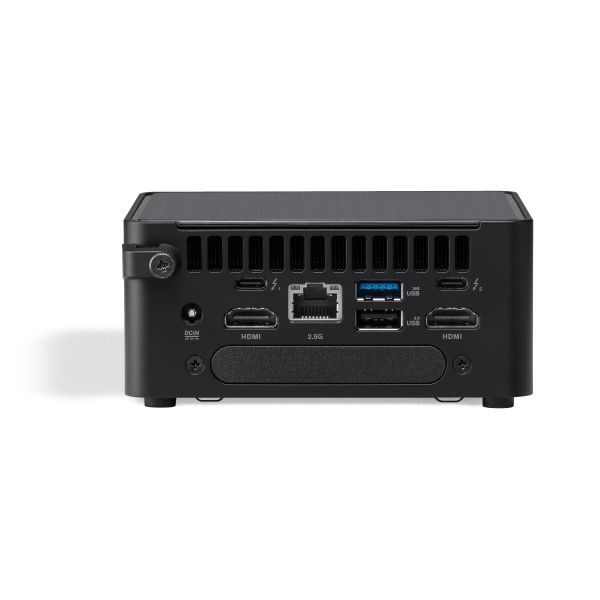

Poorten & interfaces

Aantal USB 2.0-poorten*
1
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
3
Aantal USB4 Gen 2x2 poorten
1
Aantal HDMI-poorten*
2
HDMI versie
2.1
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aantal Thunderbolt 4-poorten
2
Aansluiting voor netstroomadapter
Ja

Design

Type behuizing*
UCFF
Kleur van het product*
Zwart
Type koeling*
Actief

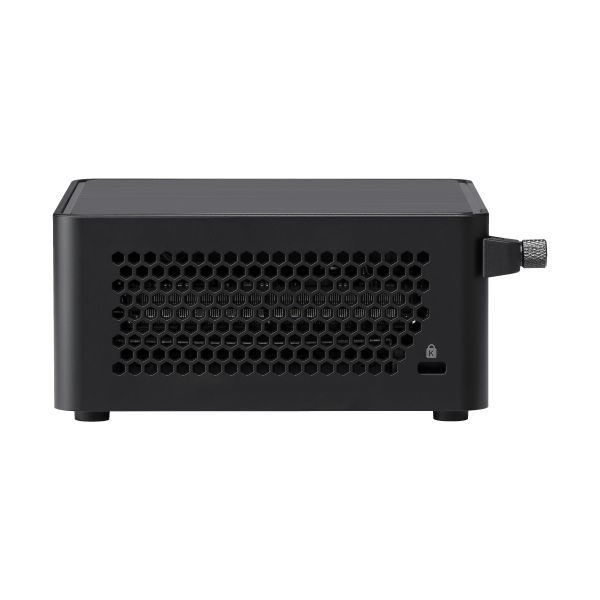

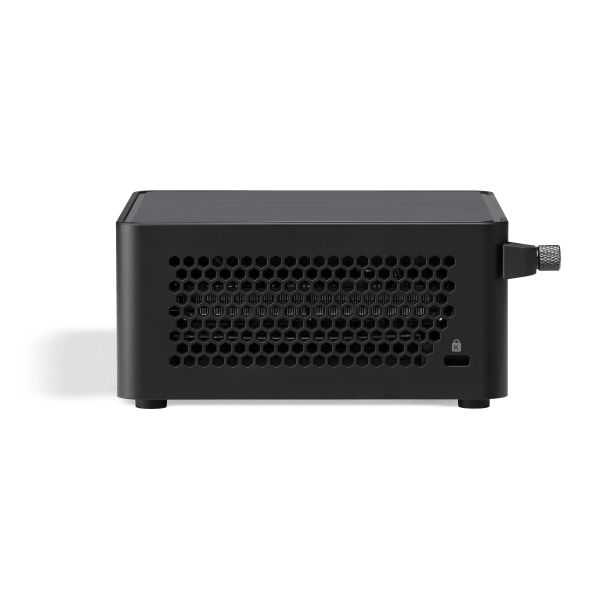

Bevestigingsmogelijkheid voor kabelslot
Ja
Kabelslot sleuf type
Kensington
VESA-montage
Ja
Type product*
Mini PC barebone

Prestatie

Aantal ondersteunde processoren
1

Software

Ondersteunt Windows
Windows 11

Energie

Soort voeding*
Externe AC-adapter
Netvoeding
120 W

Gewicht en omvang

Breedte
144 mm
Diepte
112 mm
Hoogte
41 mm
Gewicht
570 g

Inhoud van de verpakking

Inclusief netsnoer
Ja
Snelstartgids
Ja
