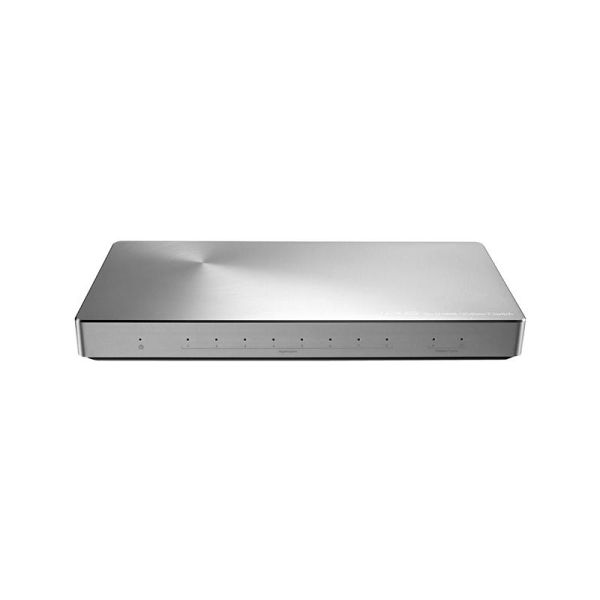

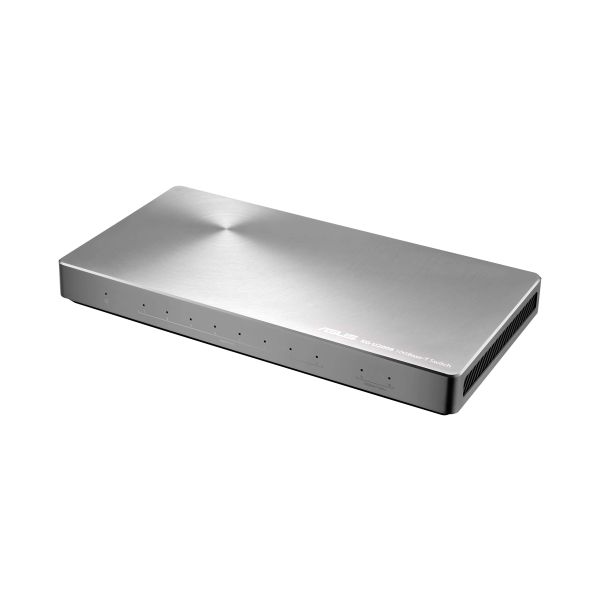

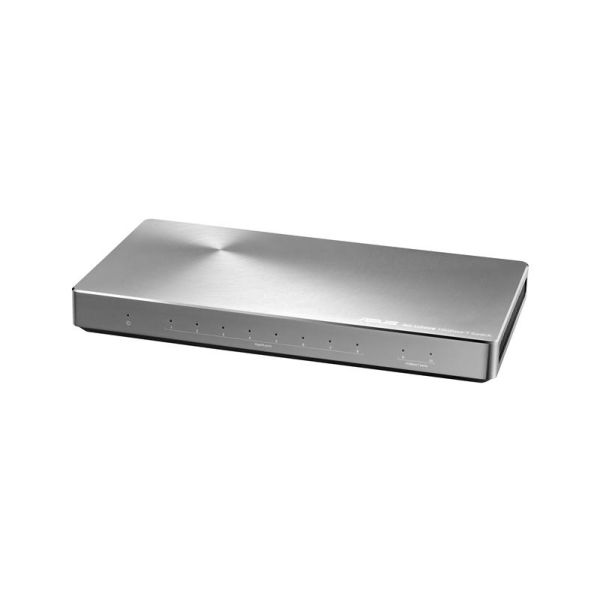

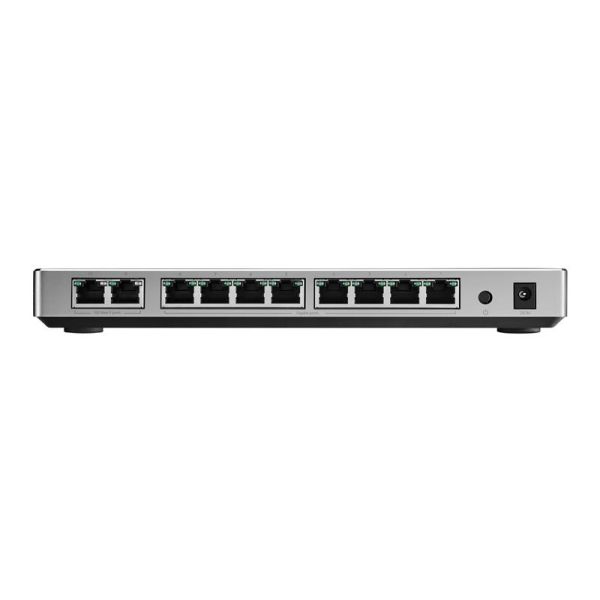

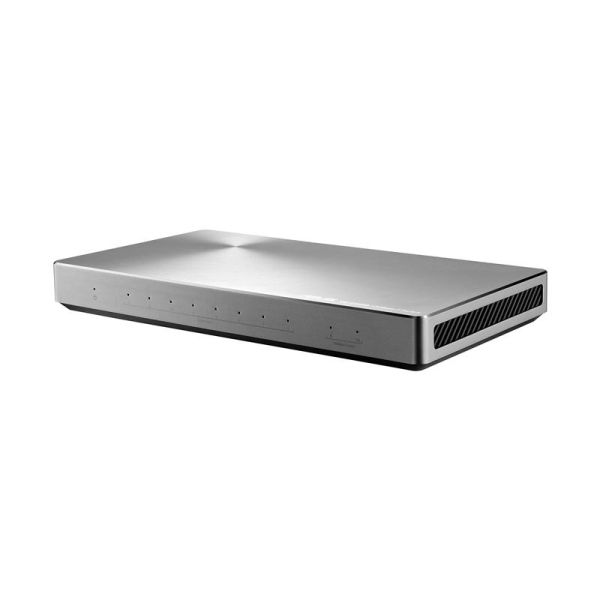

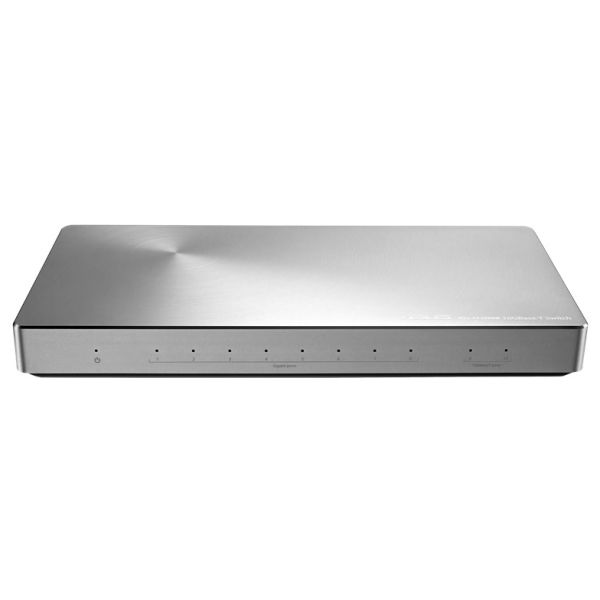

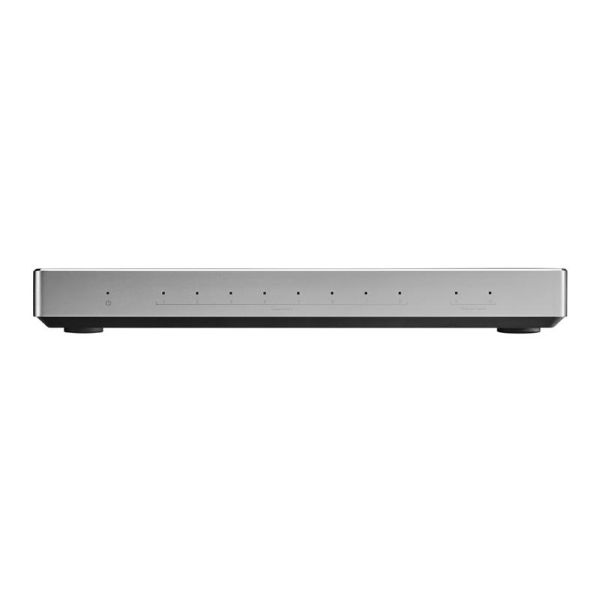

ASUS XG-U2008, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex

Niet op voorraad

Fabrikant ASUS
MPN 90IG02R0-BO3X00
EAN 4712900471748

ASUS XG-U2008 Unmanaged Gigabit Ethernet (10/100/1000) Zilver

Hyper-Fast 10Gbps Networking
Each of the two 10G ports delivers up to 10Gbps speeds via standard RJ-45 cables. This gives your office or studio network the bandwidth to cope easily with even the most data-intensive tasks, such as backing up to a NAS or transferring huge files. There are also 8 Gigabit Ethernet ports for the ultimate versatility.

Easy to Use, No Setup Needed
Enjoy true plug-and-play convenience, with absolutely no setup required! Each port automatically configures itself depending on the type of device you connect, and the 10G ports include a handy three-color signal quality indicator LED that tells you what speed the cable supports.

Slim and Stylish Design
With its attractive design, spun-metal finish and tough metal construction, there’s no need to keep XG-U2008 hidden out of sight! Its slim and compact shape makes it easy to situate anywhere in the office, studio or home.

Rack Mountable (Optional bracket sold separately)
Saving the space around the office, for some of the SMB or enterprise users, XG-U2008 also has an optional bracket that makes it easy to mount in a standard 19” rack and work with other networking devices.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.3ab, IEEE 802.3an, IEEE 802.3u
10G support*
Ja
Full duplex
Ja

Data-uitwisseling

Switchingcapaciteit*
56 Gbit/s
Verzending snelheid
100 Mpps
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
16000
Packet forwarding rate (1 Gbps)
148800 pps
Packet forwarding rate (100 Mbps)
148800 pps
Packet buffergeheugen
2 MB

Design

Kleur van het product
Zilver
LED-indicatoren
Stroom
Certificering
CB/CCC FCC/CE

Energie

AC-ingangsspanning
110 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 85 procent
Luchtvochtigheid bij opslag
10 - 90 procent

Gewicht en omvang

Breedte
240 mm
Diepte
125 mm
Hoogte
27 mm
Gewicht
630 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
