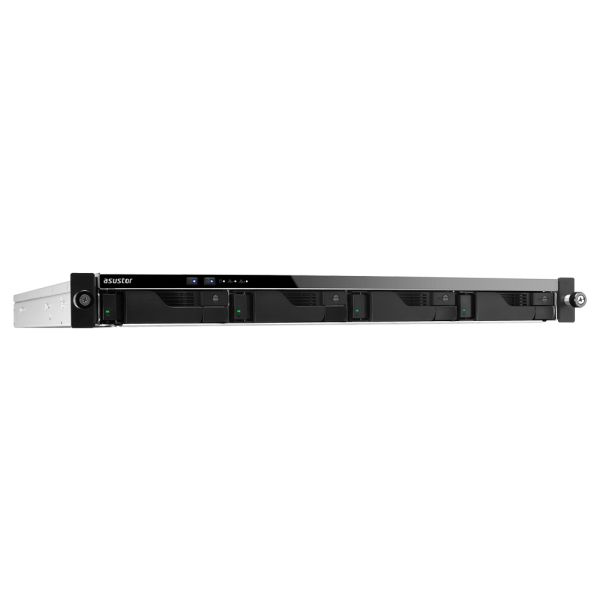

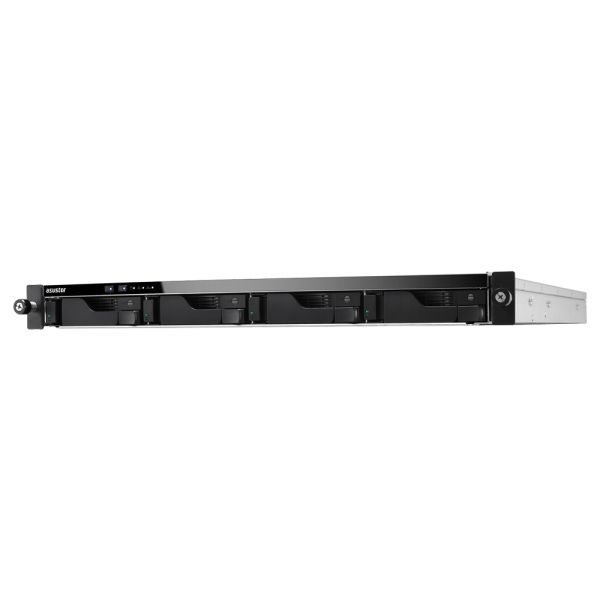

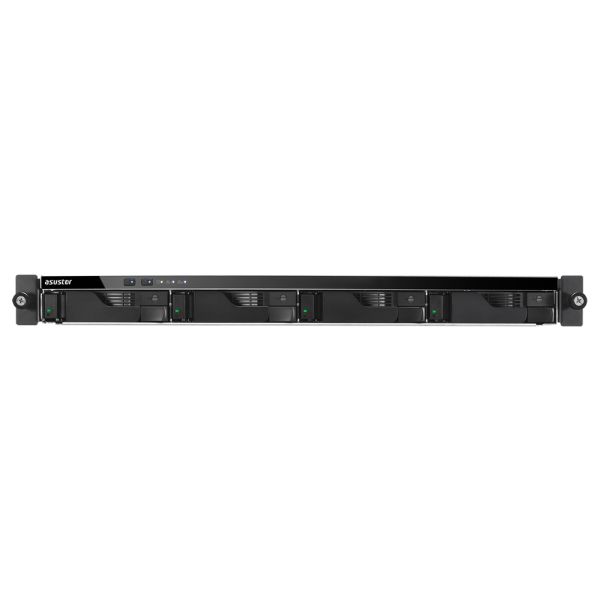

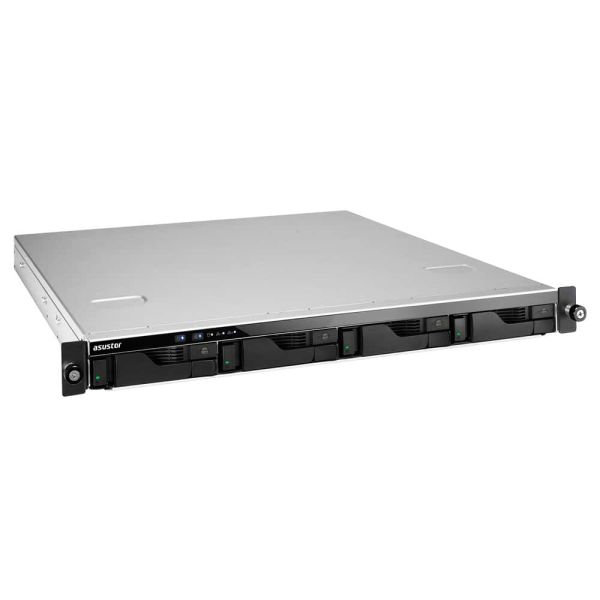

Asustor AS6204RS NAS Rack (1U) Ethernet LAN Zwart

Asustor AS6204RS, NAS, Rack (1U), Intel® Celeron®, Zwart

Niet op voorraad

Fabrikant ASUS
MPN 90IX0101-BW3S10
EAN 4710474830800
€ 566,00 excl. BTW

Asustor AS6204RS NAS Rack (1U) Ethernet LAN Zwart

An Ideal Storage Solution for SMBs Featuring Elite Performance and Functionality

- Complete iSCSI/IP-SAN and NFS support. VMware, Citrix and Hyper-V ready
- Equipped with an Intel Celeron quad-core processor
- Windows + Mac + Linux cross-platform file sharing
- Windows ACL support combined with Windows AD infrastructure enhances management efficiency for business applications
- Military grade AES 256-bit encryption
- SMB 2/3 support increases Windows networking performance by 30%-50%
- Uninterruptible dual power supply(AS6204RD)

Equipped with an Intel Celeron quad-core processor

AS6204RS/6204RD is powered by Intel Celeron quad-core processor, equipped with 4GB of dual-channel memory, and feature read speeds of over 112.80 MB/s and write speeds of over 111.95 MB/s under RAID 5 configurations.

A Surge in Data Transfer Performance

ADM 2.6 supports SMB 2.0 which reduces the burden of network traffic on the NAS while simultaneously providing greater data transfer capacity.In the ASUSTOR testing environment, SMB 2.0 was found to increase Windows networking performance by 30%-50%. SMB 2.0 also significantly increases the number of concurrent Windows client connections and simultaneously open files, making ADM 2.6 even more suitable for large-scale Microsoft network environments.

iSCSI and Virtualization

ASUSTOR recognizes that stable and efficient shared storage is a must for your virtual environment. The supported use of iSCSI and NFS allows you to seamlessly integrate with any existing IT environments. Additionally, all ASUSTOR NAS devices are verified as VMware, Citrix and Hyper-V ready, providing you with a flexible and cost-efficient virtual storage solution.

The iSCSI features supported by ASUSTOR NAS devices include:
- LUN Mapping
- LUN Masking
- ISO File Mounting
- MPIO Support
- Persistent (SCSI-3) Reservations

Advanced File Permissions Management - Windows ACL

For IT professionals, file permissions configuration is a very important topic, especially in enterprise environments. Because the native Linux system file permission mechanisms are different than those in Windows, in the past, IT professionals had to create a separate set of permissions for files stored on NAS servers. This also limited the number of permission configuration options that were available to them.

In order to help IT professionals simply their work, ASUSTOR has comprehensively integrated Windows ACL into ADM. Windows ACL provides a set of 13 different permissions settings, allowing administrators to configure permissions for individual files and folders that can be applied to different groups and users. Windows ACL permissions can be configured from within ADM's File Explorer or Microsoft Windows Explorer allowing administrators to easily manage permissions using familiar methods.

Enterprise Backup

The AS6204RD features comprehensive backup solutions. The built-in redundant power supply and 4 Gigabit Ethernet ports effectively increase reliability, data integrity and execution speeds. The Ethernet ports and power supply all feature failover capabilities (when one fails, the other can continue to operate) in order to ensure for continuous data availability.

Even More Reliable After-Sales Service

ASUSTOR has extended the warranty period on all of its products to three years, continuing to make customer service a huge priority. It is ASUSTOR's mission to continue to provide its customers with products of the highest quality along with only the most reliable and attentive after-sales service and technical support.

Secure Disk Tray Lock Design

In order to help users avoid accidentally pushing disk tray buttons and releasing hard disks during operation, ASUSTOR has added a new lock mechanism to its hard disk trays. The lock's flat-head design ensures that users will not need any special keys or tools to unlock it, only a simple flat-head screw driver. The new disks trays can be used with all ASUSTOR NAS devices, providing an additional layer of security for applications requiring the frequent swapping of hard disks (e.g., MyArchive).

Create a Stable, Reliable and High Quality Surveillance System

The powerful AS61/AS62 Series devices provide you with stress free reliability when installing a surveillance system in your home or office environment. Installing the Surveillance Center App from App Central instantly turns your NAS into 24/7, high definition surveillance system. Surveillance Center provides comprehensive cross-platform support, allowing both Windows and Mac users to use familiar web browsers to access their surveillance feeds. Furthermore, ASUSTOR also offers the free AiSecure mobile app that gives users access to all their surveillance feeds while on the go. AiSecure also provides the ability to receive instant push notifications from Surveillance Center, allowing users to keep up with the latest developments. No matter if you need to protect individual assets, loved ones or your business, the powerful AS61/AS62 Series devices are your optimal choice when creating a comprehensive surveillance system.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Opslagmedia

Opslag schijf-interface*
SATA III
Opslag schijfgrootte
2.5/3.5"
Maximaal ondersteunde opslagcapaciteit
40 TB
RAID support*
Ja
Soorten RAID
0, 1, 5, 6, 10, JBOD
Hot-swap drive bays
Ja
Ondersteunde bestandsystemen
FAT32, HFS+, NTFS, ext3, ext4
Opslagdrives geïnstalleerd*
Nee
Aantal storage drives ondersteund*
4
Geïnstalleerde opslag-drive*
Nee
Ondersteunde types opslag-drives*
HDD & SSD

Processor

Processorfamilie*
Intel® Celeron®
Frequentie van processor*
1,6 GHz
Maximale turbofrequentie van processor
2,24 GHz
Aantal processorkernen
4

Geheugen

Intern geheugentype
DDR3L
Ondersteund maximum RAM
8 GB
Geheugenslots
2
Intern geheugen*
4 GB

Netwerk

Ethernet LAN*
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Wifi
Nee
Jumbo Frames ondersteuning
Ja
iSCSI support
Ja
Wake-on-LAN
Ja
Ondersteunde netwerkprotocollen
CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP, TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Verbindingsaggregatie
Ja

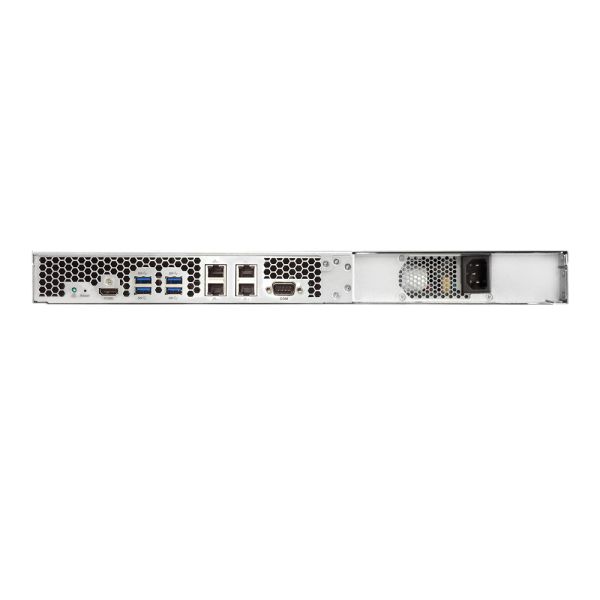

Poorten & interfaces

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
4
Aantal HDMI-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten*
4

Design

Type behuizing*
Rack (1U)
Type koeling*
Actief
Kleur van het product
Zwart
Aantal ventilatoren
2 ventilator(en)
Ventilator diameter
4 cm
LED-indicatoren
Ja

Prestatie

Soort*
NAS
Apparaatklasse*
Kleine & middelgrote bedrijven
Backup-functie*
Ja
Back-up-eigenschappen
Cloud
Ondersteunt meerdere talen
Ja
Aantal gebruikers
4096 gebruiker(s)

Prestatie

Geluidsniveau
22 dB
Web-gebaseerd management
Ja
Ondersteunde beveiligingsalgoritmen
256-bit AES, HTTPS, SNMP, SSH, SSL/TLS
Access Control List (ACL)
Ja
Ingebouwde UPnP™ AV -mediaserver
Ja
Ingebouwde iTunes-server
Ja
Ondersteunde browser
Internet Explore 11, FireFox, Chrome, Safari, Microsoft Edge
Systeemlog
Ja
S.M.A.R.T. support
Ja

Software

Inclusief besturingssysteem*
ADM
Operating systeem versie
2,6
Ondersteunt Windows
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Ondersteunt Linux
Ja
Mac-compatibiliteit
Ja
Ondersteunt Mac-besturingssysteem
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Ondersteunde server operating systems
Windows Server 2003, Windows Server 2008, Windows Server 2012

Energie

Vermogenstoevoer locatie
Ingebouwd
Capaciteit voedingsunit (PSU)
250 W
Aantal voedingen
1
Stroomverbruik (typisch)
35,5 W
Slaapstand
1,5 W
AC-ingangsspanning
100-240 V

Gewicht en omvang

Breedte*
439 mm
Diepte*
515 mm
Hoogte*
44 mm
Gewicht
7,65 kg
Breedte verpakking
572 mm
Diepte verpakking
683 mm
Hoogte verpakking
184 mm
Gewicht verpakking
13,1 kg

Inhoud van de verpakking

Meegeleverde kabels
AC, LAN (RJ-45)
Aantal schroeven
32
Ondersteunings-cd
Ja

Processor speciale functies

Intel® AES New Instructions (Intel® AES-NI)
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Certificaten

Certificering
FCC, CE, VCCI, BSMI, C-TICK

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100
