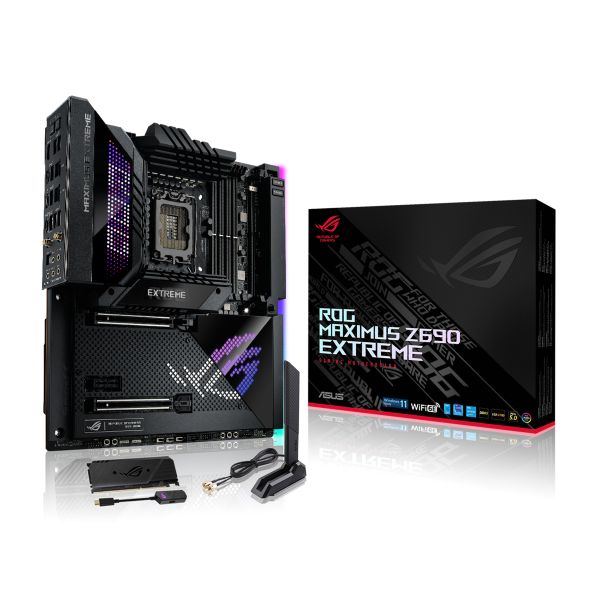

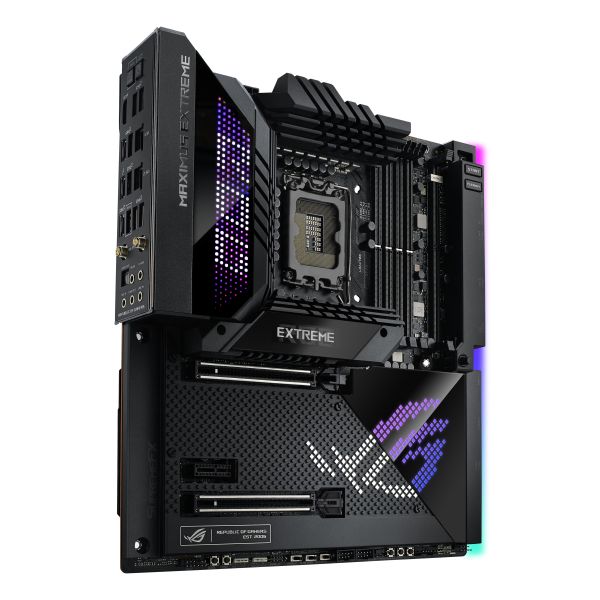

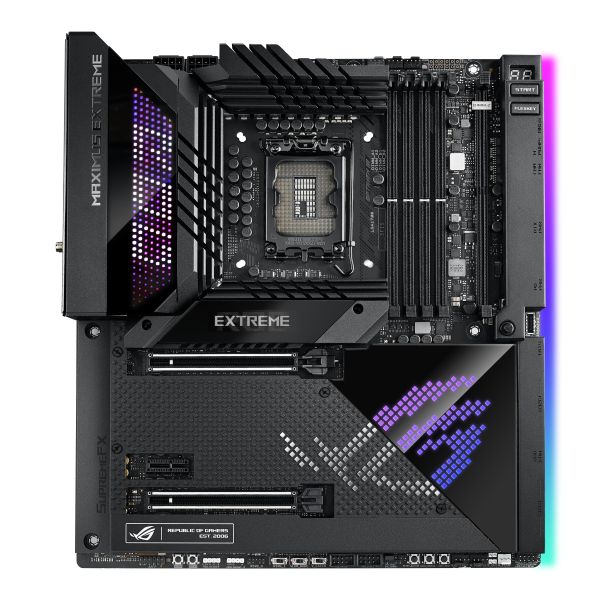

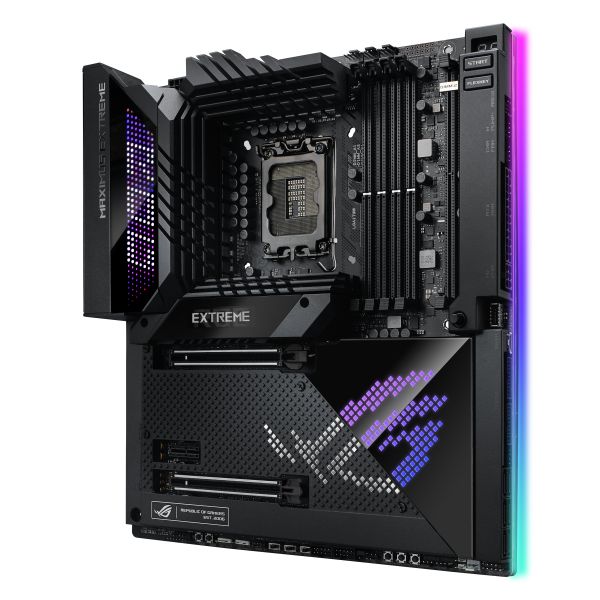

ASUS ROG MAXIMUS Z690 EXTREME Intel Z690 LGA 1700 Verlengd ATX

ASUS ROG MAXIMUS Z690 EXTREME, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR5-SDRAM, 128 GB, DIMM

Niet op voorraad

Fabrikant ASUS
MPN 90MB18H0-M0EAY0
EAN 4711081462743
€ 947,00 excl. BTW
4,5 · 4,0 · Gratis verzending vanaf €250
Omschrijving
ASUS ROG MAXIMUS Z690 EXTREME E-ATX MB
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld foutBedankt voor uw melding!

Er ging iets mis. Probeer het opnieuw.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC-compatibiliteit
Niet-ECC
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde opslagstationinterfaces*
M.2, SATA III

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
2
Aantal SATA III connectors*
6
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
2
EPS power connector (8-pin)
Ja

Aansluitingen achterzijde

Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
7
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1
Aantal USB 3.2 Gen 2.2 Type-C-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten*
2
Aantal HDMI-poorten*
1
S/PDIF-uitgang
Ja
Hoeveelheid Thunderbolt ports
1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Wifi*
Ja
Wifi-standaard
Wi-Fi 6E (802.11ax)
Wi-Fi-standaarden
Wi-Fi 6E (802.11ax)

Kenmerken

Chipset moederbord*
Intel Z690
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
Verlengd ATX
Moederbord chipset familie*
Intel
Type koeling
Vloeistof

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 5.x) sleuven
2
Aantal M.2 (M) slots
5

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
512 Mbit
Clear CMOS knop
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
305 mm
Diepte
277 mm
Hoogte
108 mm

Overige specificaties

Gewicht
2 kg
