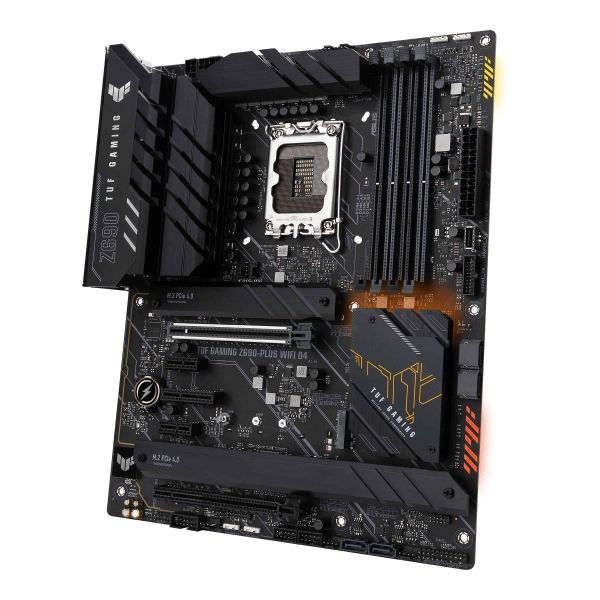

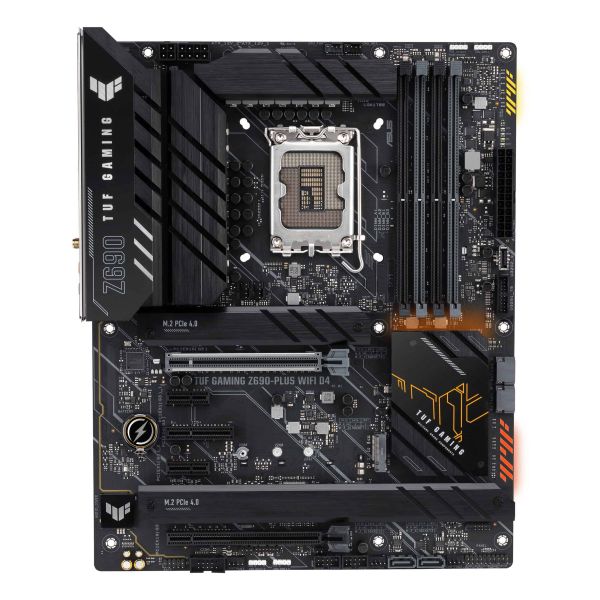

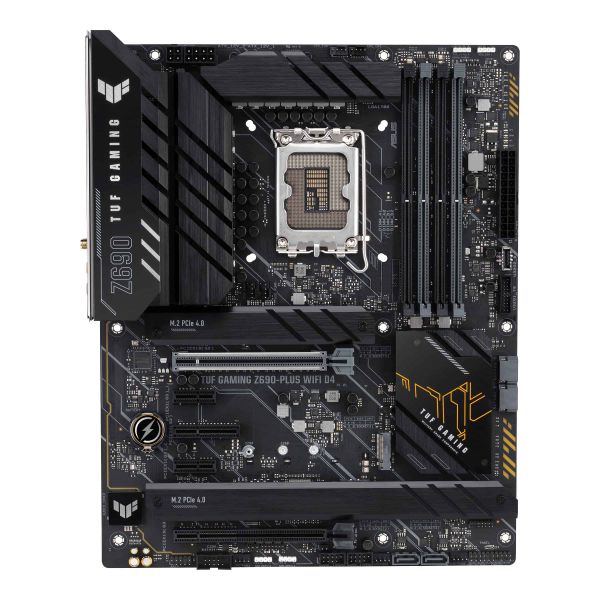

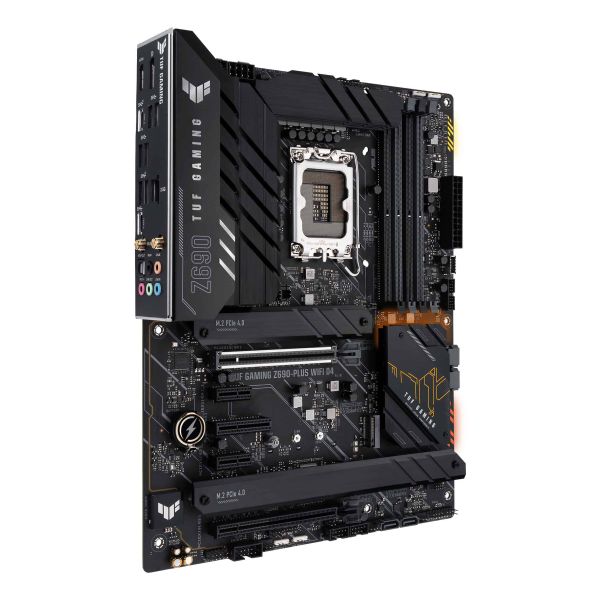

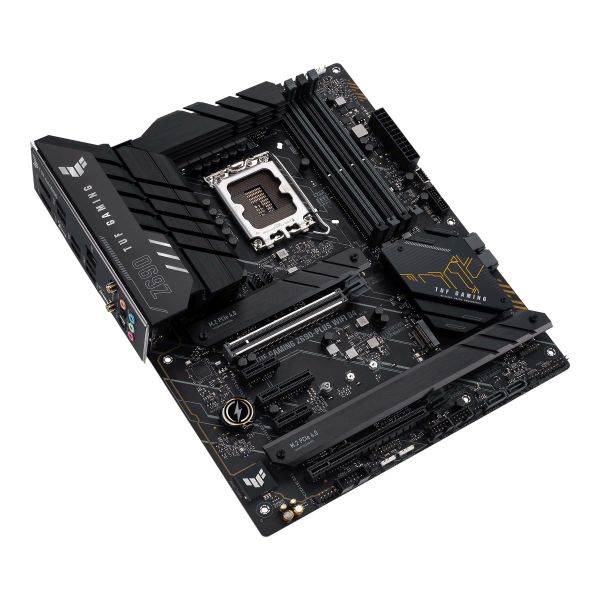

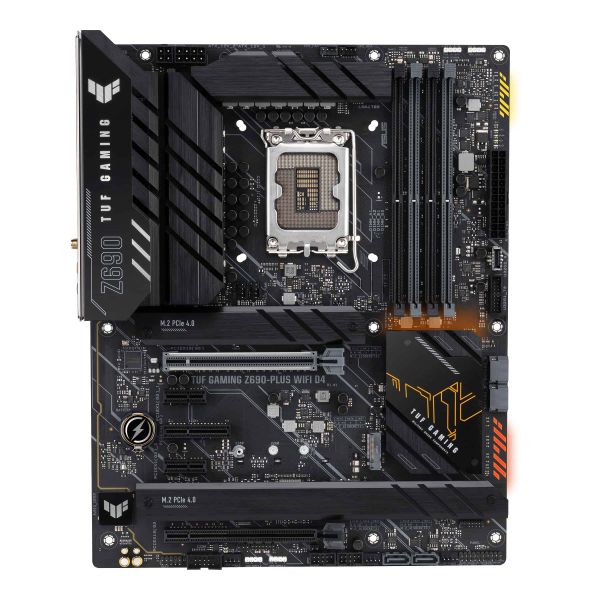

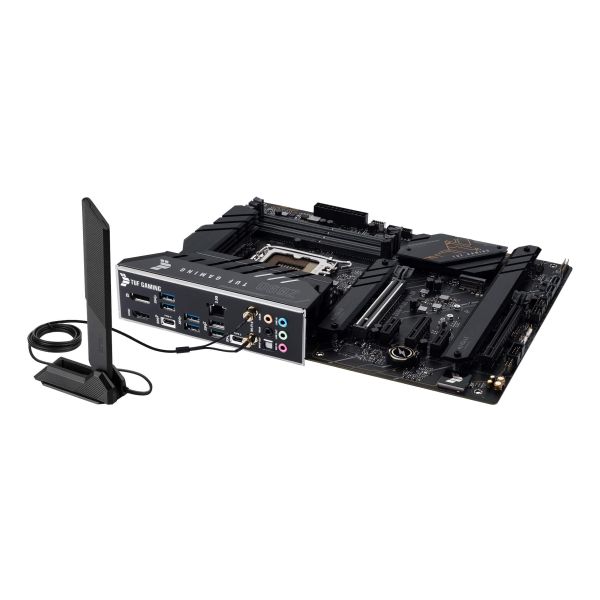

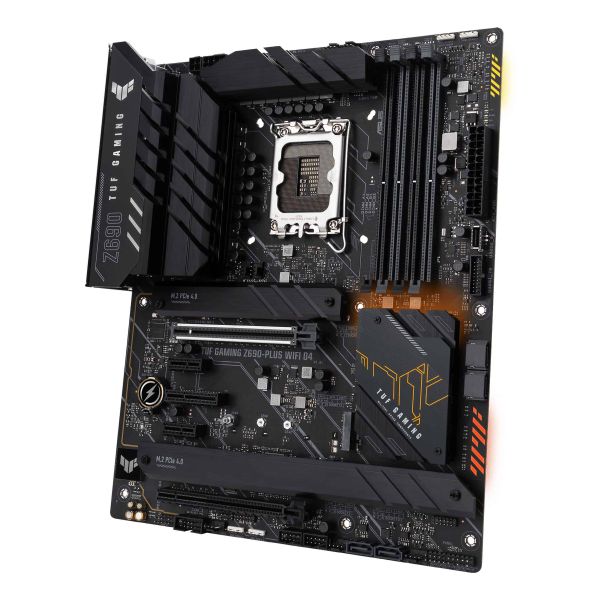

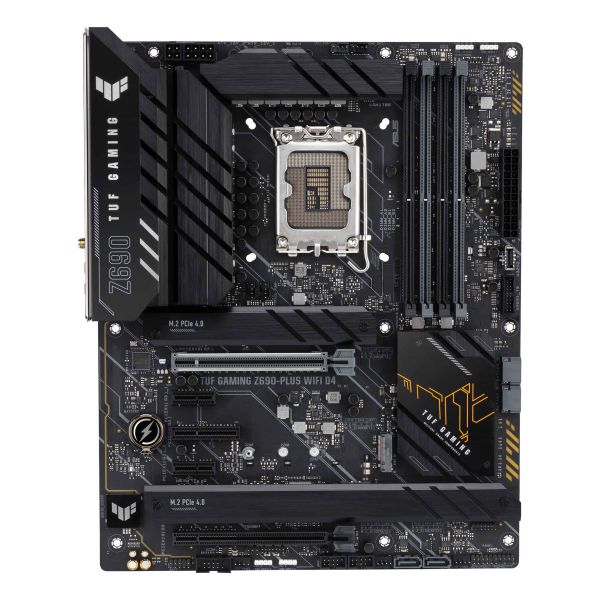

ASUS TUF GAMING Z690-PLUS WIFI D4 Intel Z690 LGA 1700 ATX

ASUS TUF GAMING Z690-PLUS WIFI D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR4-SDRAM, 128 GB, DIMM

Niet op voorraad

Fabrikant ASUS
MPN 90MB18V0-M0EAY0
EAN 4711081438779
€ 278,00 excl. BTW

ASUS TUF GAMING Z690-PLUS WIFI D4 Intel Z690 LGA 1700 ATX

ASUS TUF GAMING Z690-PLUS WIFI D4

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® G

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC-compatibiliteit
Niet-ECC
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5000,5133,5333 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Grafisch

Ondersteuning voor parallel processing*
Niet ondersteund
Ingebouwde grafische adapter
Nee

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
USB 3.2-connectoren (3.1 Gen 2)*
1
Aantal SATA III connectors*
4
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor ventilator van voeding
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
4
Peripheral (Molex) power connectors (4-pin)
1
EPS power connector (8-pin)
Ja
COM aansluitingen
1
Thunderbolt-headers
1
12V vermogen-connector
Ja
RGB LED-aansluitrail
Ja

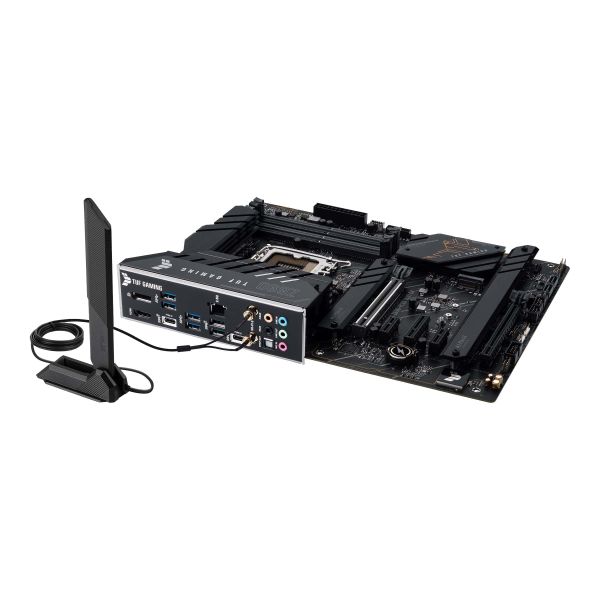

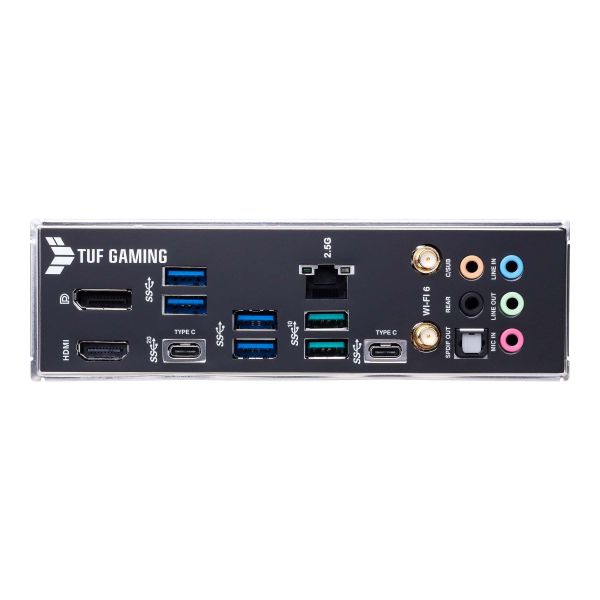

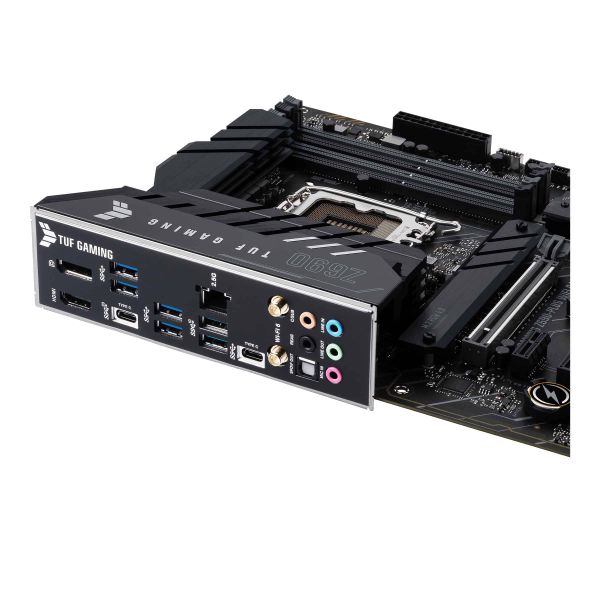

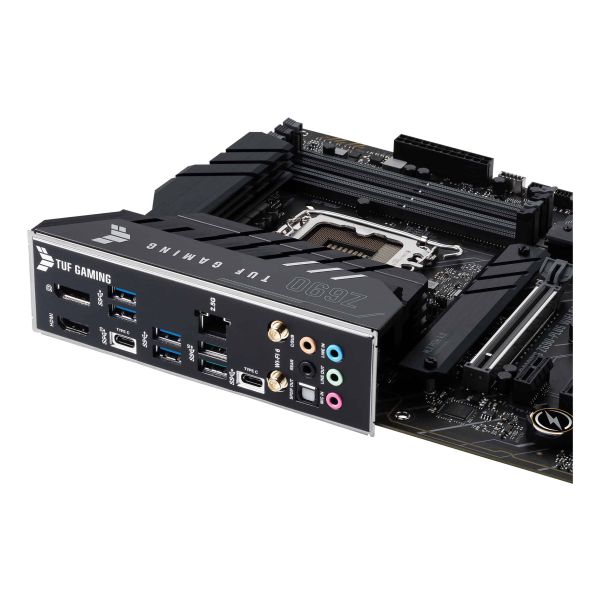

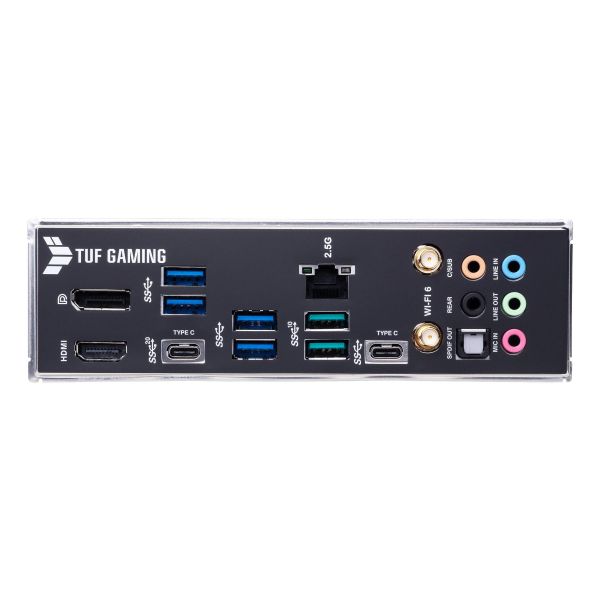

Aansluitingen achterzijde

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C*
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
2
Aantal USB 3.2 Gen 2.2 Type-C-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aantal HDMI-poorten*
1

Aansluitingen achterzijde

HDMI versie
2.1
Aantal DisplayPorts
1
DisplayPort versie
1.4
Hoofdtelefoonuitgangen
1
Microfoon, line-in ingang
Ja
S/PDIF-uitgang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Wifi*
Ja
Wifi-standaard
Wi-Fi 6 (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Ja
Bluetooth-versie
5.2

Kenmerken

Chipset moederbord*
Intel Z690
Audio-uitgangskanalen*
7.1 kanalen
Kleur van het product
Zwart
Component voor*
PC
Moederbord form factor*
ATX
Moederbord chipset familie*
Intel
Ondersteunt Windows
Windows 10, Windows 11

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
2
PCI Express x4 slots
1
PCI Express x16 (Gen 3.x) slots
1
Aantal M.2 (M) slots
4

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
192 Mbit

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
305 mm
Diepte
244 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Meegeleverde drivers
Ja

Overige specificaties

Gewicht
1,32 kg

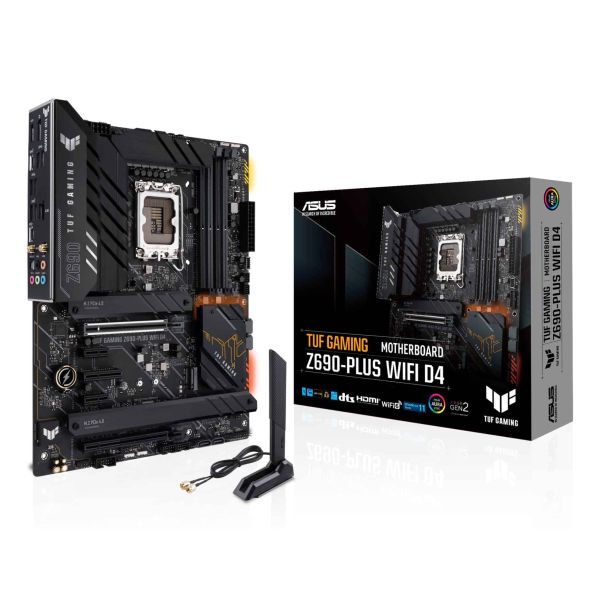

Verpakkingsinhoud
2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antenna 2 x M.2 Rubber Packages 1 x M.2 SSD screw package 1 x TUF GAMING sticker 1 x Support DVD 1 x TUF Certification card 1 x User guide
