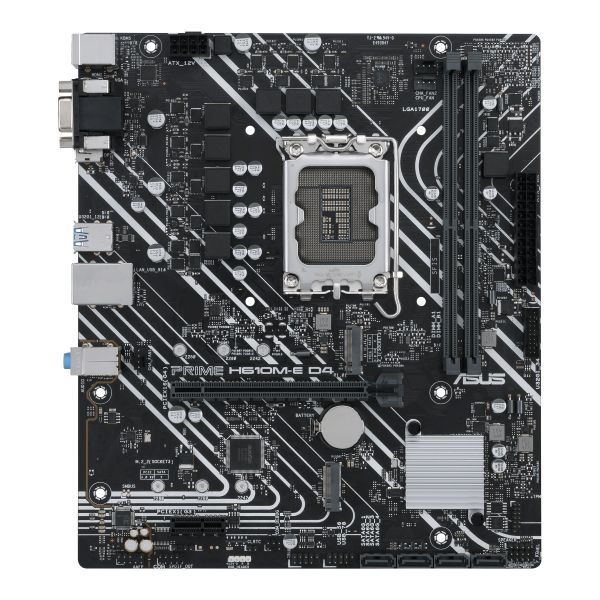

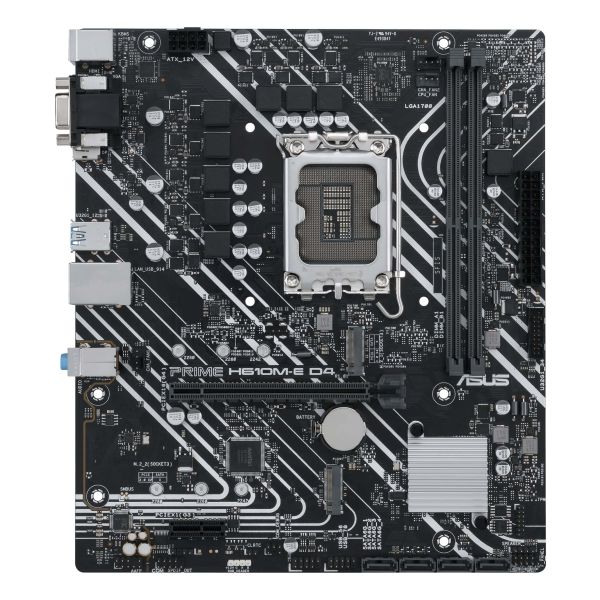

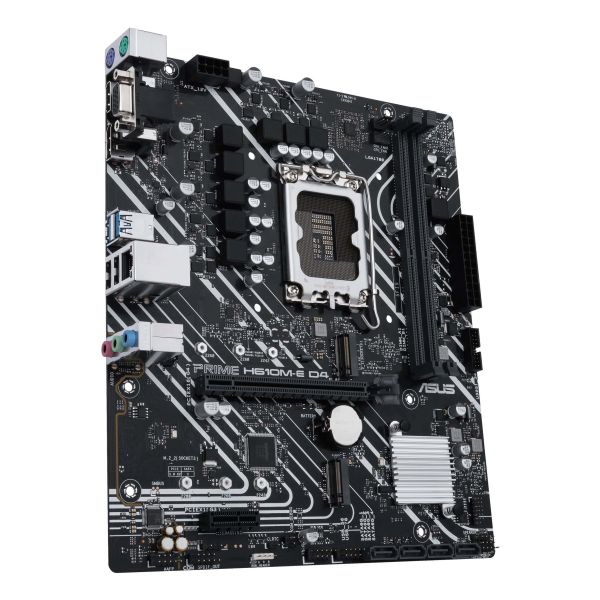

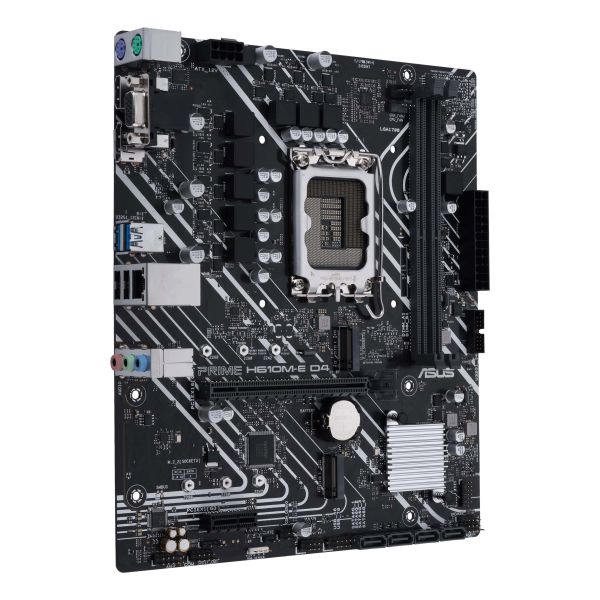

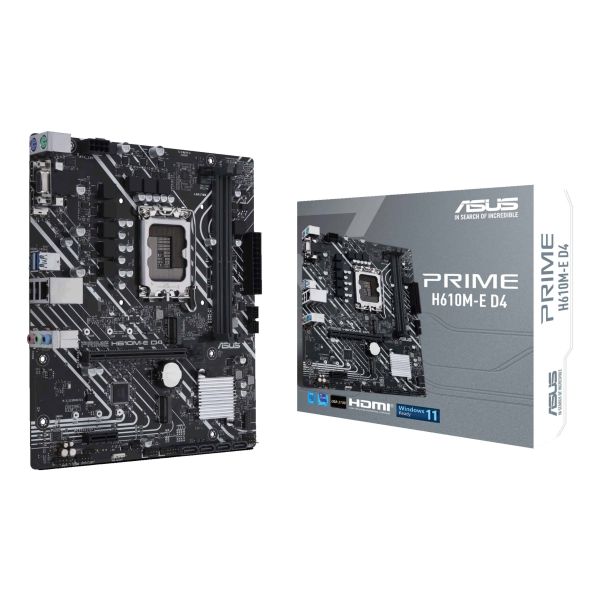

ASUS PRIME H610M-E D4 Intel H610 LGA 1700 micro ATX

ASUS PRIME H610M-E D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR4-SDRAM, 64 GB, DIMM

Niet op voorraad

Fabrikant ASUS
MPN 90MB19N0-M0EAY0
EAN 4711081514787
€ 97,00 excl. BTW

ASUS PRIME H610M-E D4 Intel H610 LGA 1700 micro ATX

ASUS PRIME H610M-E D4

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
Max. aantal SMP-processoren
1

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
2
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC-compatibiliteit
Niet-ECC
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200 MHz
Maximum intern geheugen*
64 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA

Grafisch

Aantal displays ondersteund
3

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
Aantal SATA III connectors*
4
S/PDIF uitgang
Ja
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
2
EPS power connector (8-pin)
Ja
COM aansluitingen
1
TPM connector
Ja
12V vermogen-connector
Ja
RGB LED-aansluitrail
Ja

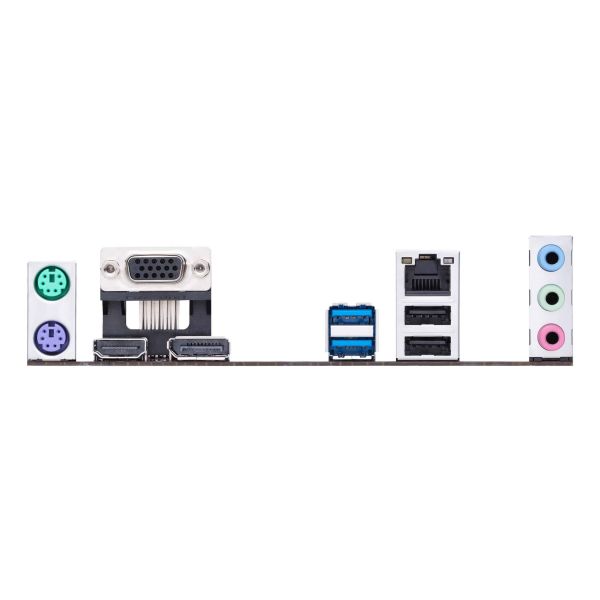

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
1
PS/2 poort(en)
2

Aansluitingen achterzijde

VGA (D-Sub)poort(en)*
1
Aantal HDMI-poorten*
1
HDMI versie
2.1
Aantal DisplayPorts
1
DisplayPort versie
1.4
Hoofdtelefoonuitgangen
1
Microfoon, line-in ingang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
Wifi*
Nee

Kenmerken

Chipset moederbord*
Intel H610
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel
Ondersteunt Windows
Windows 10 x64, Windows 11 x64

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) sleuven
1
Aantal M.2 (M) slots
2

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
244 mm
Diepte
211 mm
Hoogte
51 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Meegeleverde drivers
Ja

Overige specificaties

Gewicht
842 g
