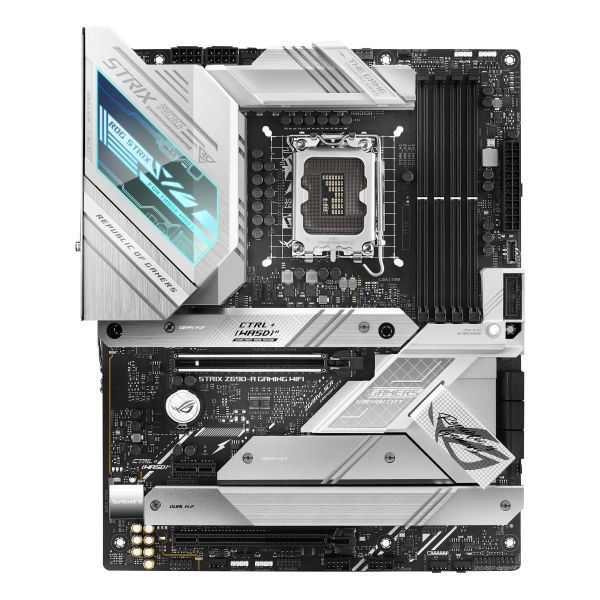

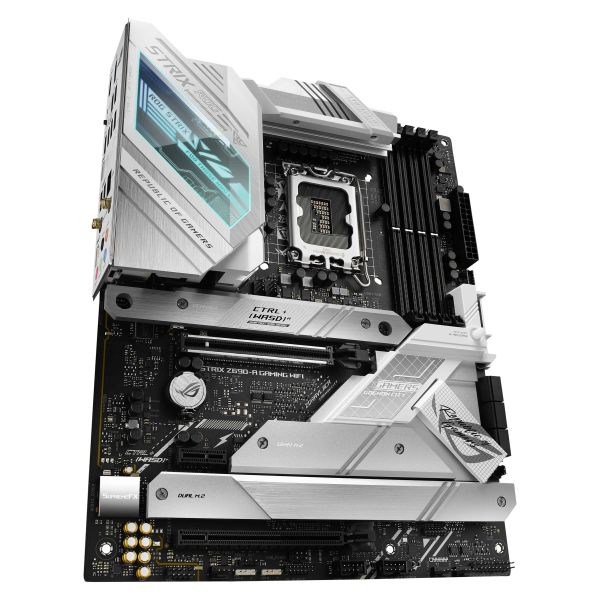

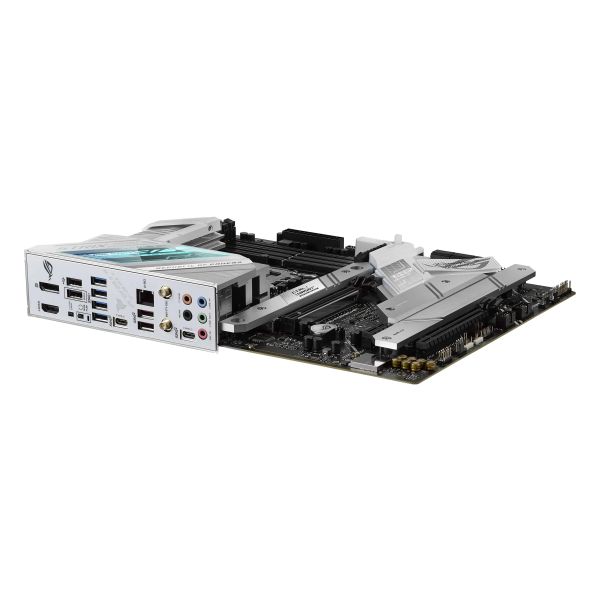

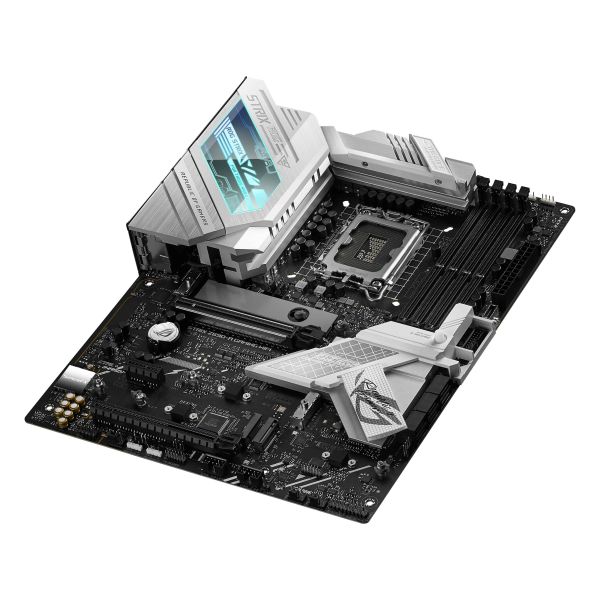

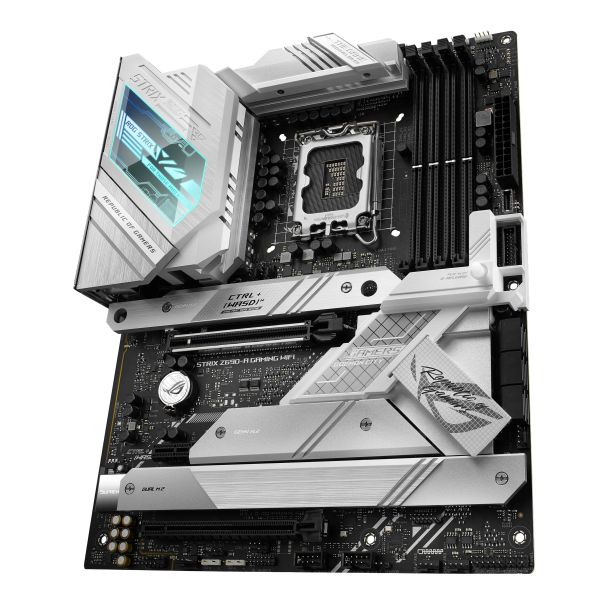

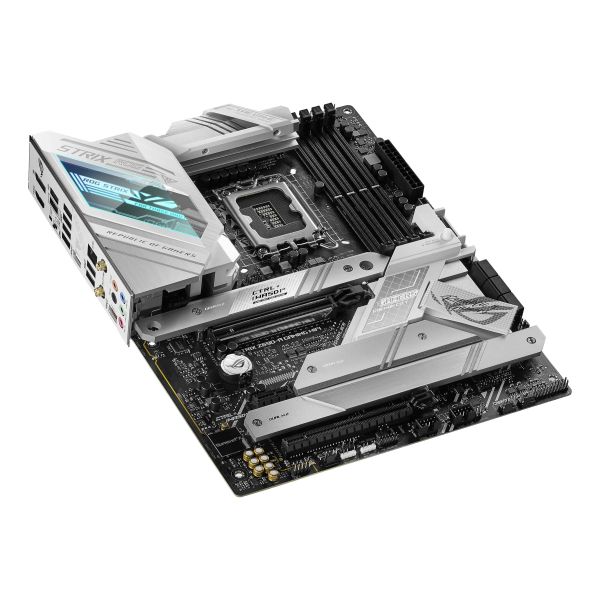

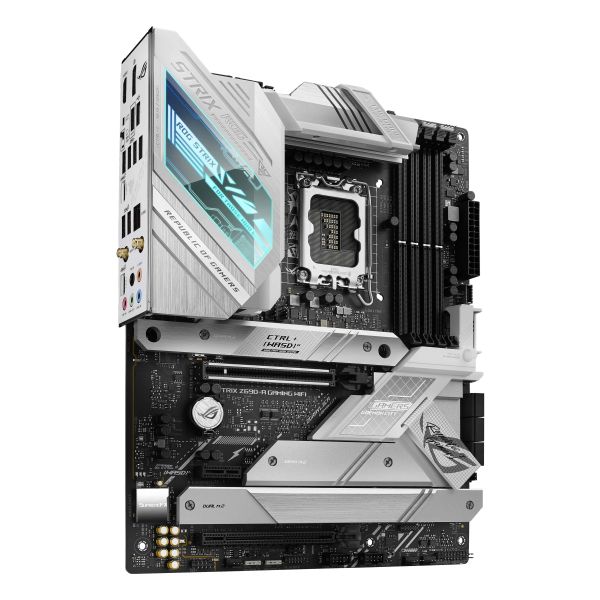

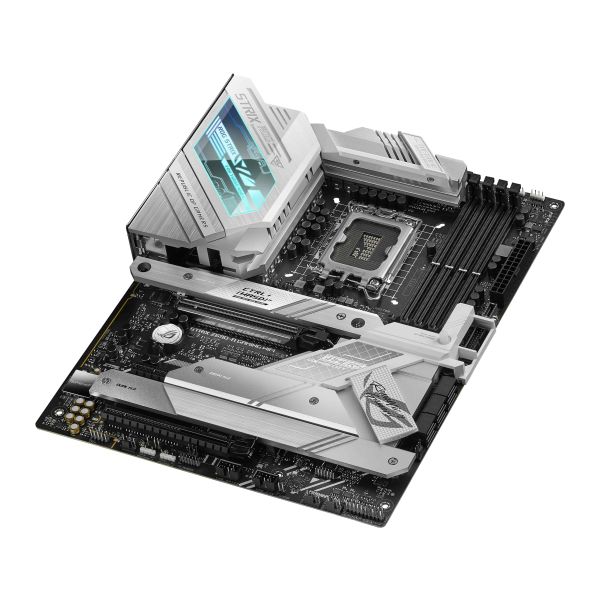

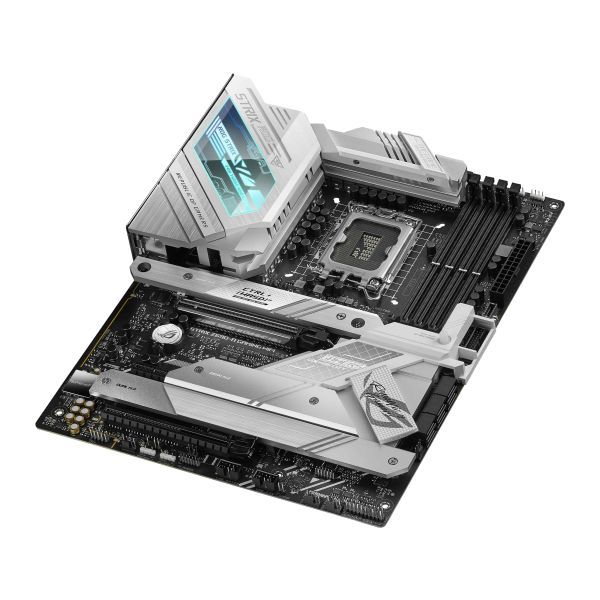

ASUS ROG STRIX Z690-A GAMING WIFI Intel Z690 LGA 1700 ATX

ASUS ROG STRIX Z690-A GAMING WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR5-SDRAM, 128 GB, DIMM

Niet op voorraad

Fabrikant ASUS
MPN 90MB1AP0-M0EAY0
EAN 4711081682110
€ 340,00 excl. BTW

ASUS ROG STRIX Z690-A GAMING WIFI Intel Z690 LGA 1700 ATX

ASUS ROG STRIX Z690-A GAMING WIFI//LGA1700 MB

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® G

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC-compatibiliteit
Niet-ECC
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
USB 3.2-connectoren (3.1 Gen 2)*
1
Aantal SATA III connectors*
6
S/PDIF uitgang
Ja
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
5
Chassis intrusion aansluiting
Ja
EPS power connector (8-pin)
Ja
Thunderbolt-headers
1
RGB LED-aansluitrail
Ja

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1
Aantal USB 3.2 Gen 2.2 Type-C-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aantal HDMI-poorten*
1
HDMI versie
2.1

Aansluitingen achterzijde

Aantal DisplayPorts
1
DisplayPort versie
1.4
Hoofdtelefoonuitgangen
1
Microfoon, line-in ingang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Wifi*
Ja
Wifi-standaard
Wi-Fi 6E (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth
Ja
Bluetooth-versie
5.2

Kenmerken

Chipset moederbord*
Intel Z690
Audiochip
Realtek ALC4080
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
ATX
Moederbord chipset familie*
Intel
Type koeling
Actief
Ondersteunt Windows
Windows 10 x64, Windows 11 x64

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 5.x) sleuven
1
Aantal M.2 (M) slots
4

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
256 Mbit
Clear CMOS knop
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
305 mm
Diepte
244 mm
Hoogte
70 mm

Overige specificaties

Gewicht
1,03 kg
