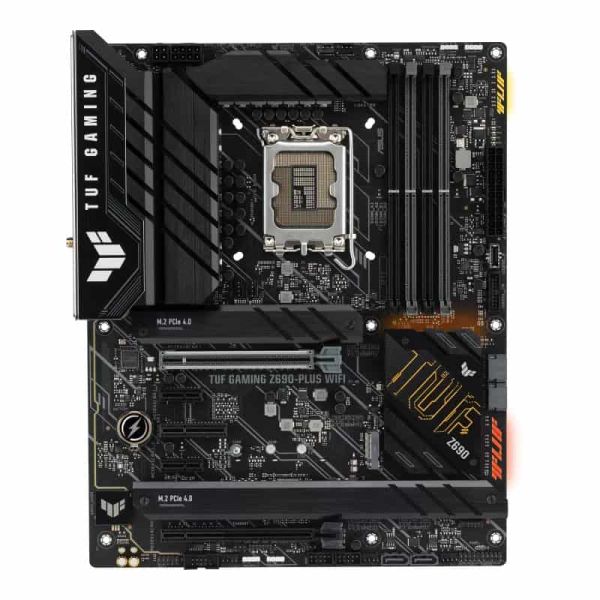

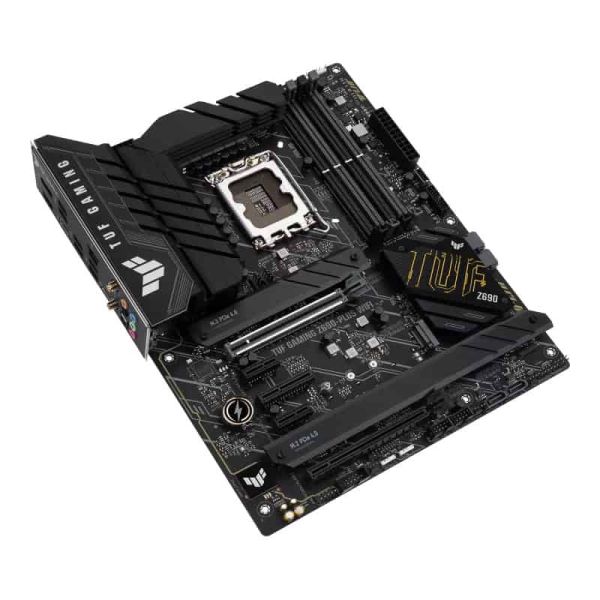

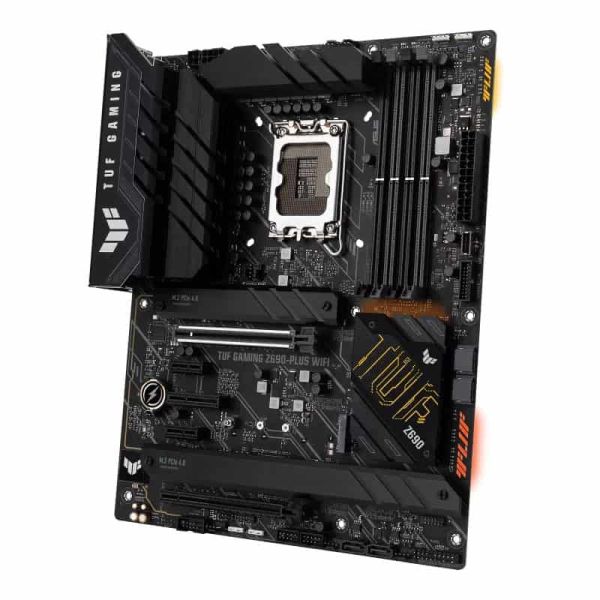

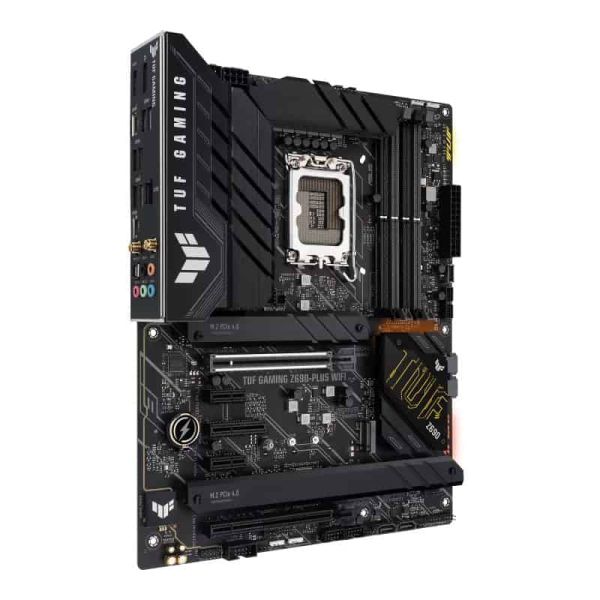

ASUS TUF GAMING Z690-PLUS WIFI Intel Z690 LGA 1700 ATX

ASUS TUF GAMING Z690-PLUS WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 128 GB

Niet op voorraad

Fabrikant ASUS
MPN 90MB1AW0-M0EAY0
EAN 4711081646235
€ 444,00 excl. BTW

ASUS TUF GAMING Z690-PLUS WIFI Intel Z690 LGA 1700 ATX

ASUS MB ASUS TUF GAMING Z690-PLUS WIFI (Intel,1700,DDR5,ATX)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Pentium® Gold
Supported processor sockets
LGA 1700

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
SSD
Ondersteunde opslagstationinterfaces*
M.2, NVMe, PCI Express 4.0, SATA, SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Grafisch

Ondersteuning voor parallel processing*
Niet ondersteund

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
USB 3.2-connectoren (3.1 Gen 2)*
1
Aantal SATA III connectors*
4
Aansluiting voor audiopaneel aan voorzijde
Ja
Aansluiting voor CPU koeler
Ja
Chassis intrusion aansluiting
Ja
Thunderbolt-headers
1
12V vermogen-connector
Ja

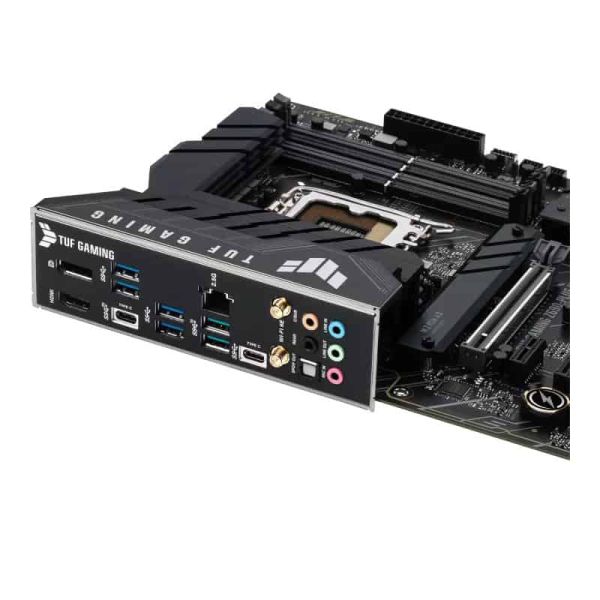

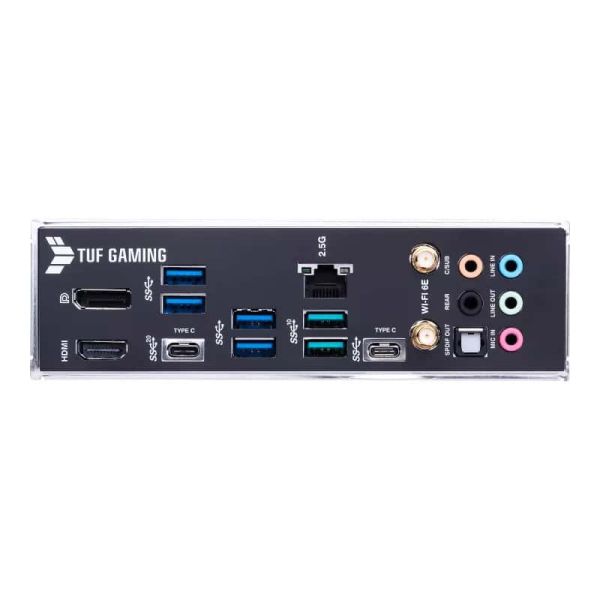

Aansluitingen achterzijde

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C*
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
2
Aantal USB 3.2 Gen 2.2 Type-C-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten*
1

Aansluitingen achterzijde

Aantal HDMI-poorten*
1
Aantal DisplayPorts
1
S/PDIF-uitgang
Ja
Aantal COM-poorten
1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Wifi*
Ja
Wifi-standaard
Wi-Fi 6E (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth
Ja
Bluetooth-versie
5.2

Kenmerken

Chipset moederbord*
Intel Z690
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
ATX
Moederbord chipset familie*
Intel
Ondersteunt Windows
Windows 10, Windows 11

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 5.x) sleuven
1

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
192 Mbit

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
305 mm
Diepte
244 mm
Hoogte
71 mm

Overige specificaties

Gewicht
1,43 kg
Speciale eigenschappen
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
