ASUS PRIME X670E-PRO WIFI, AMD, Socket AM5, DDR5-SDRAM, 128 GB, DIMM, Dubbelkanaals

Ruim op voorraad

Fabrikant ASUS
MPN 90MB1BL0-M0EAY0
EAN 4711081905660

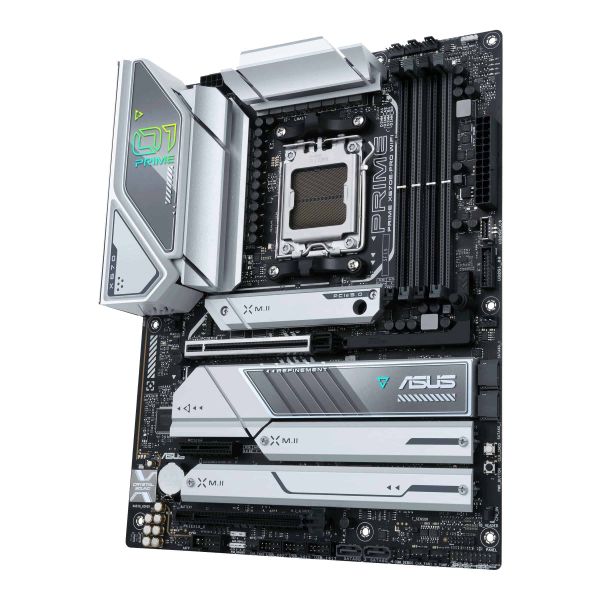

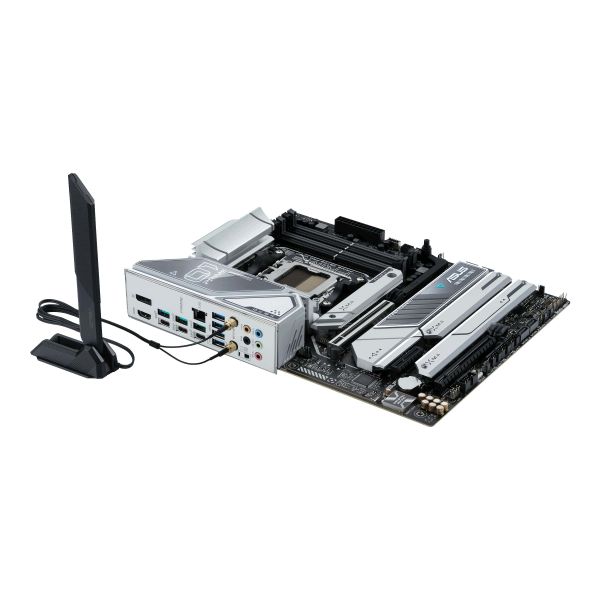

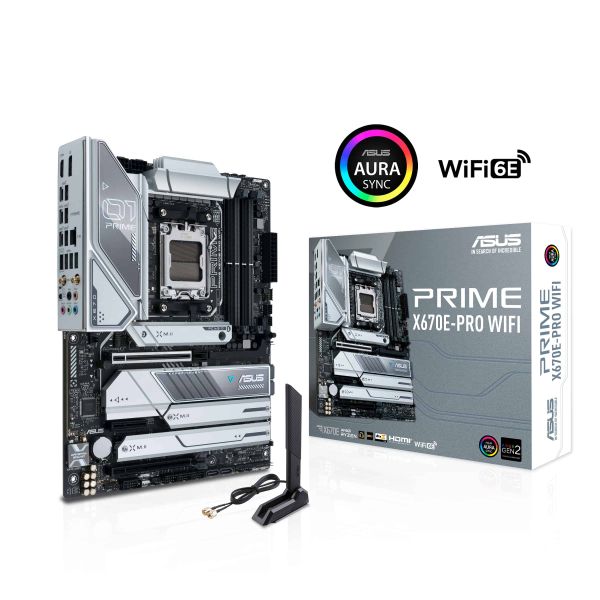

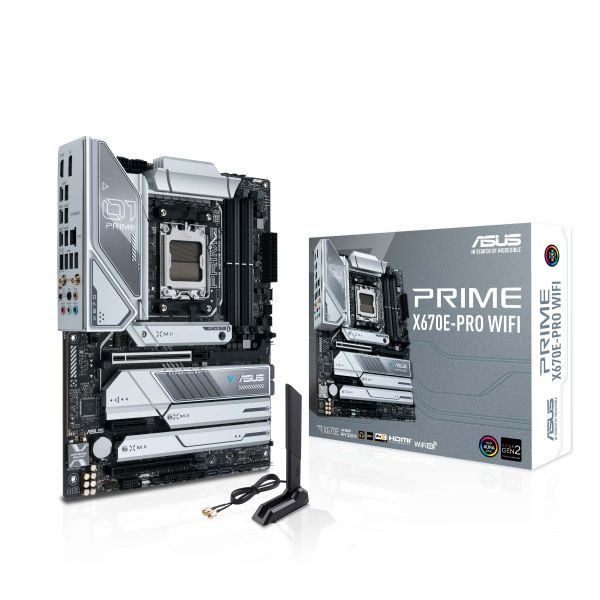

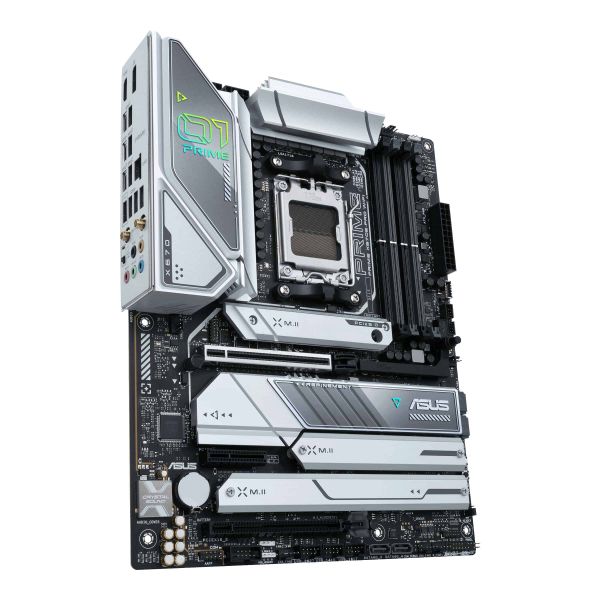

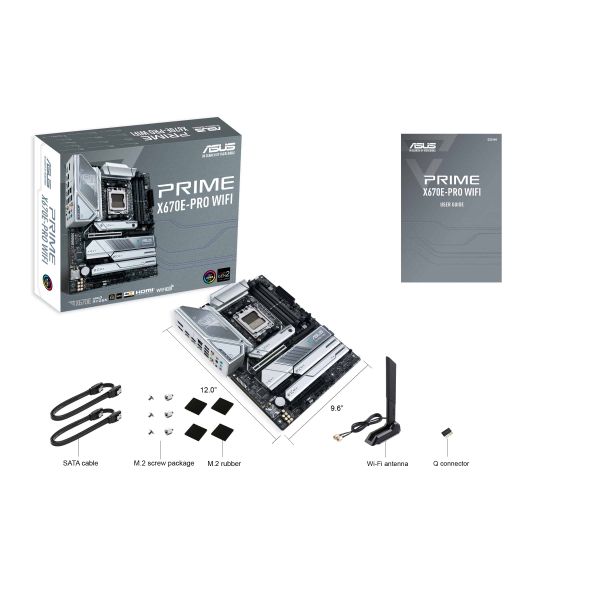

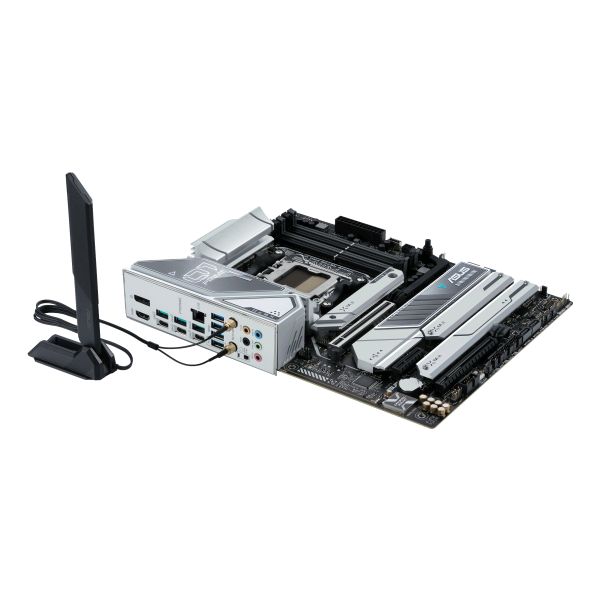

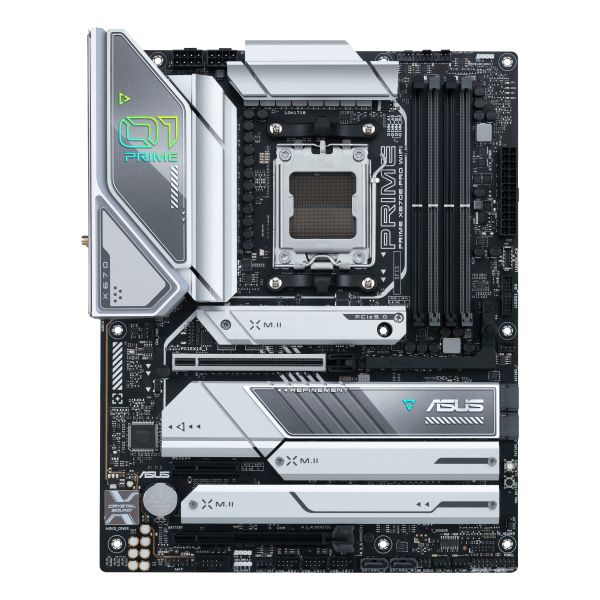

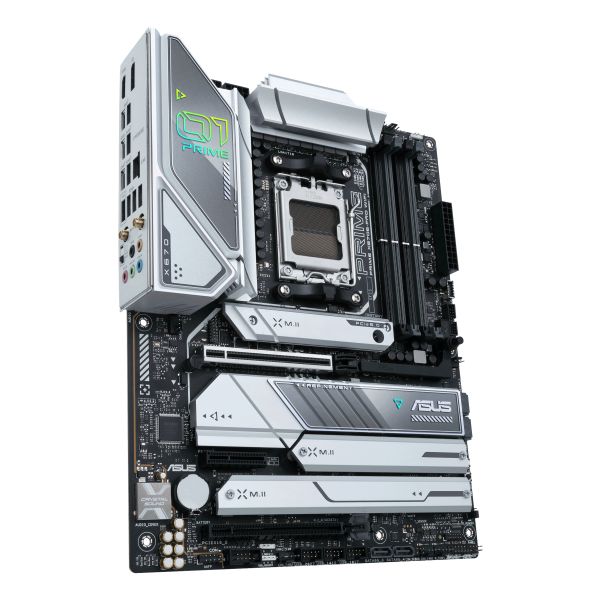

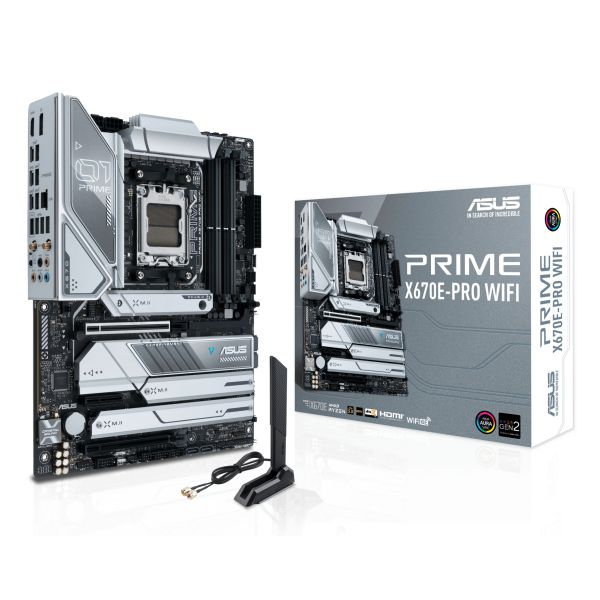

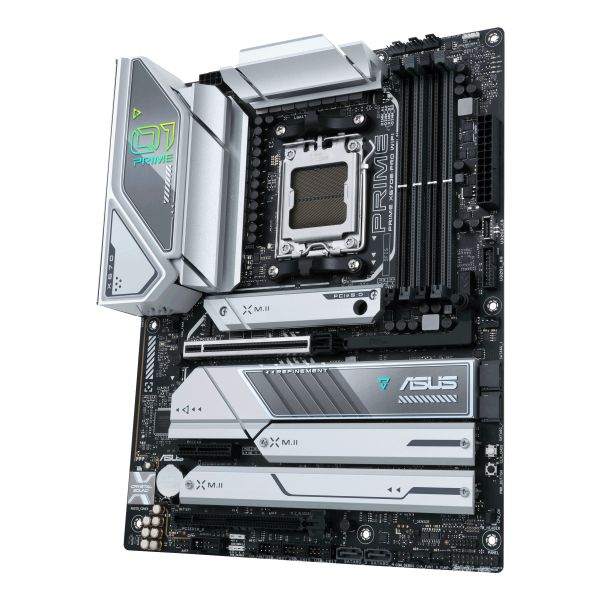

ASUS PRIME X670E-PRO WIFI AMD X670 Socket AM5 ATX

PRIME X670E-PRO WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of the latest AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME X670E-PRO WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

The ASUS PRIME X670E-PRO WIFI offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
AMD
Processor socket*
Socket AM5

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC
Ja
Non-ECC
Ja
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA III
Aantal storage drives ondersteund
8

Interne aansluitingen

USB 2.0 aansluitingen*
3
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
USB 3.2-connectoren (3.1 Gen 2)*
1
Aantal SATA III connectors*
4
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
4
EPS power connector (8-pin)
Ja
COM aansluitingen
1
TPM connector
Ja
Thunderbolt-headers
1

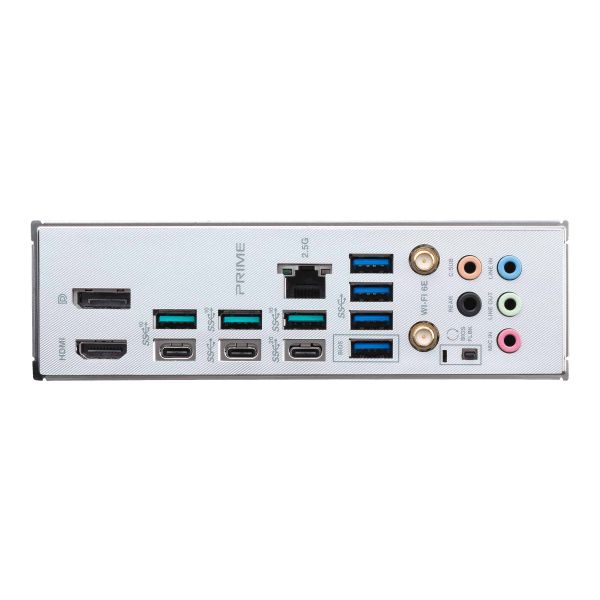

Aansluitingen achterzijde

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C*
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
3
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1
Aantal USB 3.2 Gen 2.2 Type-C-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aantal HDMI-poorten*
1
Aantal DisplayPorts
1

Aansluitingen achterzijde

Lijningang
Ja
Microfoon, line-in ingang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wifi*
Ja
Wifi-standaard
Wi-Fi 6E (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth
Ja
Bluetooth-versie
5.2

Kenmerken

Chipset moederbord*
AMD X670
Audiochip
Realtek S1220A
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
ATX
Moederbord chipset familie*
AMD
Ondersteunt Windows
Windows 10 x64, Windows 11 x64

Uitbreidingsmodules

PCI Express x4 (Gen 4.x) sleuven
1
PCI Express x16 (Gen 4.x) sleuven
1
PCI Express x16 (Gen 5.x) sleuven
1
Aantal M.2 (M) slots
4

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
256 Mbit
Clear CMOS knop
Ja

Verpakking

Breedte verpakking
338 mm
Diepte verpakking
68 mm
Hoogte verpakking
273 mm
Gewicht verpakking
2,55 kg

Gewicht en omvang

Breedte
305 mm
Diepte
244 mm

Overige specificaties

Gewicht
1,7 kg
