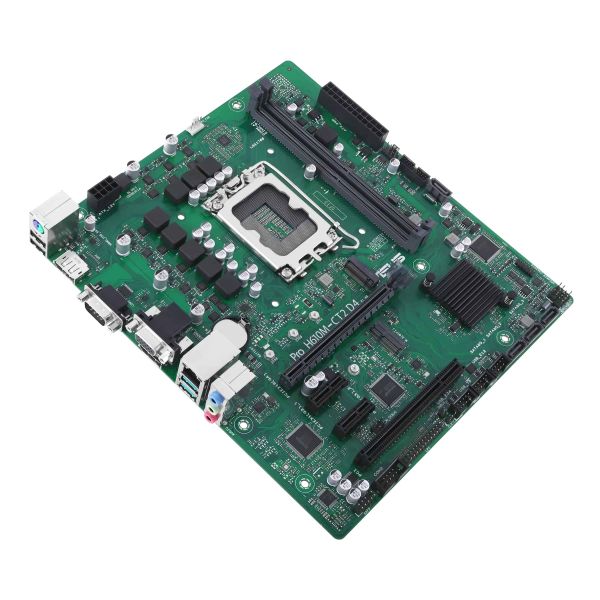

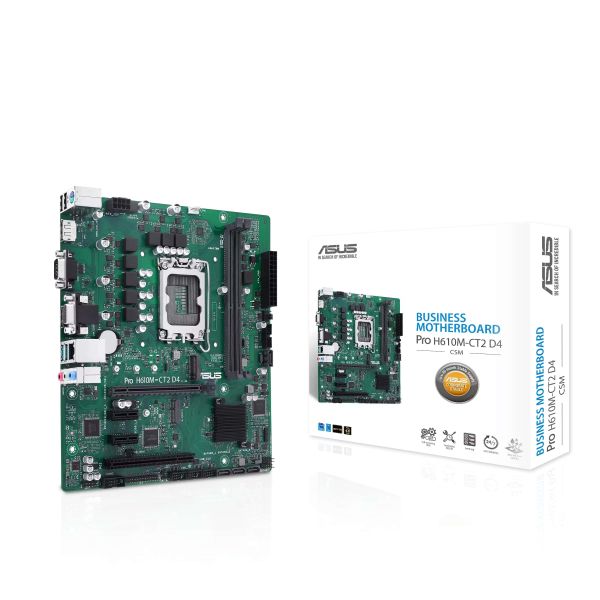

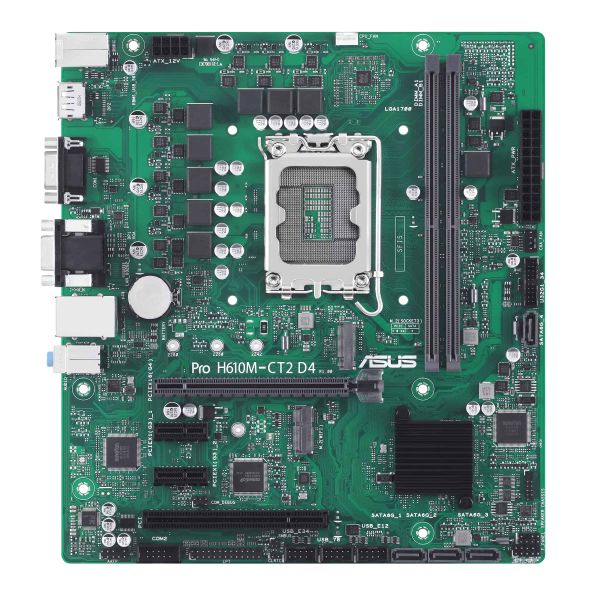

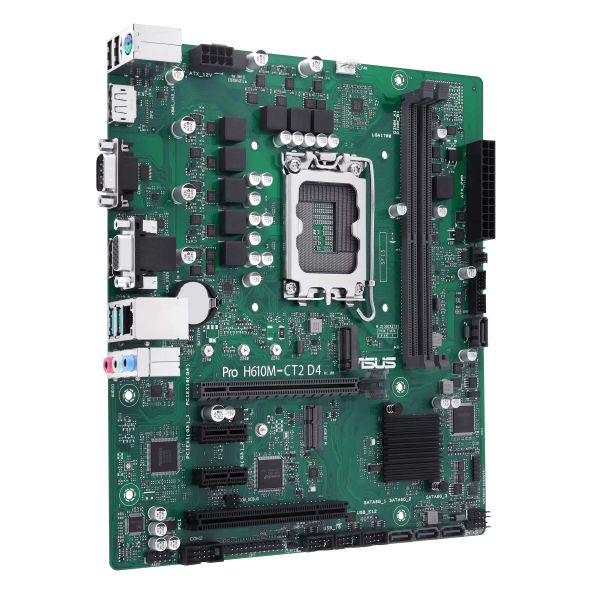

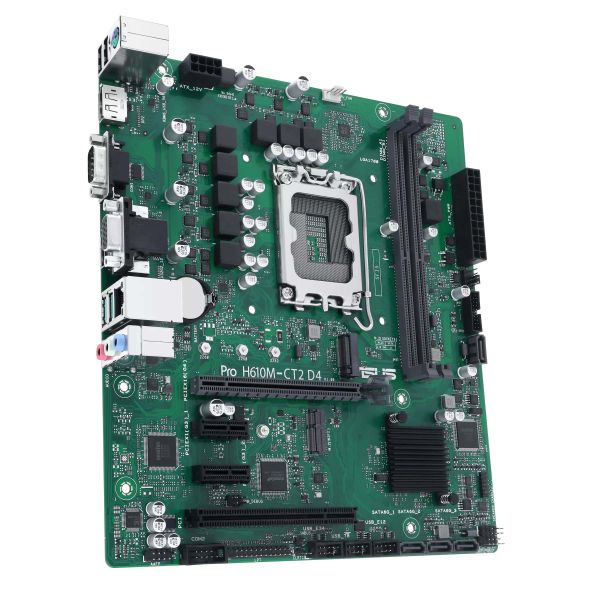

ASUS H610M-CT2 D4-CSM Intel H610 LGA 1700 micro ATX

ASUS H610M-CT2 D4-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, LGA 1700, DDR4-SDRAM, 64 GB

Niet op voorraad

Fabrikant ASUS
MPN 90MB1EB0-M0EAYC
EAN 4711387309902
€ 268,00 excl. BTW

ASUS H610M-CT2 D4-CSM Intel H610 LGA 1700 micro ATX

ASUS MB ASUS PRO H610M-CT2 D4-CSM (Intel,1700,DDR4,mATX)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Max. aantal SMP-processoren
1
Supported processor sockets
LGA 1700

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
2
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200 MHz
Ondersteunde geheugenkloksnelheid (max)
3200 MHz
Maximum intern geheugen*
64 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA III
Maximum aantal HDD's per behuizing
4
Aantal storage drives ondersteund
5

Grafisch

Ondersteuning voor parallel processing*
Niet ondersteund

Interne aansluitingen

USB 2.0 aansluitingen*
3
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
Aantal SATA III connectors*
4
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
1
Chassis intrusion aansluiting
Ja
EPS power connector (8-pin)
Ja
COM aansluitingen
1
12V vermogen-connector
Ja

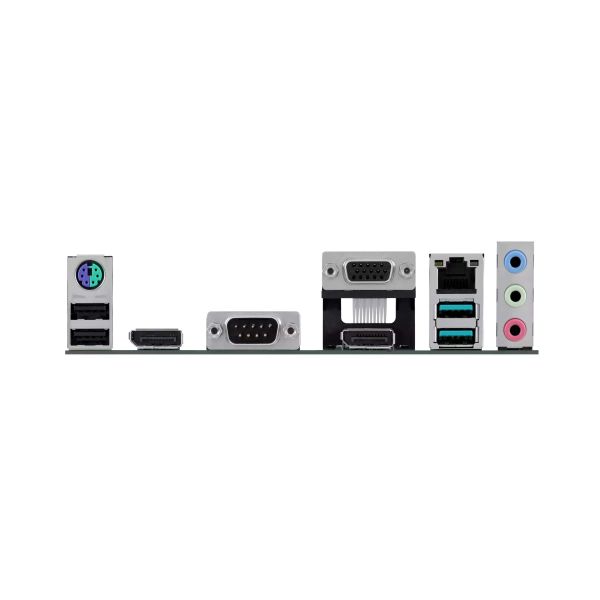

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
1
PS/2 poort(en)
1

Aansluitingen achterzijde

VGA (D-Sub)poort(en)*
1
Aantal DisplayPorts
2
DisplayPort versie
1.4
Hoofdtelefoonuitgangen
1
Lijningang
Ja
Microfoon, line-in ingang
Ja
Aantal COM-poorten
1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
Wifi*
Nee

Kenmerken

Chipset moederbord*
Intel H610
Audio-uitgangskanalen*
7.1 kanalen
Kleur van het product
Groen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel
Type koeling
Passief
Type stroombron
ATX
Ondersteunt Windows
Windows 10 x64, Windows 11 x64

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) sleuven
1
PCI-slots
1
Aantal M.2 (M) slots
1

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit

Gewicht en omvang

Breedte
244 mm
Diepte
211 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Gebruiksaanwijzing
Ja

Overige specificaties

Aantal M.2 € slots
1
